The long-term performance of a solar energy system depends on more than just its panels and inverters. The unseen foundation—the photovoltaic (PV) racking—is what ensures the system survives environmental stresses. Wind and snow exert immense forces that can lead to catastrophic failures if not properly accounted for. Correct PV racking engineering is not an area for compromise; it is a critical investment in the safety, durability, and financial return of your solar asset.
This guide provides a detailed overview of the core principles behind PV racking wind and snow load analysis. Understanding these forces and how to design for them is fundamental to building a resilient and productive solar installation that lasts for decades.
Understanding Wind Loads on Solar Arrays
Wind is a dynamic and complex force. As it flows over and around a solar array, it creates areas of both positive pressure (pushing) and negative pressure (lifting). The airfoil-like shape of a tilted solar panel can generate significant aerodynamic uplift, a force that actively tries to pull the array from its mounting. Proper wind load calculation is essential to counteract these forces.
Key Factors in Wind Load Calculation
Several variables determine the total wind force a solar array will experience. According to standards like the American Society of Civil Engineers' ASCE 7, engineers must consider multiple site-specific factors. As noted in a summary of ASCE 7-16 provisions, new guidance has been added specifically for solar panels, which previously required designers to adapt rules from other parts of the standard, sometimes leading to unconservative designs.
- Basic Wind Speed: This is the foundational metric, determined from regional climate data that maps 3-second gust speeds. It varies significantly by geographic location, with coastal and hurricane-prone areas having much higher values.
- Exposure Category: This classifies the surrounding terrain. An array in an open field (Exposure C) will experience much higher wind forces than one in a dense urban area (Exposure B), where buildings and other obstacles disrupt wind flow.
- Array Height and Geometry: Wind speed increases with height. The array's tilt angle, size, and elevation above the roof or ground directly influence the pressure coefficients used in calculations.
Translating Wind Speed to Pressure and Force
Engineers use established formulas to convert wind speed into pressure, measured in pounds per square foot (psf). This pressure is then applied to the array's surface area to calculate the final forces: uplift, downward pressure (drag), and lateral (shear) force. The highest pressures are often concentrated at the corners and edges of an array, requiring careful attention to component selection and layout in these zones.
The Role of Wind Tunnel Testing
While standards provide the framework for calculations, physical validation is crucial for innovative racking designs. Many manufacturers use boundary layer wind tunnel testing to precisely measure the pressures on their systems under various conditions. According to guidance from Portland's Bureau of Development Services, wind loads can be determined using ASCE 7 or through wind tunnel tests that follow specific protocols like ASCE 49. This empirical data helps create accurate load tables for installers and ensures the Racking System Wind Resistance meets real-world demands.
Designing for Snow Loads: More Than Just Weight
Snow load is primarily a static, downward force, but its behavior is more complex than simple accumulation. Drifting, sliding, and the formation of ice can create unbalanced loads that stress racking components in unexpected ways. A robust snow load design anticipates these scenarios to prevent structural failure.
Calculating Ground and Roof Snow Loads
The process begins with the ground snow load, a value provided by local building authorities based on historical snowfall data. This value is then adjusted for factors like roof slope, thermal properties, and exposure to determine the actual design snow load for the roof. As one guide on the topic explains, the presence of PV panels can alter snow accumulation patterns, creating obstructions that lead to drifts. This is a critical consideration, especially for older buildings not designed for such load concentrations.
The Impact of Tilt Angle and Panel Surface
The tilt of a solar array has a major influence on snow accumulation. Steeper angles (typically over 30 degrees) encourage snow to shed naturally, reducing the sustained load on the structure. However, this shedding can be uneven. A partial slide can result in an unbalanced load, where one part of the array is heavily loaded while another is clear, creating torsional stress on the mounting rails. The slick surface of solar panels can facilitate this sliding, which must be accounted for in the structural design.
Mitigating Risks from Sliding Snow and Ice Dams
A key safety aspect of snow load design is managing the snow that slides off the array. Large sheets of snow and ice can pose a significant hazard to people and property below. Proper placement of the array, away from doorways and walkways, is essential. Additionally, in certain roof configurations, the heat difference around the array can contribute to ice dam formation, which can increase loads and cause water intrusion issues if not managed.
The Structural Core: PV Racking System Components
The racking system creates a continuous load path, transferring the wind and snow forces from the solar panels down to the building structure or ground foundation. Every component in this path must be engineered to handle the calculated loads without failure.

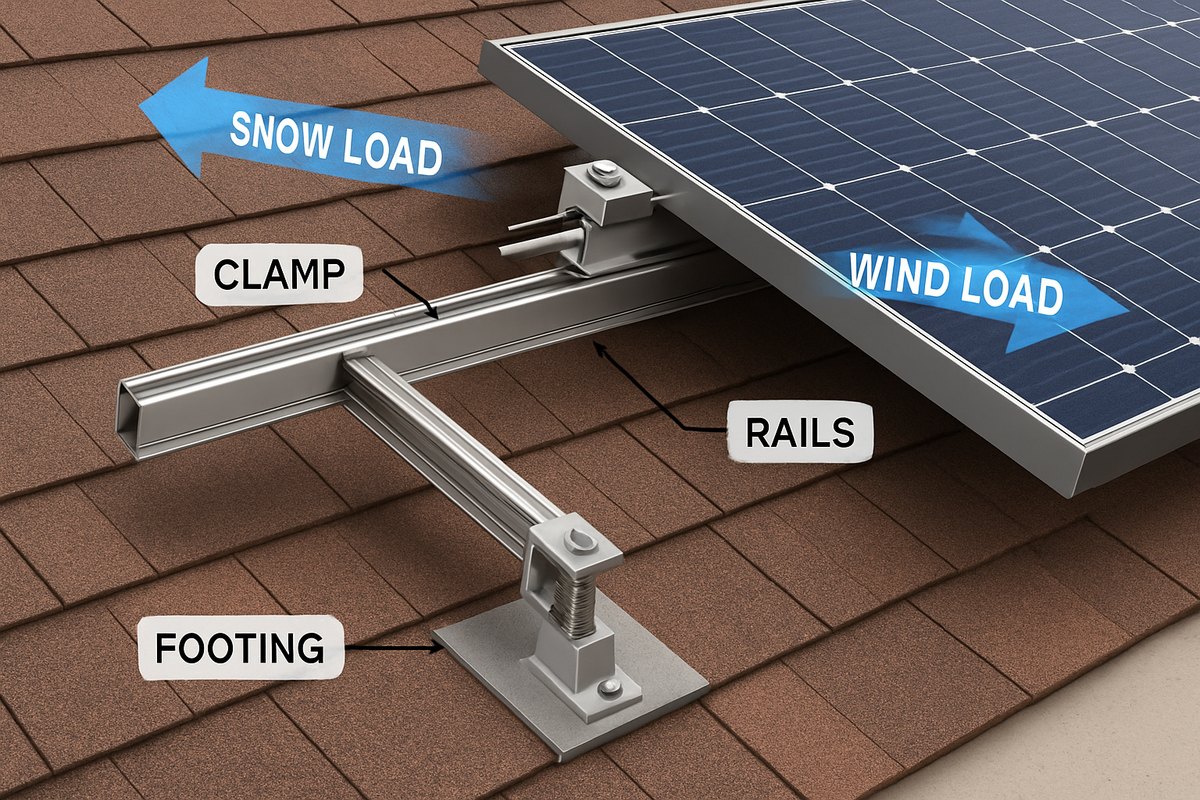

Rails, Clamps, and Fasteners: The Load Path
Forces are first absorbed by the solar panel frame and transferred via clamps to the mounting rails. These rails span between attachment points, and their strength and spacing are critical to prevent excessive bending or failure. The fasteners—bolts, screws, and hardware—that hold the system together are arguably the most critical components. Using properly rated hardware is non-negotiable for a safe and secure system.
Attachment and Mounting: Securing the Foundation
The method of attachment is specific to the mounting surface. On pitched roofs, installers must secure mounts directly to structural rafters and use appropriate flashing to maintain the roof's waterproof integrity. On flat roofs, ballasted systems use weight to hold the array down, while mechanically attached systems use penetrating anchors. For ground mounts, foundations like driven piles or concrete piers provide the necessary resistance to uplift and overturning forces.
| Mounting Type | Primary Load Challenge | Common Solution |
|---|---|---|
| Pitched Roof | Uplift from Wind | Direct structural attachment with lag bolts |
| Flat Roof | Uplift and Sliding | Ballasted trays or mechanical anchors |
| Ground Mount | Overturning and Uplift | Concrete piers or driven piles |
Integrating System Performance with Structural Design
A structurally sound racking system is directly linked to the solar array's energy production and the overall return on investment. A system that fails is a system that produces no power and incurs significant repair costs.
How Structural Stability Impacts Energy Production
A compromised or failed racking system results in immediate downtime and lost energy generation. Furthermore, excessive flex or vibration in an inadequately designed system can contribute to microcracks in solar cells over time, degrading panel performance long before a catastrophic failure occurs. Proper PV racking engineering ensures the system remains stable and operates optimally throughout its service life.
The Connection to Energy Storage
For systems that include battery storage, consistent and reliable energy generation is paramount. A robust solar array, secured by a well-engineered racking system, provides the predictable charging source needed to optimize battery health and cycle life. Unplanned downtime from structural issues can disrupt charging cycles and diminish the value of the entire energy storage system. For a deeper look into how generation stability affects battery cycles and overall efficiency, the ultimate reference on solar storage performance provides valuable data.
Adhering to Standards and Codes
Compliance with local building codes and national standards like ASCE 7 is mandatory. These codes exist to ensure public safety and the structural integrity of buildings. Working with qualified engineers who perform site-specific wind and snow load analysis is the only way to guarantee a compliant, safe, and insurable solar installation.
A Resilient Foundation for Your Energy Independence
Ultimately, the forces of wind and snow are predictable and manageable with diligent engineering. A solar panel mounting system is far more than a simple frame; it is a sophisticated structural system designed to protect a valuable energy-generating asset for 25 years or more. By prioritizing a robust, code-compliant design and using high-quality components, you ensure the long-term resilience and productivity of your investment in energy independence.
Disclaimer: This article provides general information and is not a substitute for professional engineering advice. Always consult a qualified structural engineer for the design of your specific solar installation.
Frequently Asked Questions
How do I find the correct wind and snow load values for my area?
The definitive source for design criteria is your local building department. They can provide the specific ground snow load and basic wind speed requirements for your location. Online tools from organizations like the Applied Technology Council (ATC) can also provide preliminary values based on ASCE 7 standards for planning purposes.
Can I install solar racking myself?
While some smaller, pre-engineered kits may be suitable for DIY installation, designing a custom system and calculating structural loads is a complex task. It is strongly recommended to work with a qualified professional, especially in areas with high wind or heavy snow, to ensure the system is safe, code-compliant, and secure.
Does the type of roof affect the racking design?
Absolutely. The racking and attachment methods for a composite shingle roof are completely different from those for a standing seam metal roof or a clay tile roof. Each roof type has specific structural characteristics and waterproofing details that must be addressed with specialized mounting hardware to prevent leaks and ensure a secure connection.
How much does tilt angle affect snow shedding?
The effect is significant. Generally, tilt angles greater than 30 degrees allow snow to slide off much more effectively than shallower angles. However, the optimal tilt for energy production depends on your geographic latitude. The final design must balance the goal of maximizing energy output with the structural requirement of safely managing snow loads.
