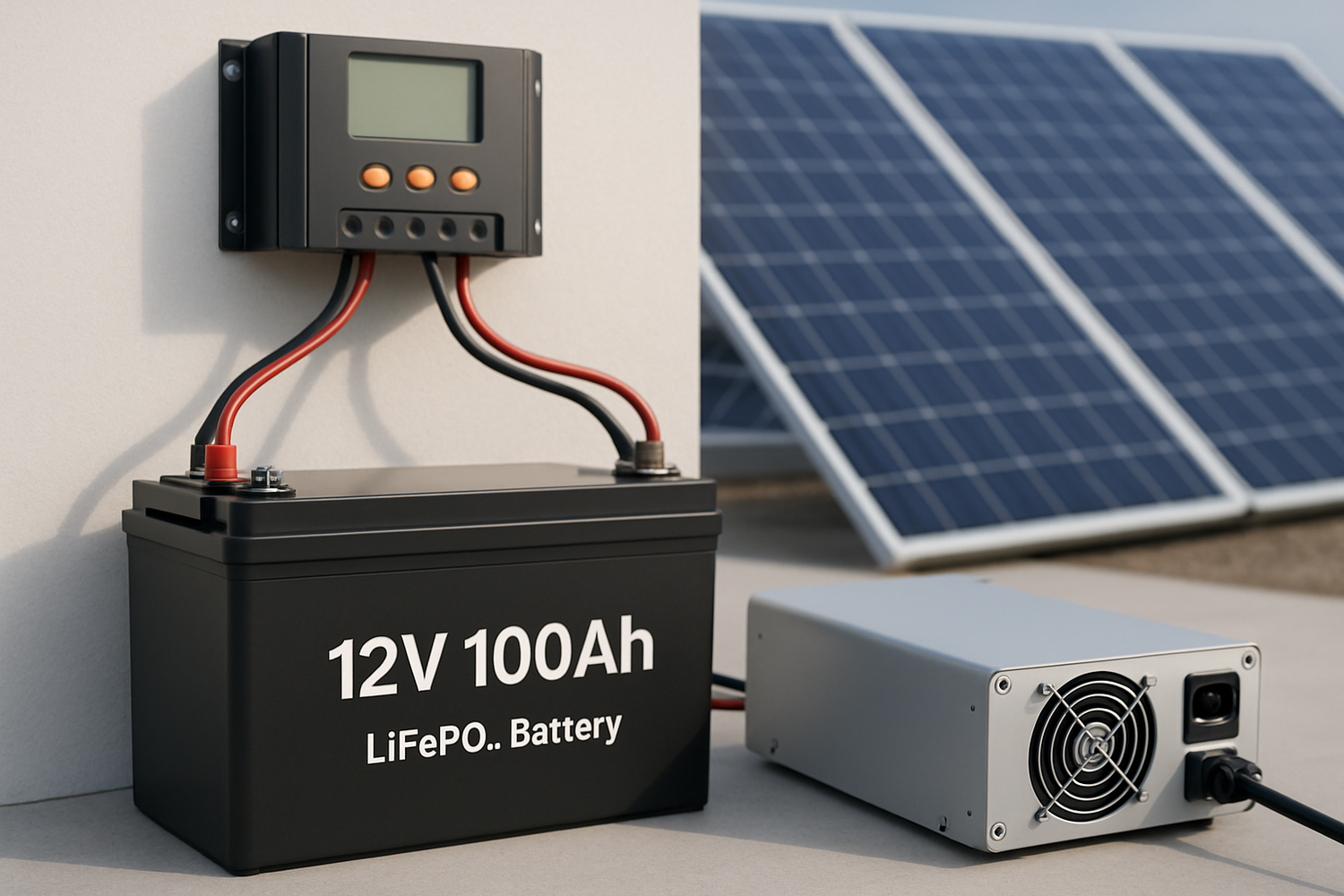

A 12V 100Ah LiFePO4 battery is a cornerstone of modern, efficient solar energy systems. Its combination of longevity, safety, and deep discharge capability makes it an excellent choice for storing solar power. Yet, simply installing one is not enough. To truly harness its potential, you need to optimize your entire system around it. This involves careful component selection, intelligent charging strategies, and precise monitoring to extract every available watt-hour from your solar investment.
Understanding the Foundation: LiFePO4 Battery Principles
Maximizing your solar storage starts with a solid understanding of the battery's characteristics. Lithium Iron Phosphate (LiFePO4) chemistry offers significant advantages over older technologies, but it operates best within specific parameters.
The LiFePO4 Advantage in Solar Applications
LiFePO4 batteries are well-suited for solar energy storage due to their high cycle life, often exceeding 4,000 cycles at 80% depth of discharge. This translates to many years of reliable service. They also maintain a stable voltage output throughout most of the discharge cycle, providing consistent power to your appliances. Furthermore, their inherent thermal and chemical stability makes them one of the safest lithium-ion chemistries available, a critical factor for any home energy system.
Decoding Key Performance Metrics
To optimize your battery, you must understand its core specifications. The 100Ah (Amp-hour) rating indicates its capacity—it can theoretically supply 10 amps for 10 hours. Depth of Discharge (DoD) refers to the percentage of the battery's capacity that has been used. LiFePO4 batteries can safely handle a DoD of 80-100%, unlike lead-acid batteries which are often limited to 50%. Finally, the C-rate defines the charge and discharge current relative to capacity. A 1C rate for a 100Ah battery is 100 amps. Operating within the manufacturer's recommended C-rates is vital for battery health.
Designing Your System for Peak Efficiency
An optimized solar storage system is more than just a battery and a panel. Each component must work in harmony to maximize energy capture, conversion, and storage. As research into solar-plus-storage solutions grows, the importance of integrated system design becomes increasingly clear. According to the U.S. Department of Energy, projects like the Building a Technically Reliable Interconnection Evolution for Storage (BATRIES) initiative are actively working to streamline how these systems connect to the grid, highlighting the need for well-designed setups.
Proper Solar Array Sizing
Your solar array must be large enough to fully charge the battery while also powering your daytime loads. A common rule of thumb is to have at least 200-400 watts of solar panels for a 12V 100Ah LiFePO4 battery, depending on your location's average peak sun hours. An undersized array will consistently leave your battery undercharged, reducing its available capacity and potentially shortening its lifespan. Conversely, an oversized array without a proper charge controller can waste potential energy.
The Critical Role of the MPPT Charge Controller
A Maximum Power Point Tracking (MPPT) solar charge controller is essential for maximizing your solar harvest. Unlike simpler PWM controllers, an MPPT controller intelligently adjusts its input to harness the maximum power from the solar array. It can convert the higher voltage from the panels down to the 12V needed to charge the battery with minimal loss, often boosting energy capture by up to 30%, especially in cooler weather or partially shaded conditions. This efficiency gain directly translates to more stored energy in your battery.
Inverter Selection and Load Management
The inverter, which converts the battery's DC power to AC power for your appliances, is another key component. High-efficiency pure sine wave inverters minimize energy loss during this conversion. Even a few percentage points of efficiency can add up to significant energy savings over time. Additionally, be mindful of 'phantom loads'—devices that draw power even when turned off. Unplugging these or using smart power strips can prevent unnecessary drain on your 12V 100Ah LiFePO4 battery.
Smart Charging and Discharging Practices
How you charge and discharge your battery on a daily basis has the greatest impact on its long-term performance and health. Following best practices ensures you get the most out of its impressive cycle life.
Adhering to Optimal Charging Parameters
LiFePO4 batteries perform best with a specific charging profile. This typically involves a 'Bulk' phase with constant current, an 'Absorption' phase with constant voltage, and a 'Float' phase to maintain a full charge. It is crucial to set your MPPT charge controller to the battery manufacturer's recommended voltage settings, usually around 14.4V-14.6V for the absorption phase. Using incorrect settings, such as those for lead-acid batteries, can lead to undercharging or damage the battery's internal Battery Management System (BMS).
The Importance of Temperature Control
Temperature significantly affects a LiFePO4 battery's performance and longevity. The ideal operating range is typically between 20°C and 25°C (68°F and 77°F). High temperatures can accelerate degradation, while charging below freezing (0°C or 32°F) can cause permanent damage. If your system is in an unconditioned space, consider using an insulated battery box or a battery with built-in heating to maintain an optimal temperature range.
Monitoring and Maintenance for Longevity
Continuous improvement comes from accurate data. Monitoring your system allows you to understand your energy habits and make informed adjustments to maximize storage.
Using a Shunt-Based Battery Monitor
While a battery's voltage can give a rough idea of its charge, it is not a reliable indicator for LiFePO4 chemistry. A shunt-based battery monitor is the best tool for accurately tracking your battery's State of Charge (SoC). It measures the actual current flowing in and out of the battery, providing a precise 'fuel gauge'. This data helps you make better decisions about energy usage and ensures you are not over-discharging the battery. A deeper understanding of these performance indicators is crucial, as detailed in this comprehensive guide to solar storage performance.
The Role of the Battery Management System (BMS)
Every quality 12V 100Ah LiFePO4 battery includes an internal BMS. This electronic system is the battery's brain, protecting it from over-voltage, under-voltage, over-current, and extreme temperatures. It also performs cell balancing, ensuring all internal cells are at an equal state of charge, which is vital for maximizing capacity and lifespan. While the BMS acts as a safety net, relying on it to regularly disconnect the battery indicates a problem in your system design or settings that should be addressed.
Achieving True Energy Independence
Maximizing the storage potential of your 12V 100Ah LiFePO4 battery is a continuous process of optimization. By carefully designing your system with correctly sized components, implementing smart charging and discharging strategies, and actively monitoring performance, you transform a simple battery into a powerful energy asset. This approach not only extends the life of your investment but also enhances your energy independence, providing reliable power when you need it most. The increasing affordability and deployment of hybrid systems combining solar with battery storage are making this independence more accessible than ever.
Frequently Asked Questions
How many solar panels are needed for a 12V 100Ah LiFePO4 battery?
For a 12V 100Ah battery, a solar array between 200 and 400 watts is generally recommended. The ideal size depends on your geographical location, average daily sun hours, and daily energy consumption. This range typically ensures the battery can be fully charged in a single day of adequate sunlight.
Can I use a standard lead-acid battery charger?
It is not recommended. LiFePO4 batteries require a specific charging algorithm (CC/CV - Constant Current/Constant Voltage) that differs from lead-acid profiles. Using a lead-acid charger can result in undercharging or may not properly engage the battery's BMS, potentially reducing the battery's lifespan and performance.
What is the lifespan of a 12V 100Ah LiFePO4 battery in a solar system?
With proper care and by operating it within recommended parameters, a high-quality 12V 100Ah LiFePO4 battery can last for 4,000 to 8,000 cycles. In a typical solar application where it is cycled daily, this can translate to a lifespan of 10 to 20 years, significantly longer than traditional battery technologies.
