String vs Microinverters: BOS Cost and NEC Compliance

Choosing an inverter is one of the most critical decisions in designing a solar energy system. The debate between string inverters and microinverters often centers on performance and upfront price. However, a more nuanced analysis reveals that the true cost and viability of each option are deeply tied to Balance of System (BOS) expenses and evolving National Electrical Code (NEC) safety standards.

While one technology might seem more affordable initially, factors like wiring, additional safety hardware, and labor can shift the financial equation significantly. The 'best' choice is not universal; it depends entirely on your project's specific conditions, safety requirements, and long-term goals.

Understanding the Core Technologies: String and Microinverters

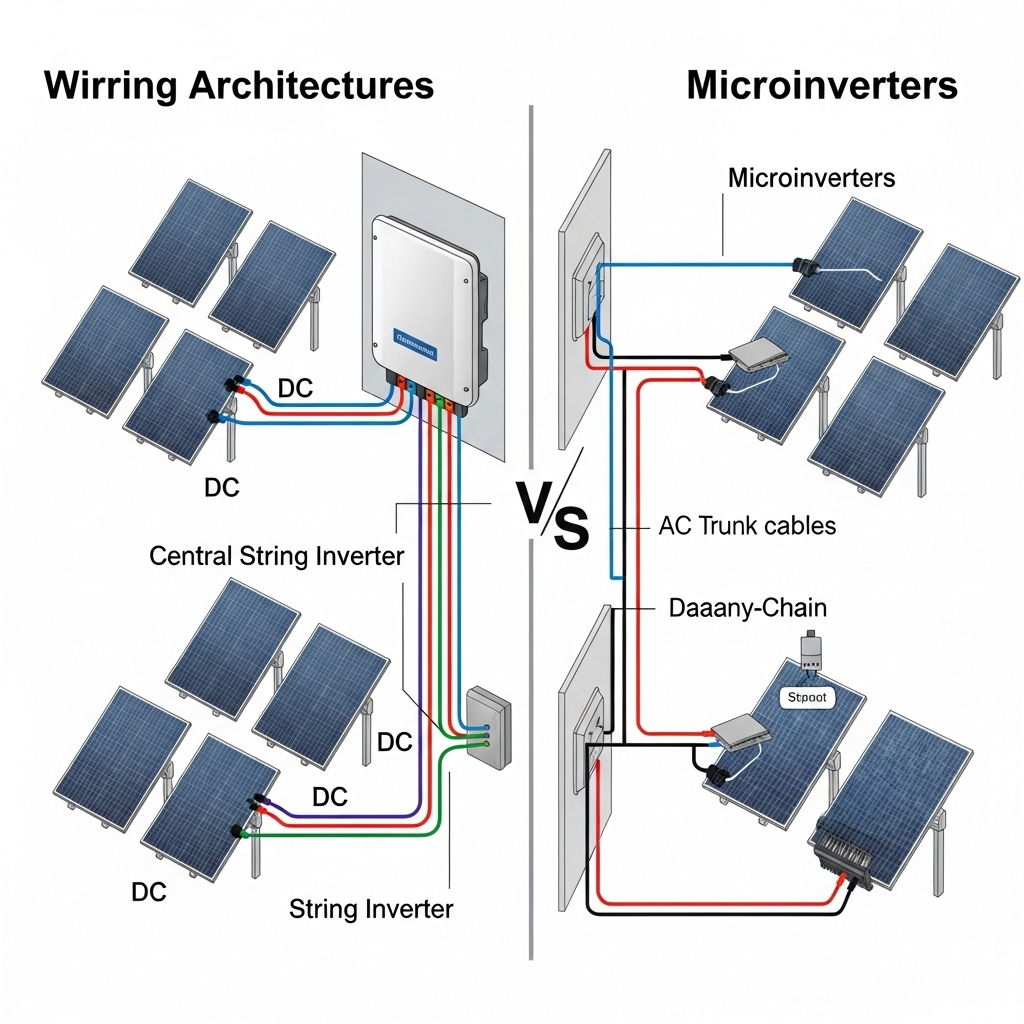

Before comparing costs and compliance, it's important to grasp how each technology functions. Both convert the direct current (DC) electricity from solar panels into alternating current (AC) for your home, but they do so at different points in the system.

How String Inverters Work

String inverters are a centralized technology. Multiple solar panels are connected in a series, creating a 'string.' The combined DC power from this string flows to a single, wall-mounted inverter that performs the DC-to-AC conversion. This approach is well-suited for large, unshaded rooftops where all panels are expected to perform uniformly.

How Microinverters Work

Microinverters offer a decentralized, modular approach. A small inverter is installed directly on the racking beneath each solar panel. This means DC-to-AC conversion happens at the module level. Each panel operates independently, making this technology ideal for roofs with complex layouts, multiple orientations, or intermittent shading issues.

Analyzing the Balance of System (BOS) Cost Impact

Balance of System refers to all the components of a solar installation besides the panels themselves. As module prices have fallen, BOS costs now represent a much larger portion of the total project expense, making inverter choice a key driver of overall cost. This is where the comparison becomes more intricate than just the per-watt price of the inverter.

String Inverter BOS Cost Components

With string inverters, you manage high-voltage DC electricity from the roof to the central unit. This necessitates specific hardware, including heavy-gauge DC wiring, conduit to protect the wiring, DC combiners, and DC disconnects. Critically, to meet modern safety codes, string systems almost always require additional module-level power electronics (MLPE) for rapid shutdown, which adds to the hardware and labor costs.

Microinverter BOS Cost Components

Microinverters convert power to standard AC right at the panel, eliminating the need for high-voltage DC wiring runs. The system uses conventional AC wiring, which is often less expensive and simpler to install. While the microinverters themselves have a higher upfront cost per unit, they eliminate the need for separate DC combiners, DC disconnects, and dedicated rapid shutdown devices, streamlining the BOS hardware list.

Comparative BOS Cost Table

This table offers a simplified comparison for a typical residential solar installation. Actual costs will vary based on location, equipment choice, and site specifics.

Navigating NEC Compliance: Safety and Shutdown Requirements

Safety regulations, particularly from the National Electrical Code (NEC), have a profound impact on solar system design and cost. The primary driver in this area is the requirement for rapid shutdown.

The Role of NEC Rapid Shutdown (RSD)

NEC 690.12 was introduced to enhance firefighter safety. It mandates a way to quickly de-energize the solar conductors on a roof during an emergency. Subsequent updates in NEC 2017 and 2020 have become more stringent, requiring voltage within the array boundary to be reduced to safe levels, effectively pushing the industry toward module-level control.

Compliance with String Inverters

A standard string inverter alone cannot meet modern NEC rapid shutdown requirements. The high-voltage DC conductors from the panels remain energized even when the inverter is off. To comply, installers must add MLPE, such as shutdown devices at each module. This not only adds to the BOS hardware cost but also increases the number of connection points and potential points of failure on the roof.

Inherent Compliance with Microinverters

Microinverters are inherently compliant with NEC 690.12. Because they convert DC to AC at the panel, there is no high-voltage DC wiring running through conduit to a central location. When the AC circuit is shut down at the breaker, each microinverter stops producing power, automatically de-energizing the entire system. This built-in safety feature simplifies design, reduces installation time, and lowers BOS costs associated with compliance.

Performance, Monitoring, and Long-Term Value

The choice of inverter technology extends beyond initial cost and safety compliance; it influences the system's lifetime energy production and ease of maintenance. A deeper analysis of factors like round-trip efficiency and depth of discharge, as detailed in the ultimate reference for solar storage performance, shows how component choices affect overall energy output and financial return.

Module-Level Optimization and Shading

In a string inverter system, panels are linked together. If one panel's output drops due to shading or debris, the performance of the entire string is reduced. Microinverters optimize each panel individually, so the underperformance of one panel does not affect the others. This leads to higher overall energy harvest, especially on roofs that are not perfectly uniform or unshaded.

System Monitoring and Maintenance

Microinverters provide panel-level monitoring, allowing you to see the performance of each module individually. This makes it easy to diagnose a problem if a panel fails or is underperforming. String inverters typically offer only system-level monitoring, making it more challenging to pinpoint issues without extensive rooftop testing.

Scalability and Future Expansion

Microinverter systems are highly scalable. You can easily add more panels in the future, even just one at a time, without needing to match a new panel to an existing string's electrical properties. Expanding a string inverter system is more restrictive, as it depends on the inverter's capacity and string voltage specifications.

Making the Right Choice for Your Project

The decision between string and microinverters is a trade-off. String inverters may offer a lower upfront hardware cost for large, simple installations, but the added expense of NEC-compliant rapid shutdown devices can quickly erode that advantage, increasing both BOS cost and complexity.

Microinverters, while carrying a higher initial price tag per unit, often result in a more competitive or even lower total installed cost for residential and small commercial projects. This is due to their integrated safety features, simpler AC wiring, and reduced labor for compliance. Their superior performance in complex scenarios and advanced monitoring capabilities add to their long-term value. The continuous drive to lower solar energy costs, a key theme in IEA's Technology Roadmap - Solar Photovoltaic Energy, highlights the importance of optimizing these system-level choices.

Disclaimer: This information is for educational purposes only and does not constitute financial or legal advice. Consult with a qualified solar professional to determine the best solution for your specific needs.

Frequently Asked Questions

Do microinverters always have a lower total BOS cost?

Not always. For large, utility-scale projects on open ground with no shading, the economies of scale can favor centralized string inverters. However, for most residential and small commercial projects subject to modern NEC rapid shutdown rules, the integrated safety and simpler wiring of microinverters often make their total installed cost very competitive.

Are string inverters less safe than microinverters?

A properly installed string inverter system with all required NEC 690.12 rapid shutdown hardware is considered safe. The key difference is that microinverters achieve this safety inherently through their design, which eliminates long runs of high-voltage DC wiring. This reduces potential risks and simplifies the path to compliance.

Which system is easier to expand in the future?

Microinverter systems are significantly easier to expand. You can add one or more panels at any time, as each operates independently. Expanding a system with a string inverter is more complex because you must work within the inverter's capacity and the electrical constraints of the existing strings.
