Designing Torque Tubes and Bearings for Gust Loads

In the world of utility-scale solar energy, ground mount trackers are the key to maximizing energy capture. At the heart of these systems are two critical components: torque tubes and bearings. Together, they form the structural backbone that allows entire rows of solar panels to follow the sun. But these components face a formidable adversary: sudden, powerful wind gusts that can cause catastrophic failure if not properly engineered. Designing for these gust loads is fundamental to ensuring a solar asset's long-term reliability and performance.

Understanding the Forces: Why Gust Loads Matter

The wind's effect on a solar tracker is far more complex than a simple, steady push. The interaction is a dynamic one, where sudden changes in wind speed and direction create immense stress on the entire structure. Understanding these forces is the first step in designing a resilient system.

Static vs. Dynamic Wind Loads

Static loads are the relatively constant pressures exerted by a steady wind. Dynamic loads, or gust loads, are short-duration, high-intensity forces that can be unpredictable. These gusts are particularly dangerous because they can induce torsional galloping—a violent twisting motion that can escalate rapidly, leading to structural failure. Many tracker failures occur at wind speeds well below the site's maximum design speed precisely because of these aeroelastic instabilities.

The Role of Aerodynamics in Tracker Design

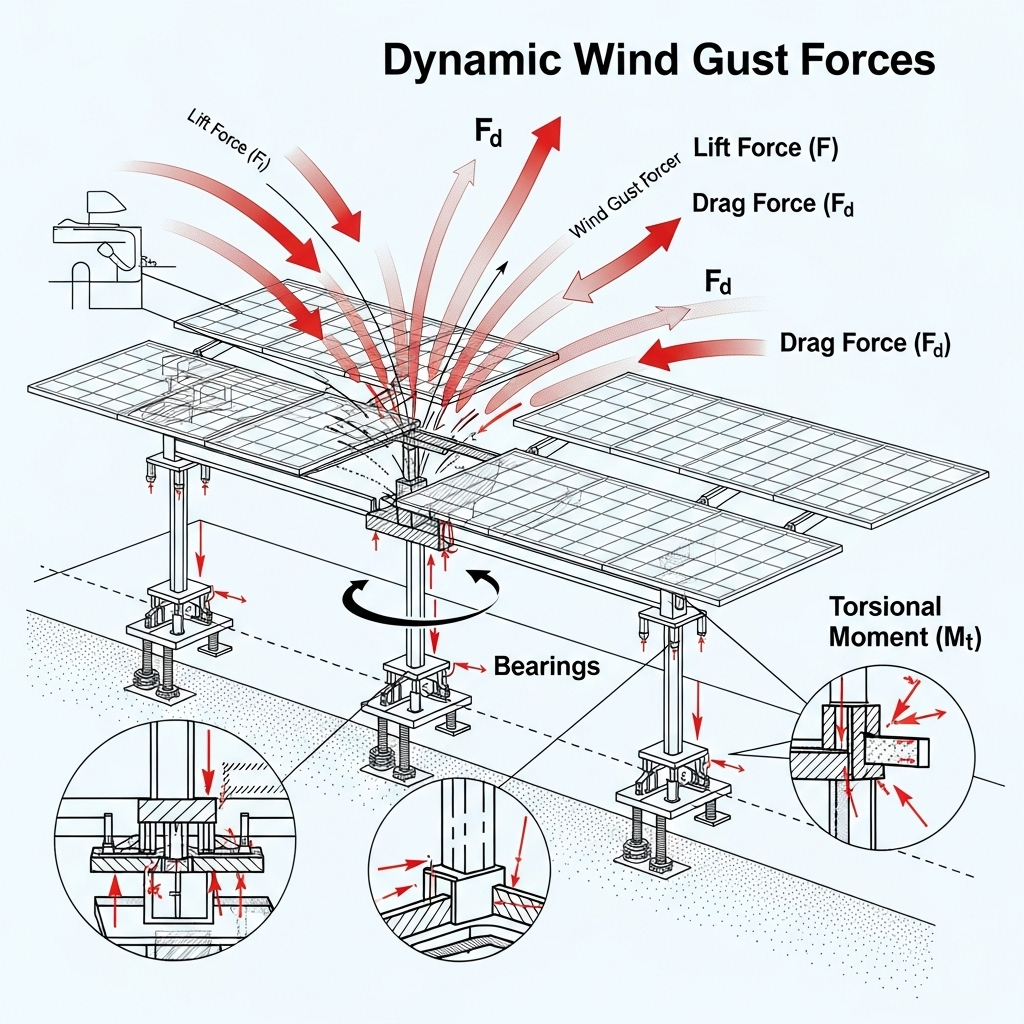

A row of solar panels on a tracker acts much like an airplane wing. Aerodynamic forces such as lift, drag, and moment are generated as wind flows over and under the panels. Phenomena like vortex shedding, where swirling air patterns form and detach from the edges of the panels, can create oscillating forces. These forces are transferred directly to the torque tube, which must resist the twisting, and to the bearings, which must support the load while allowing smooth rotation.

Consequences of Design Failure

Inadequate design for gust loads can have severe consequences. Torque tubes can permanently twist or buckle, preventing the tracker from rotating correctly. Bearings can seize or fracture under the intense, sudden loads. In the worst-case scenario, the entire tracker row can be destroyed, leading to significant financial losses from equipment replacement and lost energy production. Nearly half of all solar power plant insurance claims are related to weather events, making robust wind engineering a critical factor in project bankability.

Engineering Torque Tubes for Maximum Resilience

The torque tube is the primary structural member resisting torsional wind loads. Its design involves a careful balance of material science, geometry, and manufacturing precision to achieve the required strength without excessive cost or weight.

Material Selection and Properties

The most common materials for torque tubes are high-strength steels, such as galvanized steel. Key properties include high torsional rigidity to resist twisting and excellent corrosion resistance to ensure a long service life of 25 years or more. Coatings like hot-dip galvanizing or zinc-aluminum-magnesium create a protective layer essential for durability in harsh outdoor environments.

The Importance of Profile and Geometry

The shape of the torque tube significantly impacts its ability to handle torsional loads. While traditional round and square tubes are common, octagonal profiles can offer superior load distribution and rigidity. Engineers use Finite Element Analysis (FEA) to model how different profiles, wall thicknesses, and diameters perform under simulated wind loads, allowing them to optimize the design for the best strength-to-weight ratio.

Connection and Assembly Considerations

Since a single tracker row can be dozens of meters long, torque tubes are manufactured in sections and joined on-site. These connections, whether bolted or swaged, are potential weak points. They must be engineered to be as strong as the tube itself to ensure that torsional forces are transferred smoothly along the entire length of the tracker without failure.

Selecting and Designing Bearings for High-Load Scenarios

Bearings are the crucial interface between the moving torque tube and the stationary foundation posts. They must allow for smooth, low-friction rotation while supporting the immense loads transferred from the panels during a wind event. High-quality bearings are essential for the reliability of the entire system.

Types of Bearings Used in Solar Trackers

Common bearing types include plain bearings (bushings) and rolling-element bearings. Materials range from durable metals to advanced, self-lubricating polymers like Delrin®, which offer excellent UV resistance and low maintenance. Polymer bearings can reduce the need for periodic greasing, a significant advantage for large-scale solar farms. Metal housings provide higher strength for the most demanding applications, ensuring stability over the system's lifetime.

Key Performance Metrics for Bearings

The primary metrics for bearings are their static and dynamic load ratings, which define their capacity to withstand stationary and moving loads. In the context of gust loads, a high load rating is paramount. Low friction is also critical for operational efficiency. As detailed in an analysis on solar storage performance, the efficiency of any energy system depends on the optimal performance of every single component. A failed bearing can halt energy production just as surely as an inverter fault.

Sealing and Protection Against the Elements

Bearings operate in harsh environments, exposed to dust, sand, and moisture. Effective sealing is vital to prevent contaminants from entering the bearing, which could cause abrasion and premature failure. Materials must also be UV-stabilized to prevent degradation from years of sun exposure, ensuring they function correctly for the tracker's entire design life.

Integrating System Design and Testing for Reliability

Component-level design is only part of the solution. A truly resilient tracker is the result of an integrated system design approach, validated by rigorous testing and intelligent control strategies.

Wind Tunnel Testing and CFD Simulation

To accurately predict wind loads, engineers rely on advanced tools like wind tunnel testing and Computational Fluid Dynamics (CFD). Wind tunnels use scaled models to measure aerodynamic forces under various wind conditions, providing essential data for design validation. According to a report by the IEA, robust infrastructure is key to grid reliability, a principle that starts at the component level with thorough engineering and testing. As mentioned in the Getting Wind and Solar onto the Grid report, ensuring plant reliability is critical for grid stability.

Stow Strategy and Its Impact on Loads

A 'stow' strategy is a tracker's primary defense mechanism. During high winds, the control system commands the trackers to move to a specific angle—often near-horizontal—to minimize the aerodynamic profile and reduce loads. An effective stow strategy can dramatically lower the peak forces on torque tubes and bearings. However, research has shown that a flat, 0-degree stow can be the most dangerous position for certain types of wind-induced instability, making a high-angle stow a safer, more stable option for some designs.

Long-Term Durability and Maintenance

The ultimate goal is a system that operates reliably for decades with minimal intervention. This is achieved through accelerated life testing, which simulates years of operational and environmental stress in a compressed timeframe. The selection of maintenance-free components, such as self-lubricating polymer bearings, further reduces long-term operational costs and improves the overall financial viability of the solar project. The importance of durable components is echoed in other renewable sectors, such as offshore wind, where the choice of anchors and mooring lines is critical for the long-term stability of floating platforms, as outlined in IRENA's Floating offshore wind outlook.

Building for Resilience

Designing torque tubes and bearings for gust loads is a complex but essential discipline in solar engineering. It is not merely about making components stronger; it is about intelligently balancing material science, structural geometry, and system-level controls. By focusing on resilient design from the ground up, we can ensure that ground mount trackers not only maximize energy production day-to-day but also stand strong against the most powerful forces of nature, securing our clean energy investments for decades to come.

Frequently Asked Questions

What is the most common failure mode for torque tubes under gust loads?

The most common failure mode is torsional buckling or permanent deformation. This occurs when a sudden, powerful gust applies a twisting force that exceeds the tube's elastic limit. The tube twists permanently, which can jam the drive mechanism, misalign the panels, and prevent the tracker from functioning.

How do self-aligning bearings help manage gust loads?

Self-aligning bearings are designed to accommodate minor deflections or misalignments in the torque tube that occur under heavy wind loads. This flexibility prevents stress from concentrating at the bearing, which could otherwise lead to binding, increased wear, or catastrophic failure. They help the system absorb and dissipate energy more effectively.

Is a thicker torque tube wall always better?

Not necessarily. While a thicker wall does increase strength, it also adds significant weight and cost to the system. A more effective approach is to optimize the tube's geometric profile (e.g., using an octagonal shape instead of a round one) and select higher-strength steel alloys. This allows engineers to achieve the necessary torsional stiffness without adding unnecessary mass, leading to a more efficient and cost-effective design.
