As more homeowners embrace energy independence, the garage has become a popular location for installing a home energy storage system (ESS). Its convenience is clear, but so are the safety considerations. Placing a powerful electrical system near vehicles and living spaces demands a strict adherence to safety standards. This is where UL 9540 and the National Electrical Code (NEC) provide a critical framework, ensuring your system is both effective and secure.
Understanding the Core Safety Standards: UL 9540 and the NEC
Achieving a safe garage installation depends on two key pillars: a certified safe product and a compliant installation method. UL 9540 and the NEC provide these respective guidelines, working together to protect your property and family.
What is UL 9540? More Than Just a Label
UL 9540 is a comprehensive safety standard for Energy Storage Systems. It's not just a certification for the battery alone. Instead, it evaluates the entire system as a single, integrated unit—including the lithium batteries, the inverter, the control software, and the containment structure. This holistic approach ensures all components work together safely. The certification process rigorously tests for potential hazards like thermal runaway, fire propagation, and electrical faults, confirming the system has been vetted at a system level.
The Role of the National Electrical Code (NEC)
If UL 9540 certifies the 'what' (the equipment), the NEC dictates the 'how' (the installation). The NEC, specifically Article 706, provides the definitive rules for installing an ESS in the United States. It outlines mandatory requirements for location, ventilation, wiring methods, disconnects, and signage. Following the NEC is not optional; it is the code that licensed electricians follow and that local inspectors use to approve your installation.
How UL 9540 and the NEC Work Together
Think of them as two sides of the same safety coin. A UL 9540 certified system is designed for safety, but it's the NEC-compliant installation that brings that safety to life in your home. The manufacturer's instructions for a UL 9540 listed system are written to help you meet NEC requirements. A failure in one area compromises the other, making it vital to address both for a truly secure setup.
Key NEC Requirements for Garage ESS Installations
Installing an ESS in a garage brings specific challenges, primarily related to vehicle traffic and enclosed spaces. The NEC addresses these directly with several key rules.
Spacing and Physical Protection

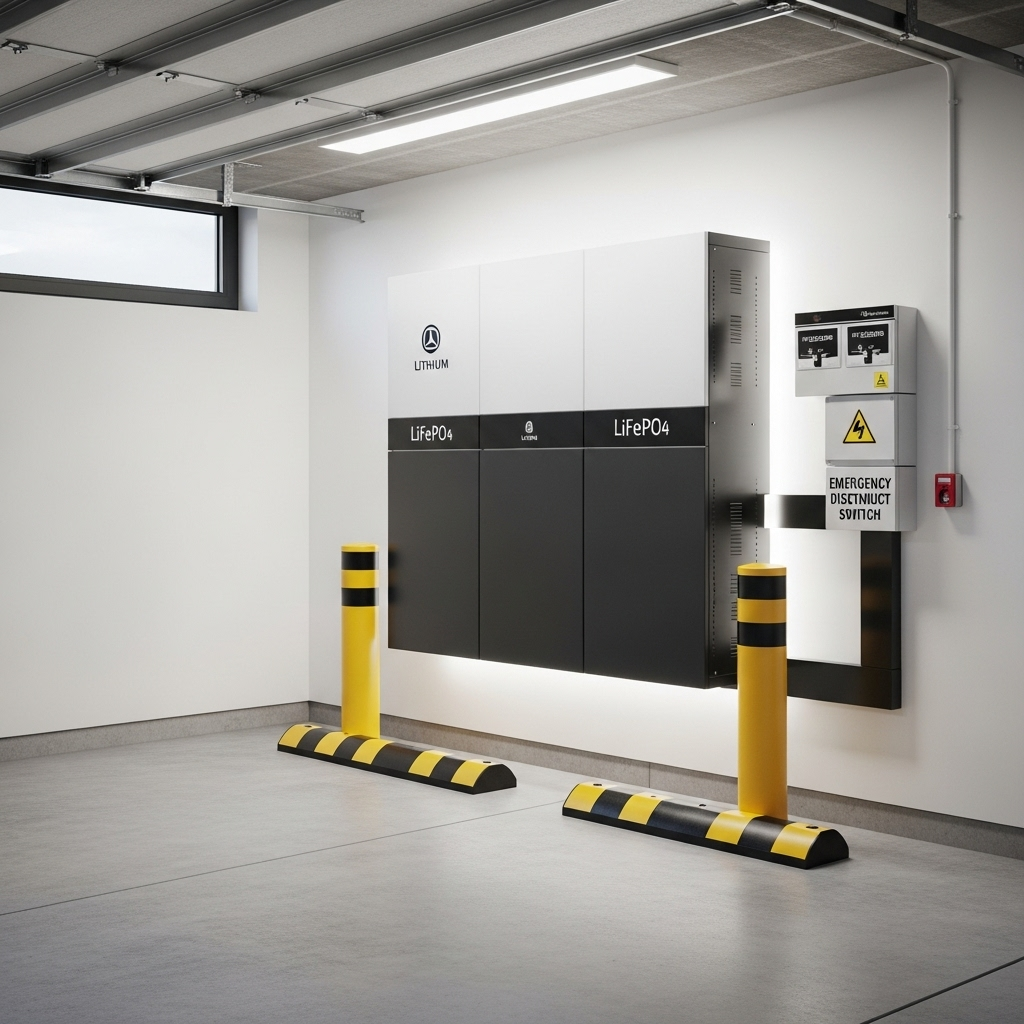

The NEC mandates specific clearances to prevent fire from spreading and to allow access for maintenance. A general rule is to maintain at least 3 feet (approximately 0.9 meters) of clearance around the ESS. Additionally, the code requires that the ESS be protected from physical damage. In a garage, this typically means installing bollards or other sturdy barriers to prevent accidental impact from a vehicle. This aligns with broader energy industry principles, as the International Energy Agency highlights the importance of physical security for distributed energy assets to ensure safe system operations.
Ventilation and Thermal Management
Batteries generate heat during operation. In an enclosed space like a garage, proper ventilation is critical to dissipate this heat and prevent overheating. The NEC may require natural or mechanical ventilation, depending on the system's specifications and the manufacturer's instructions. Proper thermal management is not just a safety requirement; it's also fundamental to battery health. As detailed in the ultimate reference on solar storage performance, operating temperatures directly impact a battery's efficiency and lifespan.
Signage and Disconnects
Clear communication is a lifesaver during an emergency. The NEC requires specific, permanent signage indicating the presence of an energy storage system. This labeling helps first responders quickly identify the technology and take appropriate action. A readily accessible external disconnect switch is also mandatory, allowing firefighters or technicians to de-energize the system safely from the outside.
The Significance of UL 9540A Testing for Garage Placements
While UL 9540 is the certification, UL 9540A is a crucial test method that has a major impact on garage installations.
Distinguishing UL 9540 from UL 9540A
It's important to clarify the difference. UL 9540 is the safety *certification* for the complete system. UL 9540A is the *test method* used to evaluate the system's reaction to a fire. A system is 'listed to UL 9540' after it passes evaluation. It 'undergoes UL 9540A testing' to generate data on fire propagation. The results of this test directly inform the installation manual, especially regarding spacing.
How UL 9540A Test Results Impact Spacing
This is where UL 9540A becomes incredibly valuable for homeowners. If a system successfully passes the large-scale UL 9540A fire test without spreading fire to adjacent units, the manufacturer may be permitted to specify installation clearances of less than 3 feet. For anyone with a smaller garage, this is a significant advantage, allowing for a more compact and flexible installation without compromising safety.
Verifying Test Results for Your System
You have the power to confirm these details. Ask your manufacturer or installer for the UL 9540A test report summary. This document provides the data to back up the installation instructions. It empowers you to have an informed conversation with your installer and the local building inspector, ensuring everyone is aligned on the correct, and safest, installation plan.
A Practical Checklist for a Compliant Garage Installation
To ensure your installation meets the highest safety standards, follow this checklist:
- Verify UL 9540 Certification: Confirm the entire ESS—not just the batteries—is listed to UL 9540.
- Review UL 9540A Test Data: Check the manufacturer's installation manual for spacing requirements based on UL 9540A testing.
- Hire a Qualified Professional: Use a licensed electrician who is experienced with NEC Article 706 and local codes.
- Plan for Physical Protection: Install bollards or other barriers to protect the system from vehicle impact.
- Ensure Proper Ventilation: Confirm your ventilation plan meets the manufacturer's specifications.
- Check for Signage and Disconnects: Make sure all required labels and an accessible disconnect switch are properly installed.
- Obtain Necessary Permits: Work with your installer to secure all required permits from your local authority having jurisdiction (AHJ). As noted in reports like IRENA's Renewable Power Generation Costs, permitting and inspection are integral parts of any system installation.
Building a Foundation for Energy Security
Following the blueprint laid out by UL 9540 and the NEC is about more than just passing an inspection. It is about building a foundation of safety and reliability for your home's energy future. As energy systems become more interconnected, the importance of standardized, safe installations grows. According to the IEA's report on Empowering Variable Renewables, standardized technologies and installation practices are fundamental for grid stability and asset management. By prioritizing these standards, you protect your investment, ensure the well-being of your household, and contribute to a more resilient energy landscape.
Frequently Asked Questions
Can I install any battery in my garage?
Not necessarily. The installation must comply with local building codes and the NEC. Using a UL 9540 certified Energy Storage System (ESS) is highly recommended and often required. The system's listing will specify if it's suitable for indoor or garage installation.
Do I really need a 3-foot clearance around my ESS?
The NEC generally requires a 3-foot clearance unless the system has undergone UL 9540A fire propagation testing and the manufacturer's instructions, based on those test results, permit a smaller clearance. Always follow the manufacturer's installation manual.
What is the difference between Li-ion and LiFePO4 for garage safety?
Lithium Iron Phosphate (LiFePO4) batteries have a more stable chemical structure than some other lithium-ion chemistries, making them less prone to thermal runaway. This inherent safety feature makes them a popular choice for home energy storage, but all systems, regardless of chemistry, should still be UL 9540 certified for maximum safety.
Is a DIY installation of a garage ESS a good idea?
Due to the complexities of high-voltage electricity, NEC compliance, and local permitting, a professional installation by a qualified electrician is strongly advised. Incorrect installation can void warranties, create serious safety hazards, and fail inspection. Disclaimer: This information is for educational purposes only and does not constitute professional installation advice.
