Achieving energy independence means having reliable power, regardless of grid stability or location. For many, an off-grid solar power system is the key to this autonomy. At the heart of a modern, dependable system is the battery storage, and Lithium Iron Phosphate (LiFePO4) technology has emerged as the premier choice. A LiFePO4 battery system not only stores the energy you generate but also ensures it’s available safely and efficiently whenever you need it.
Why LiFePO4 Chemistry is the Foundation of Modern Off-Grid Systems
The choice of battery chemistry is critical to the performance and longevity of an off-grid solar system. LiFePO4 batteries offer a compelling combination of safety, durability, and efficiency that older technologies like lead-acid cannot match. This makes them an ideal cornerstone for anyone serious about creating a self-sufficient power solution.
Superior Safety and Stability
LiFePO4 chemistry is inherently more stable than other lithium-ion variants. Its strong molecular bonds prevent the breakdown that can lead to overheating and thermal runaway, a significant safety concern with other battery types. This stability allows the battery to operate safely across a wider range of temperatures and conditions, providing peace of mind for residential and remote applications alike.
Extended Lifespan and Cycle Count
One of the most significant advantages of a LiFePO4 battery system is its long operational life. These batteries can endure thousands of charge and discharge cycles—often between 4,000 and 7,000 cycles—while retaining a high percentage of their original capacity. In contrast, traditional lead-acid batteries may only last for a few hundred cycles. This durability translates to a service life that can exceed a decade, making it a sound long-term investment.
High Efficiency and Performance
LiFePO4 batteries feature a high round-trip efficiency, often exceeding 95%. This means that very little energy is lost during the charging and discharging process. You get to use nearly all the power your solar panels generate. Furthermore, they can be discharged deeply—up to 90-100% of their capacity—without sustaining damage, giving you access to more of your stored energy compared to lead-acid batteries, which are typically limited to a 50% depth of discharge.
Designing Your LiFePO4 Battery System for True Independence
A successful off-grid solar system requires careful planning. Properly sizing your LiFePO4 battery bank and integrating it with other components is essential for meeting your energy needs consistently and reliably. According to the U.S. Department of Energy, combining solar with storage helps provide resilient backup power during disruptions and can smooth out energy flow.
Calculating Your Energy Needs
The first step is to conduct an energy audit. List all the appliances and devices you intend to power, their wattage, and the number of hours you expect to use them each day. Multiply the wattage by the hours of use for each device to find its daily energy consumption in watt-hours (Wh). Summing these values gives you your total daily energy requirement, typically expressed in kilowatt-hours (kWh).
Sizing Your Battery Bank
Once you know your daily energy consumption, you can size your battery bank. A common practice for off-grid systems is to plan for 'days of autonomy'—the number of days your system can run without any solar input. For example, if your daily need is 10 kWh and you want three days of autonomy, you'll need 30 kWh of storage capacity. To determine the required amp-hours (Ah), divide the total kWh by the system voltage (e.g., 12V, 24V, or 48V). A 48V system is often recommended for larger setups to improve efficiency.

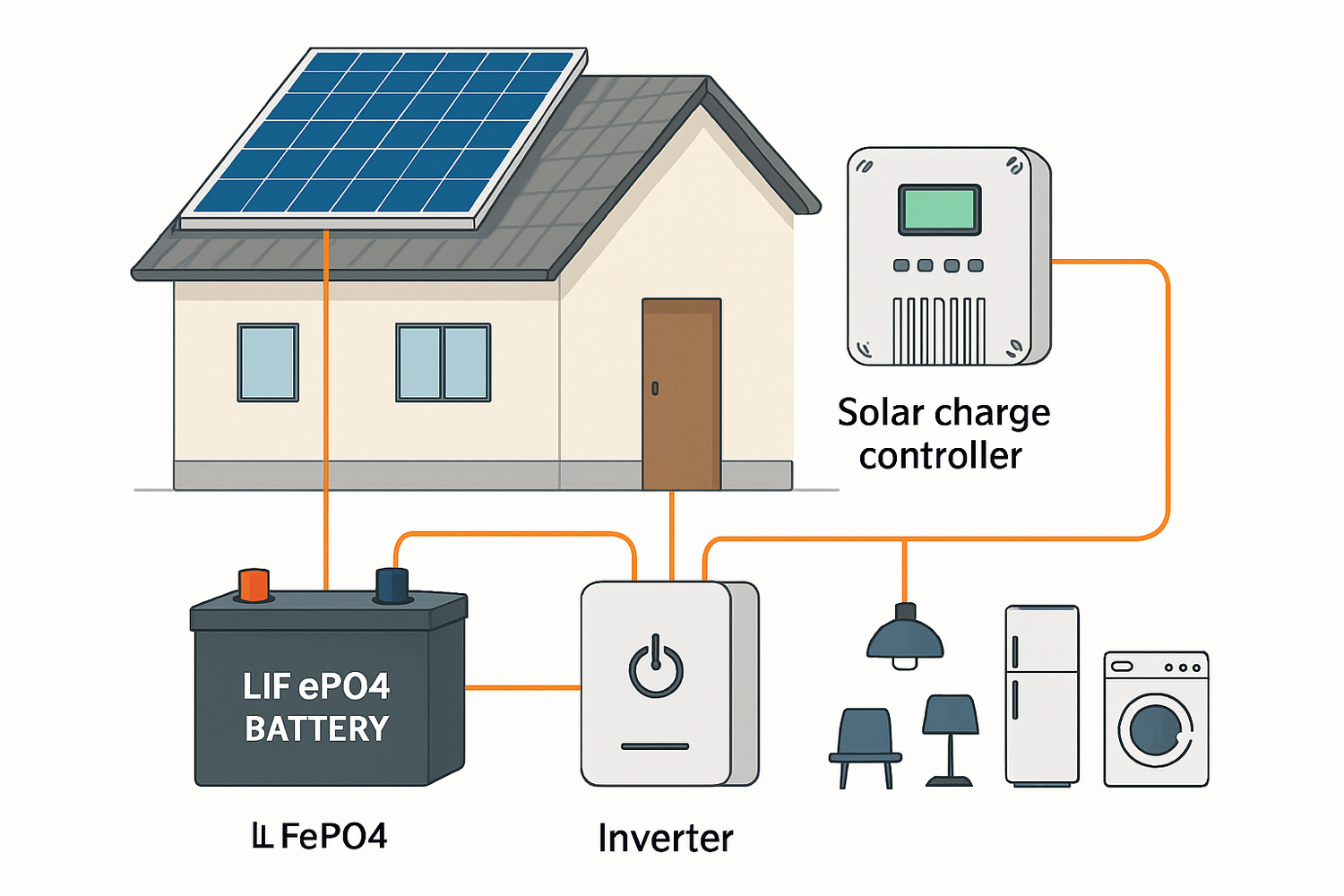

Integrating with Solar Panels and Inverters
Your battery system must work seamlessly with your solar array and inverter. The solar panels generate direct current (DC) electricity, which is managed by a solar charge controller before it charges the batteries. The inverter then converts the DC power from the batteries into alternating current (AC) power that your appliances can use. Ensuring these components are compatible and correctly sized is crucial for optimal performance.
The Practical Advantages of a LiFePO4-Powered Solar Setup
Choosing a LiFePO4 battery system delivers tangible benefits that enhance the off-grid experience, from financial savings over the system's life to operational simplicity. As noted by the International Energy Agency (IEA), the falling costs of battery storage are making these advanced systems more accessible.
Reliable Power in Any Situation
An off-grid solar system with LiFePO4 battery storage provides a dependable source of electricity, whether for a remote cabin, a farm, or as a backup for a grid-tied home. This setup ensures critical loads remain powered during outages, offering security and continuity. The U.S. Department of Energy highlights that solar and storage can keep essential services operating during electrical disruptions.
Lower Long-Term Costs
While the initial investment in LiFePO4 batteries may be higher than for lead-acid alternatives, their extended lifespan and higher efficiency result in a lower total cost of ownership. Fewer replacements and more usable energy mean significant savings over time. The International Renewable Energy Agency (IRENA) has consistently tracked the declining costs and rising competitiveness of renewable technologies, including battery storage.
| Feature | LiFePO4 Battery | Lead-Acid Battery |
|---|---|---|
| Typical Lifespan | 10-15+ years (4,000-7,000 cycles) | 3-5 years (300-500 cycles) |
| Depth of Discharge (DoD) | 80-100% | 50% |
| Round-Trip Efficiency | ~95% | ~80-85% |
| Maintenance | None required | Regular (e.g., checking water levels) |
| Safety | High thermal stability, no off-gassing | Risk of explosion, acid leaks |
Minimal Maintenance Requirements
LiFePO4 batteries are virtually maintenance-free. Unlike flooded lead-acid batteries that require regular monitoring of electrolyte levels and cleaning of terminals, LiFePO4 systems are sealed and self-managed. This 'set it and forget it' characteristic is especially valuable for installations in hard-to-reach locations.
A Deeper Look at Performance Metrics
To fully appreciate the capabilities of a LiFePO4 battery system, it helps to understand the key metrics that define its performance. These specifications determine how the battery behaves under different conditions and are crucial for ensuring its longevity and reliability.
Understanding Key Specifications
Key performance indicators for a battery include its C-rate (how quickly it can be charged or discharged), depth of discharge (DoD), and operating temperature range. LiFePO4 batteries perform well across a wide temperature range and can handle high charge and discharge rates without significant degradation. Detailed analysis of solar storage performance highlights how these factors directly impact a system's output. A comprehensive look at these metrics, as detailed in the ultimate reference for solar storage performance, shows that LiFePO4 batteries consistently outperform older technologies.
The Role of the Battery Management System (BMS)
Every LiFePO4 battery pack includes a Battery Management System (BMS). This electronic controller is the brain of the battery, protecting it from common issues like over-charging, over-discharging, and extreme temperatures. The BMS ensures each cell in the battery pack is balanced, which is vital for maximizing the battery's lifespan and maintaining its performance.
Your Path to Energy Autonomy
Building an off-grid solar power system is a significant step toward self-reliance. By choosing a LiFePO4 battery system, you are investing in a technology that offers superior safety, a long lifespan, and high efficiency. This reliable energy storage solution empowers you to harness solar power on your own terms, providing the foundation for true energy independence. As the International Energy Agency points out in its analysis, the combination of renewables and storage is transforming the global power mix.
Disclaimer: This article is for informational purposes only and does not constitute financial or legal advice. Consult with a qualified professional before making any investment decisions or implementing a solar power system.
Frequently Asked Questions
What is an off-grid solar system?
An off-grid solar system is a standalone power system that is not connected to the public electricity grid. It generates electricity from solar panels, stores it in a battery bank, and converts it with an inverter to power appliances and electronics independently.
How long does a LiFePO4 battery last?
A high-quality LiFePO4 battery can last for 4,000 to 7,000 charge cycles, which often translates to a lifespan of 10 to 15 years or more, depending on usage and operating conditions. This is significantly longer than traditional lead-acid batteries.
Can I expand my LiFePO4 battery system later?
Yes, most LiFePO4 battery systems are scalable. You can typically add more batteries in parallel to increase your energy storage capacity as your needs grow. It is important to use batteries of the same model and age and to follow the manufacturer's guidelines for expansion.
