How to Right-Size Backup Generators for Off-Grid Solar

Selecting the correct generator size for your off-grid solar system determines whether you'll enjoy reliable power or face costly inefficiencies. Too small, and your generator struggles during peak demands. Too large, and you're burning unnecessary fuel while shortening equipment life. The sweet spot requires precise calculations based on your actual power needs, not guesswork.

According to the U.S. Department of Energy, properly sized backup generators in hybrid solar systems can reduce fuel consumption by up to 70% compared to generator-only solutions. This guide provides the exact formulas and methodology to achieve optimal sizing.

Understanding Generator Load Requirements

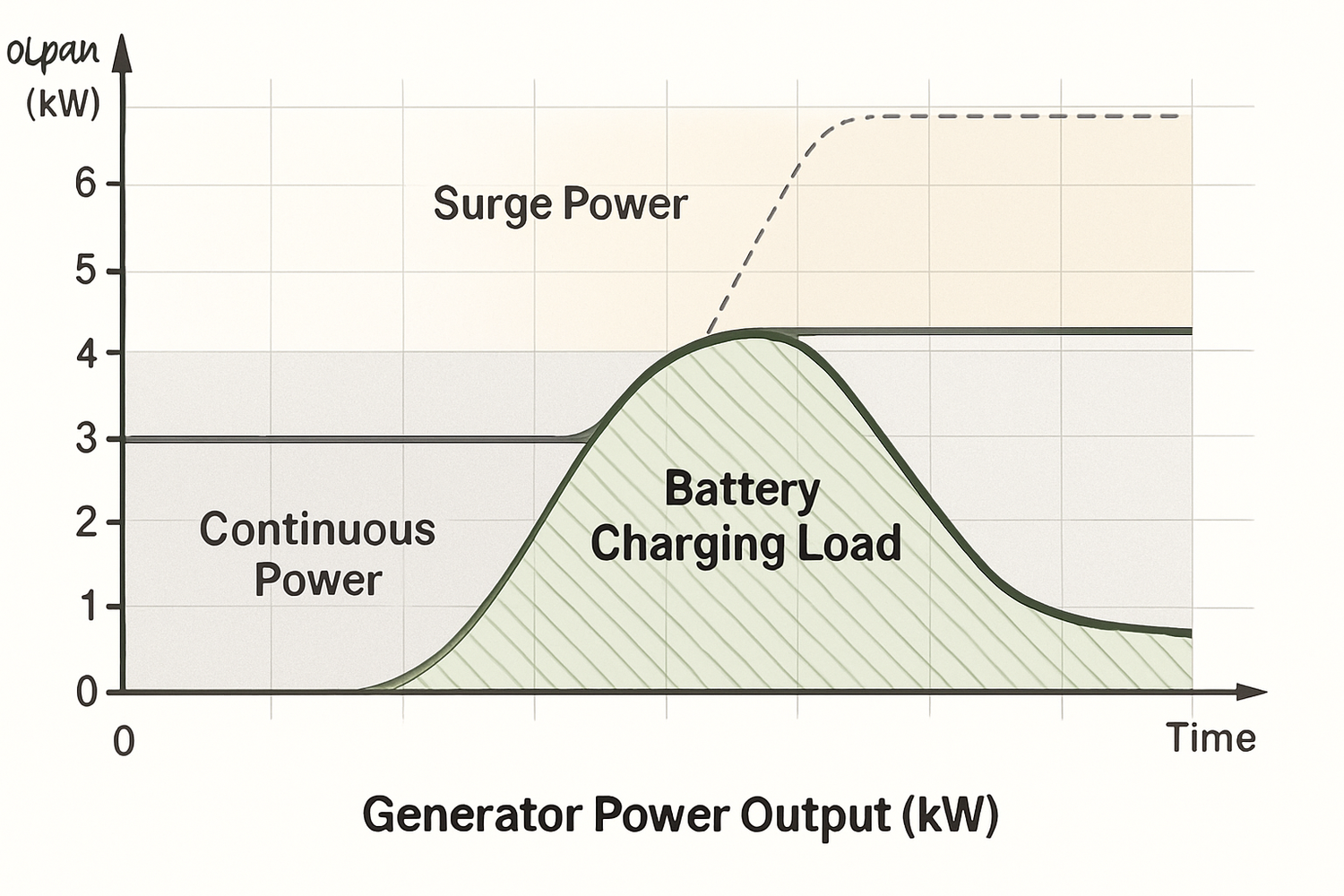

Generator sizing begins with accurate load analysis. Your backup generator must handle three distinct power scenarios: continuous loads, surge demands, and battery charging requirements.

Calculating Continuous Power Needs

Start by listing all appliances that run simultaneously during generator operation. Include essential loads like refrigeration, lighting, and communication equipment. Use this formula:

Continuous Load = Sum of all simultaneous running watts × 1.25 safety factor

The 1.25 multiplier accounts for power factor variations and provides operational headroom. For example, if your essential loads total 3,200W, your continuous requirement becomes 4,000W.

Managing Surge Power Demands

Motor-driven appliances create surge demands 3-7 times their running watts. Water pumps, compressors, and power tools represent the highest surge risks. Calculate surge capacity using:

Required Surge Capacity = Largest motor starting watts + All other running loads

A 1HP water pump drawing 750W running might require 3,750W starting power. Your generator must provide this surge capacity plus any other concurrent loads.

Battery Charging Load Calculations

Battery charging represents a significant portion of generator runtime in off-grid systems. Proper sizing ensures efficient charging without overloading the generator.

Determining Charging Power Requirements

LiFePO4 batteries typically accept charge rates of 0.5C to 1C (50-100% of capacity per hour). For a 10kWh battery bank, maximum charging power reaches 10kW. However, optimal efficiency occurs at lower rates:

Battery Capacity	Optimal Charge Rate	Generator Power Needed
5kWh	0.3C (1.5kW)	2.1kW (including losses)
10kWh	0.3C (3kW)	4.2kW (including losses)
20kWh	0.3C (6kW)	8.4kW (including losses)

Include 40% overhead for inverter-charger efficiency losses and power factor corrections.

Balancing Charging Speed vs Fuel Efficiency

Research from the International Energy Agency shows generators operate most efficiently at 70-80% of rated capacity. Sizing your generator to operate in this range during battery charging maximizes fuel economy.

Fast charging might seem attractive, but it forces generators to run at higher loads, increasing fuel consumption and wear. A 12kW generator charging a 10kWh battery at 0.5C (5kW) operates at 42% load - inefficient and wasteful.

Generator Sizing Formulas and Methods

Accurate generator sizing requires combining all load types into a comprehensive calculation that accounts for real-world operating conditions.

The Master Sizing Formula

Use this proven formula for precise generator sizing:

Required Generator Size = MAX(Continuous Load + Battery Charging, Largest Surge Load) × Derating Factor

The derating factor accounts for altitude, temperature, and fuel quality:

• Sea level, standard conditions: 1.0
• High altitude (above 3,000 feet): 1.15
• High temperature (above 90°F): 1.1
• Poor fuel quality or remote location: 1.2

Practical Sizing Examples

Consider a remote cabin with these requirements:

• Continuous loads: 2,500W
• Battery charging: 3,000W (10kWh bank at 0.3C)
• Largest surge: 4,500W (well pump startup)
• Location: 4,000 feet elevation

Calculation: MAX(2,500 + 3,000, 4,500) × 1.15 = 6,325W

Select a 7kW generator to provide adequate headroom.

Avoiding Common Sizing Mistakes

Generator oversizing wastes fuel and money while undersizing creates reliability problems. Understanding these pitfalls prevents costly errors.

The Oversizing Trap

Many installers default to "bigger is better," recommending 15-20kW generators for modest 5kW loads. This approach creates multiple problems:

• Poor fuel efficiency at low loads
• Increased maintenance costs
• Higher initial investment
• Carbon buildup from light loading

According to U.S. Energy Information Administration data, generators running below 30% capacity consume 50% more fuel per kWh produced compared to optimal loading.

Undersizing Consequences

Undersized generators face constant overload stress, leading to:

• Frequent shutdowns during surge events
• Shortened equipment life
• Incomplete battery charging cycles
• System reliability issues

The key lies in precise calculation rather than conservative oversizing.

Optimizing Generator Performance

Proper sizing enables peak performance, but operational strategies maximize efficiency and longevity.

Load Management Strategies

Smart load management keeps generators operating in their efficiency sweet spot. Program your system to:

• Delay non-essential loads during battery charging
• Stagger motor starts to prevent simultaneous surges
• Schedule high-power activities during generator runtime
• Use battery power for small loads to maintain generator efficiency

Maintenance Scheduling

Right-sized generators require less maintenance than oversized units. Create schedules based on actual runtime hours rather than calendar intervals. Properly loaded generators experience less carbon buildup and require oil changes every 150-200 hours instead of the typical 100-hour interval for lightly loaded units.

Making the Final Decision

Generator sizing success depends on accurate calculations, realistic load projections, and understanding your specific application requirements. The investment in proper sizing pays dividends through reduced fuel costs, improved reliability, and extended equipment life.

Start with detailed load analysis, apply the sizing formulas, and factor in your local conditions. Remember that a precisely sized 8kW generator often outperforms an oversized 15kW unit in both efficiency and total cost of ownership.

Your off-grid solar system deserves a backup generator that complements rather than competes with your renewable energy investment. Proper sizing ensures both technologies work together seamlessly, providing reliable power while minimizing environmental impact and operating costs.
