Properly sizing an off-grid solar system is the most critical step toward achieving energy independence. Get it wrong, and you face either a system that fails when you need it most or one that costs far more than necessary. At the heart of this calculation is determining your required days of autonomy—how long your system can run without any solar input. While manual calculations provide a baseline, dedicated autonomy calculators offer the precision needed for a truly reliable system. This review explores the tools available for sizing your off-grid battery systems.
Why Manual Calculations Are Just the Starting Point
Understanding the math behind battery sizing helps you appreciate what calculators do. It empowers you to spot errors and make informed decisions rather than blindly trusting a tool's output.

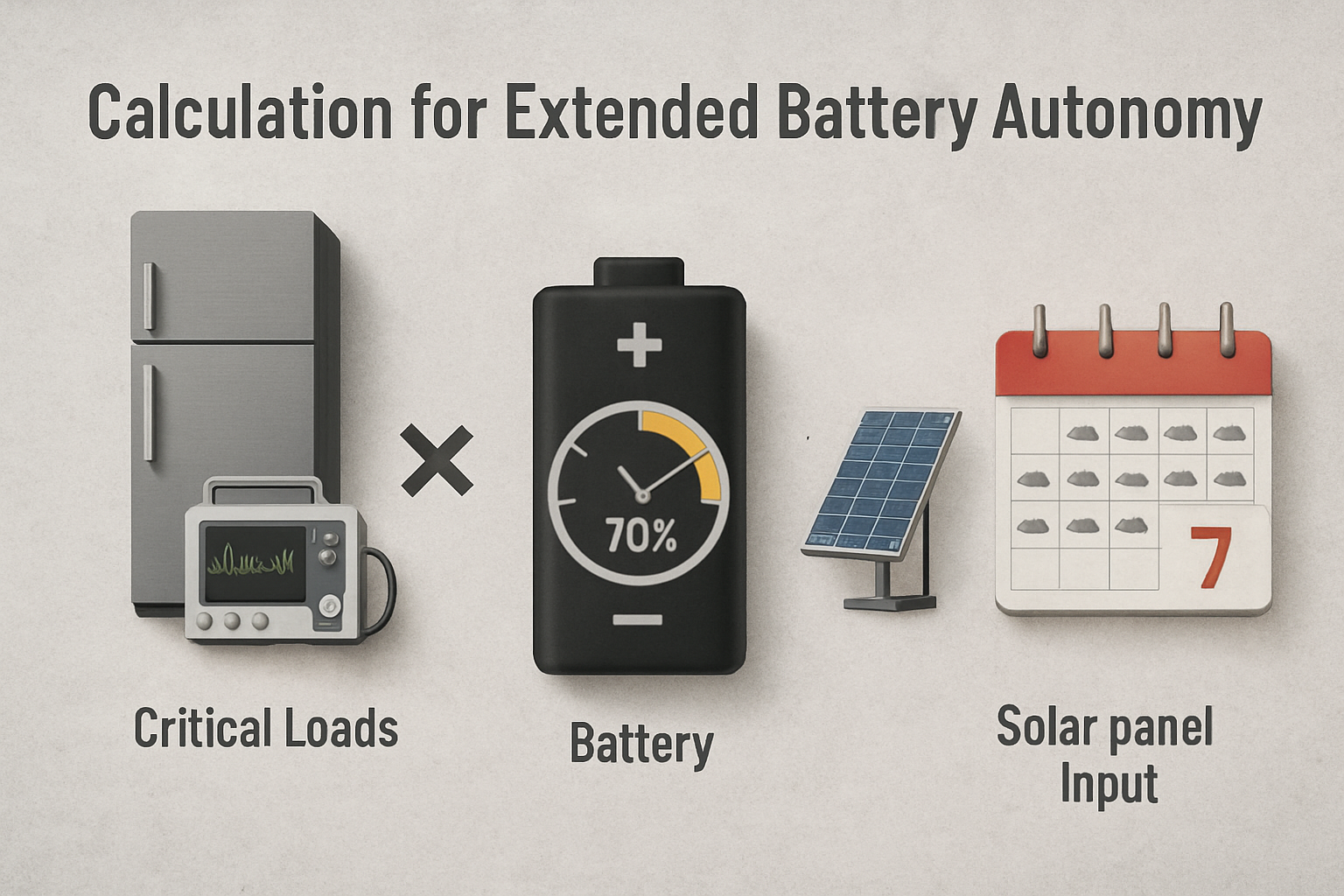

The Core Formula for Battery Reserve
The fundamental calculation for battery bank size is straightforward. It combines your energy needs with the specifications of your chosen battery. The basic formula looks like this:
Required Battery Capacity (Ah) = (Daily Energy Use in Wh × Days of Autonomy) / (System Voltage × Depth of Discharge)
Each part of this equation is vital. Daily Energy Use is the sum of all your appliances' consumption. Days of Autonomy is your safety buffer for cloudy weather. System Voltage (e.g., 12V, 24V, 48V) is a core design choice, and Depth of Discharge (DoD) reflects how much of the battery's capacity you plan to use regularly.
The Limitations of a Simple Formula
A simple formula provides a valuable estimate, but it cannot account for the many variables that impact real-world performance. It often overlooks system inefficiencies, such as energy lost in the inverter (converting DC to AC) and wiring resistance. Furthermore, battery capacity itself is not static; it can be significantly reduced by cold temperatures. According to a report from the IEA, Next Generation Wind and Solar Power, even factors like the orientation of solar panels can influence system performance, which a basic formula won't consider. This is where sophisticated autonomy calculators prove their worth.
Key Features to Look for in an Autonomy Calculator
Not all sizing tools are created equal. A high-quality calculator moves beyond basic inputs to provide a more realistic and actionable system design. When evaluating tools, look for the following features.
Input Variables and Customization
A robust calculator should ask for more than just your total daily load. Look for tools that allow you to input your specific geographic location to use accurate solar irradiance data (peak sun hours). It should also let you specify your battery chemistry (like LiFePO4 or AGM), as this directly impacts the DoD and efficiency ratings. The ability to enter detailed appliance lists, including their wattage and daily runtime, yields a much more accurate load profile than a single, generalized number.
Output Clarity and Detail
The tool's output should be as clear and comprehensive as its inputs. A great calculator will provide the required battery bank capacity in both Amp-hours (Ah) and kilowatt-hours (kWh). It should also recommend a corresponding solar array size (in Watts) needed to reliably recharge that battery bank within a reasonable timeframe. Visual aids, such as graphs showing energy production versus consumption, can be incredibly helpful for understanding your system's dynamics.
Consideration of Real-World Factors
The best tools account for the imperfections of a real system. They should include fields for system inefficiencies, allowing you to factor in energy losses from the inverter and wiring. Some advanced calculators even apply a temperature correction factor to adjust battery capacity based on your climate. To properly use these inputs, it helps to have a solid grasp of solar storage performance metrics, which dictate how your components will behave under various conditions.
Reviewing Top Autonomy Sizing Tools: A Comparative Look
Autonomy calculators generally fall into a few categories, each suited for different stages of the planning process. Understanding their strengths and weaknesses helps you choose the right one for your needs.

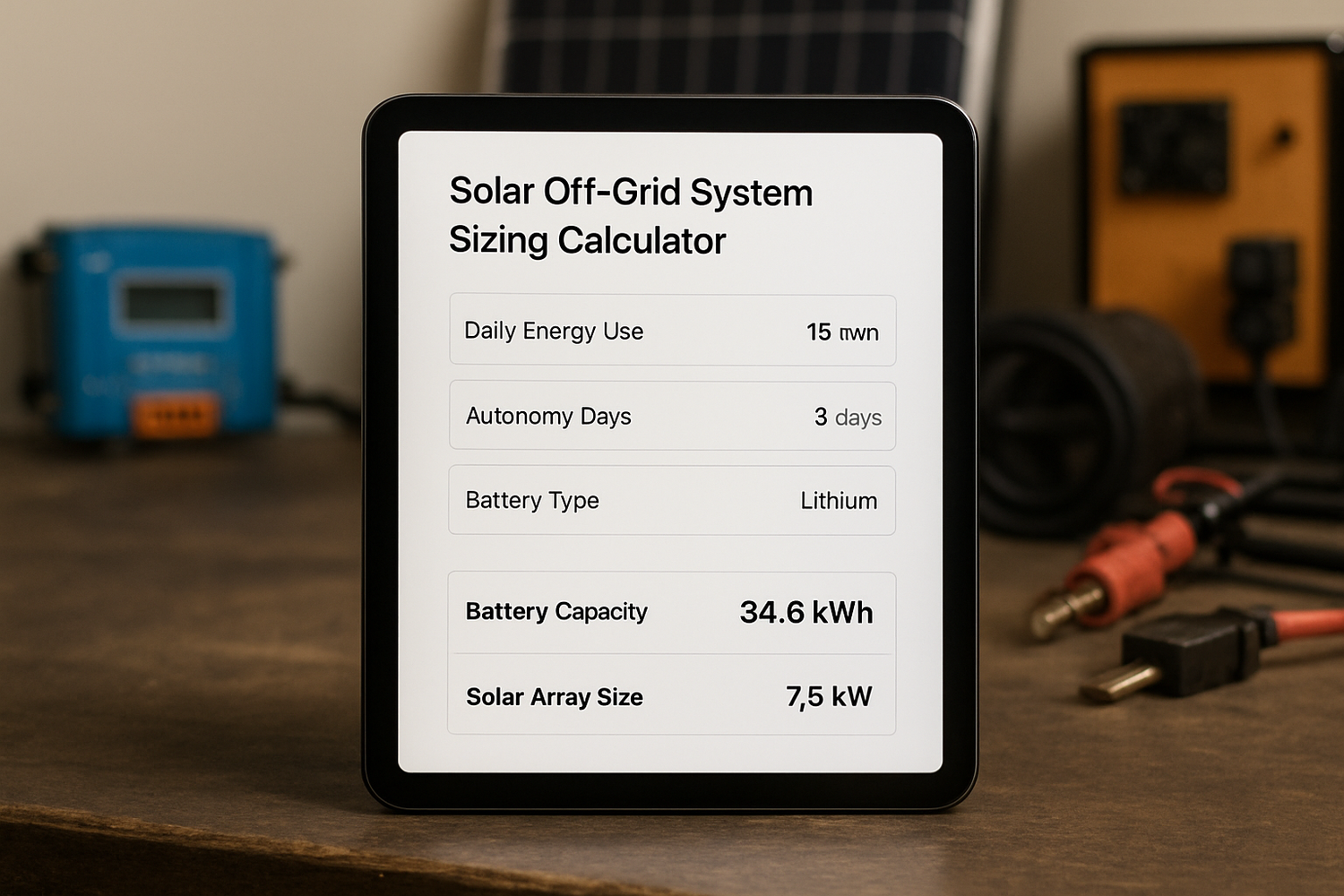

Web-Based Calculators (The Quick Estimators)
These are the most common and accessible tools, perfect for initial planning. You can quickly get a ballpark figure for your system size by entering a few key details. They are excellent for comparing the cost implications of different autonomy targets, such as 2 versus 3 days. However, they often rely on generalized assumptions and may lack the detailed customization needed for a final design.
Software and Spreadsheet-Based Tools (The Detailed Planners)
For those who require maximum precision, dedicated software or detailed spreadsheets offer unparalleled control. These tools allow you to model complex scenarios, input highly specific component data, and simulate performance over an entire year. The learning curve can be steeper, but the result is a highly accurate system design tailored precisely to your location and lifestyle. This approach is ideal when designing a system for a full-time off-grid residence.
Manufacturer-Specific Sizing Tools
Many equipment manufacturers offer their own sizing calculators. These tools are designed to work with their specific products, ensuring that the recommended components are compatible and optimized to work together. The benefit is a streamlined design process. The potential drawback is that you are limited to that manufacturer's ecosystem, which might not always be the most cost-effective or suitable option for your project.
| Tool Type | Customization | Accuracy | Ease of Use | Best For |
|---|---|---|---|---|
| Web-Based Calculators | Low to Medium | Good for Estimates | Very Easy | Initial planning and budget estimation. |
| Software / Spreadsheets | Very High | Very High | Moderate to Difficult | Final, detailed system design. |
| Manufacturer Tools | Medium | High (for their products) | Easy to Moderate | Designing a system with a specific brand. |
Putting a Calculator to the Test: A Practical Walkthrough
Let's apply these concepts to a hypothetical off-grid cabin. The goal is to create a reliable power system with a three-day autonomy reserve to handle extended periods of cloudy weather.
Step 1: Defining Your Energy Needs
First, we conduct an energy audit. The essential loads are an efficient refrigerator (1,200 Wh/day), LED lighting (300 Wh/day), a laptop charger (200 Wh/day), and a water pump (300 Wh/day). This gives us a total daily energy consumption of 2,000 Wh, or 2 kWh.
Step 2: Setting Your Autonomy Goal
Given the location's tendency for multi-day storms, we will stick with our goal of 3 days of autonomy. This ensures that even if the sun doesn't shine for 72 hours, the cabin will have power for all essential functions.
Step 3: Using a Calculator to Get Your Results
We input these values into a detailed web-based calculator. We specify a 48V system using LiFePO4 batteries with a 90% DoD and an overall system efficiency of 85%. The calculator processes this information:
- Total Energy Storage Needed: 2,000 Wh/day × 3 days = 6,000 Wh
- Adjusted for Efficiency: 6,000 Wh / 0.85 = ~7,059 Wh
- Required Battery Capacity: 7,059 Wh / 48V = ~147 Ah
The tool recommends a 48V LiFePO4 battery bank with at least 150 Ah of capacity, which translates to a usable energy storage of over 7 kWh. It also suggests a solar array of approximately 1,500 Watts to ensure the battery bank can be fully recharged in a single sunny day.
Final Considerations for a Resilient System
An autonomy calculator is a powerful guide, not a final command. The number it provides is the starting point for a resilient and reliable system. True energy independence comes from combining accurate calculations with smart planning and real-world adjustments. Your initial load assessment is the foundation of the entire project; any inaccuracies here will be magnified in the final design. The battery is the heart of the system, and as noted in IRENA's analysis on Electrification with renewables, its efficiency is a critical variable in the overall design. For those planning larger or interconnected systems, understanding local regulations is also key. According to IRENA's Grid Codes for Renewable Powered Systems, harmonized rules are essential for ensuring stability as renewable energy systems grow. By using sizing tools wisely and considering the complete picture, you can build an off-grid system that delivers reliable power for years to come.
Frequently Asked Questions
How accurate are online off-grid calculators?
They are excellent for initial estimates, but their accuracy depends on the quality of your input data and the calculator's sophistication. For precise planning, use a detailed tool and cross-reference with manual calculations.
Can I aim for more than 3 days of autonomy?
You can, but it comes with significantly higher costs and diminishing returns. For most residential applications, 2-3 days is a practical balance. For critical loads or regions with very long periods of bad weather, more may be justified.
Do these calculators work for both LiFePO4 and lead-acid batteries?
Most good calculators allow you to select the battery chemistry. This is crucial because LiFePO4 and lead-acid batteries have different usable capacities (Depth of Discharge) and efficiencies, which dramatically affects the final sizing calculation.
What is the biggest mistake people make when using these tools?
The most common error is underestimating daily energy consumption. It's vital to conduct a thorough energy audit of all your appliances and their usage patterns. Garbage in, garbage out applies perfectly here.
