7 costly mistakes when choosing battery reserve and DoD

Setting up a solar energy system is a significant step towards energy independence. At the core of every reliable off-grid or hybrid system is a battery bank, and two of the most critical factors influencing its performance and longevity are its reserve capacity and Depth of Discharge (DoD). Making the right choices here can save you thousands of dollars over the system's life. Conversely, a few common missteps can lead to premature battery failure, unexpected power outages, and significant financial loss.

Mistake 1: Misunderstanding the Depth of Discharge (DoD)

Depth of Discharge is the percentage of a battery's capacity that has been used. It's a fundamental concept, yet it's frequently misunderstood, leading to costly errors in system design and operation.

Ignoring the Critical Link Between DoD and Battery Lifespan

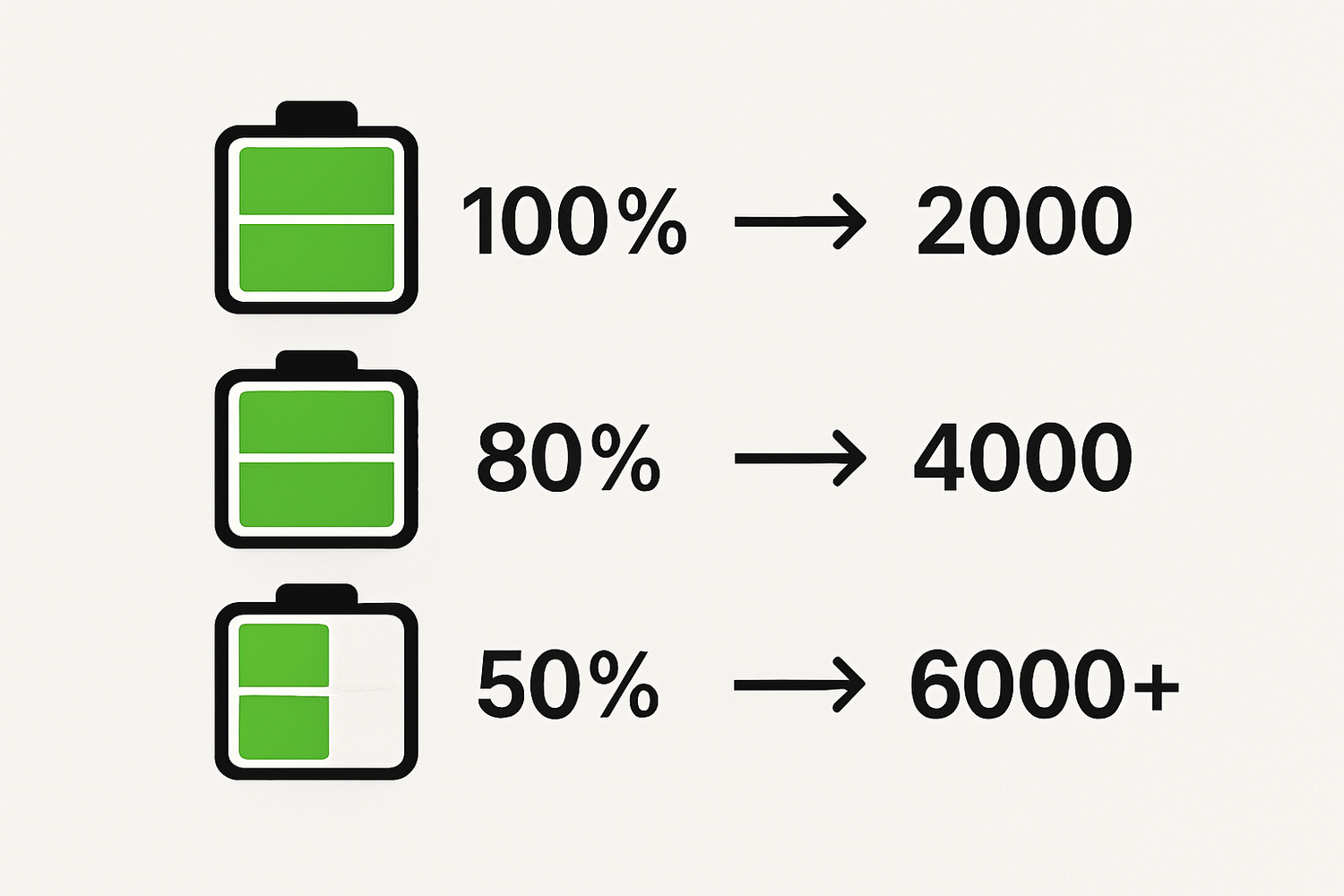

One of the most damaging mistakes is failing to appreciate how DoD directly impacts a battery's cycle life. A battery's cycle life is the number of charge and discharge cycles it can endure before its capacity degrades significantly. Deeper discharges put more stress on the battery's internal components, reducing its overall lifespan. For example, a Lithium Iron Phosphate (LiFePO4) battery might provide over 6,000 cycles when regularly discharged to only 50% DoD, but that number could drop to 2,000-3,000 cycles if it's consistently discharged to 90% or 100% DoD. Treating your battery gently by using shallower discharges is a direct investment in its longevity.

Note: These are illustrative values. Always consult the manufacturer's specifications for your specific battery model.

Assuming 100% DoD is Fine for Daily Use

While many modern LiFePO4 batteries are marketed with a 100% DoD capability, running them to empty every day is not an optimal strategy for long-term health. This maximum rating is more of an indicator of the battery's resilience rather than a recommended daily practice. According to a report by the IEA, even in demanding applications, a typical DoD for Li-ion batteries is around 92% to preserve health. For homeowners seeking maximum value, a more conservative approach is better. As a comprehensive guide on solar storage performance details, respecting these limits is key to achieving the expected lifespan from your investment.

Mistake 2: Incorrectly Calculating Battery Reserve

Your battery reserve, or 'days of autonomy,' is your system's lifeline during periods of no sun. An inaccurate calculation here is a recipe for being left in the dark.

Underestimating Your True Energy Consumption

A common pitfall is basing battery bank size on an average or incomplete assessment of energy needs. You must conduct a detailed load analysis, listing every appliance's wattage and daily hours of use. Pay special attention to devices with high startup surges, like motors in refrigerators or pumps, which can overwhelm an undersized system. Forgetting seasonal loads, such as air conditioning in the summer, will also lead to an insufficient reserve.

Forgetting to Plan for 'Days of Autonomy'

Days of autonomy refers to the number of consecutive days your fully charged battery bank can power your essential loads without any solar input. This is crucial for reliability during extended cloudy weather or winter months. A system with only one day of autonomy is vulnerable. As a publication from IRENA on enhancing healthcare delivery highlights, critical infrastructure systems are designed with at least 1.5 to 2 days of autonomy to ensure resilience. For a home, aiming for 2-3 days of autonomy provides a comfortable buffer and peace of mind.

Ignoring System Inefficiencies

The energy stored in your battery isn't all available at the outlet. Energy is lost during the conversion from DC (battery) to AC (appliances) in the inverter, and minor losses also occur in wiring. These inefficiencies, typically ranging from 5% to 15%, must be factored into your calculations. Failing to account for them means your usable reserve will be smaller than you think.

Mistake 3: Overlooking Critical Battery Specifications

Not all batteries are created equal, even within the same chemistry family. Digging into the technical specifications is essential to avoid a mismatch between the battery and your needs.

Choosing the Wrong Battery Chemistry

While various battery types exist, LiFePO4 (Lithium Iron Phosphate) has become a leading choice for residential energy storage due to its superior safety, long cycle life, and excellent thermal stability compared to other lithium-ion chemistries. Opting for an older, less stable chemistry might save money upfront but can lead to a shorter lifespan and safety concerns.

Ignoring the C-Rate

The C-rate defines how quickly a battery can be charged or discharged relative to its capacity. A 10kWh battery with a 1C rating can provide 10kW of power continuously. If your peak load is 12kW, this battery would be insufficient, even if its energy capacity (kWh) is adequate. You must ensure the battery's continuous and peak discharge C-rates can handle your simultaneous power demands.

Mistake 4: Focusing on Upfront Cost Over Lifetime Value

A short-sighted focus on the initial purchase price is one of the most expensive mistakes in the long run.

Falling for the 'Cheaper' Battery Trap

A low-cost battery often comes with compromises: lower-quality cells, a shorter cycle life, or a less robust Battery Management System (BMS). It's more effective to evaluate the Levelized Cost of Storage (LCOS), which calculates the cost per kWh delivered over the battery's entire lifespan. A premium LiFePO4 battery may have a higher initial cost, but its longer life and higher efficiency often result in a much lower LCOS, providing better long-term value.

Failing to Plan for Future Growth

Your energy needs might increase over time. Perhaps you'll add an electric vehicle or a new appliance. Choosing a battery system that is not easily scalable can be a costly mistake, forcing a complete replacement instead of a simple expansion. Opting for a modular system allows you to add more capacity as your needs evolve, protecting your initial investment.

Securing Your Energy Independence

Choosing the right battery reserve and respecting its Depth of Discharge are not merely technical details; they are the foundation of a reliable and cost-effective solar energy system. By avoiding these common mistakes—from conducting a thorough load analysis and planning for autonomy to selecting the right chemistry and focusing on lifetime value—you can design a system that delivers true energy independence for years to come. A well-planned system is a resilient one, providing power and peace of mind, no matter the weather.

Frequently Asked Questions

What is a safe daily Depth of Discharge (DoD) for a LiFePO4 battery?

For maximizing the lifespan of a LiFePO4 battery, a daily DoD of 80% is a widely recommended and safe practice. While they can handle deeper discharges, staying within this range significantly reduces stress on the battery cells, leading to a much higher number of life cycles.

How many days of autonomy do I really need?

For most residential off-grid systems, 2 to 3 days of autonomy is a safe and practical target. This provides enough reserve power to get through typical stretches of cloudy or stormy weather without needing to rely on a backup generator. The ideal number can vary based on your local climate and the criticality of your power needs.

Does temperature affect my battery reserve?

Yes, temperature significantly impacts battery performance. Extreme cold can temporarily reduce a battery's effective capacity, meaning your available reserve is lower. High heat can accelerate degradation and shorten the battery's overall lifespan. It is crucial to install batteries in a location with a stable and moderate temperature and to consult the manufacturer's specifications for optimal operating temperatures.
