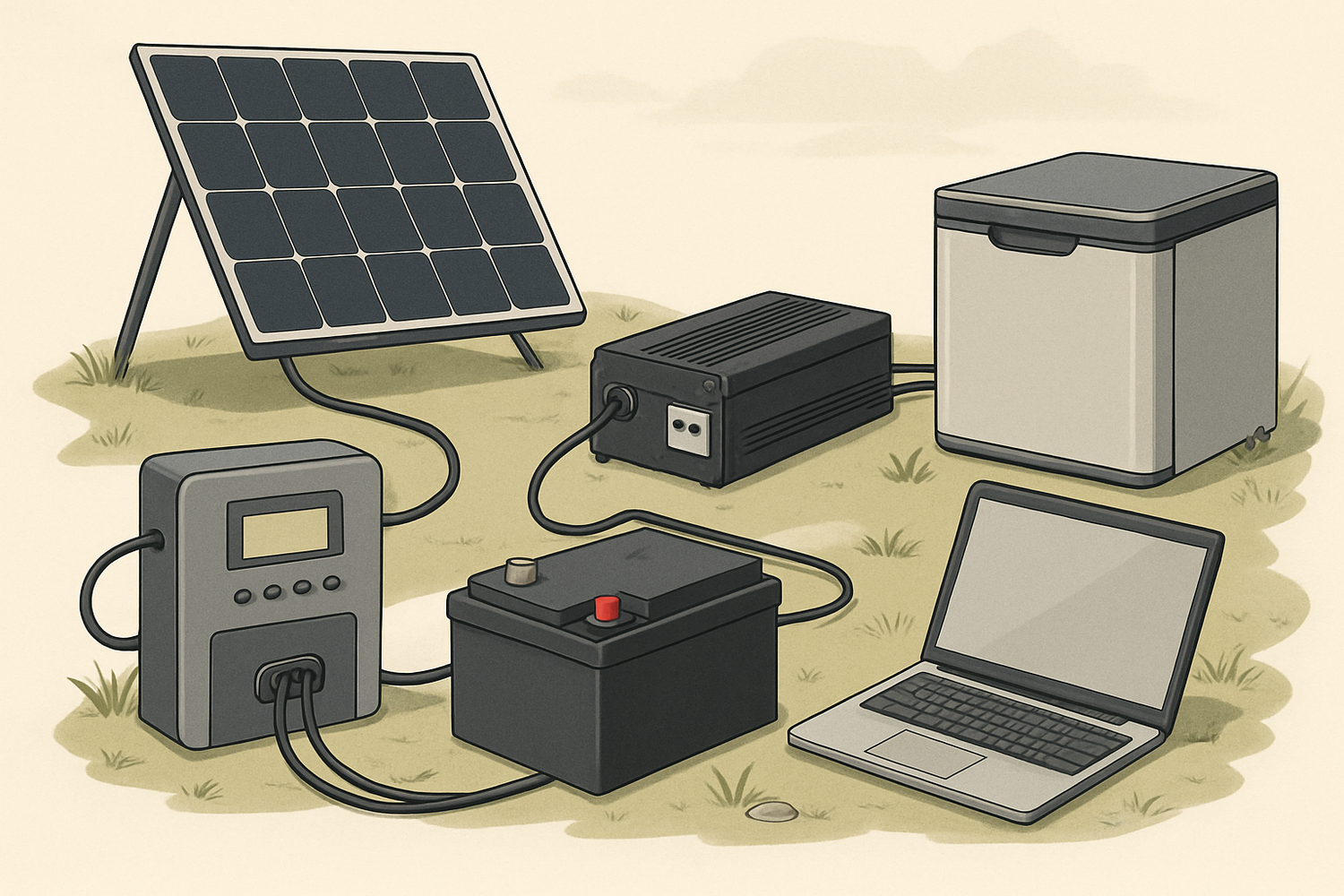

Enjoying the outdoors no longer requires leaving modern conveniences behind. A personal, portable microgrid offers the freedom to power lights, charge devices, and run small appliances, completely off-grid. Creating a reliable campsite microgrid hinges on three key components working in harmony: a Maximum Power Point Tracking (MPPT) charge controller to harvest solar energy, a robust battery bank to store it, and a powerful inverter to make it usable for your gear.
The Core Components of Your Campsite Power System
A successful off-grid setup depends on selecting the right components. Each part plays a distinct role in converting sunlight into stable, usable electricity for your campsite. Understanding these roles is the first step toward building an efficient and dependable system.
MPPT Charge Controllers: Maximizing Solar Harvest
An MPPT charge controller is the brain of your solar charging operation. Its primary job is to intelligently manage the power flowing from your solar panels to your batteries. Unlike older Pulse Width Modulation (PWM) technology, MPPT controllers actively scan and adjust the electrical operating point of the panels to extract the maximum possible power at any given moment. This technology is particularly effective during variable weather, such as cloudy days or when panels are partially shaded, delivering efficiency gains of up to 30%. By optimizing the energy harvest, an MPPT controller ensures your batteries charge faster and you get the most out of every available sunbeam.
Battery Storage: The Heart of Your Microgrid
Your battery bank is the energy reservoir of the microgrid. For camping and mobile applications, Lithium Iron Phosphate (LiFePO4) batteries are a superior choice. They offer significant advantages over traditional lead-acid batteries, including a much longer lifespan, lighter weight, and the ability to safely use a higher percentage of their stored energy. A key metric is the Depth of Discharge (DoD); LiFePO4 batteries can typically be discharged to 80-100% without damage, whereas lead-acid batteries should not be discharged below 50% to preserve their health. Understanding these performance metrics is crucial for long-term value, as detailed in this comprehensive guide to solar storage performance.
| Feature | LiFePO4 Battery | Lead-Acid (AGM) Battery |
|---|---|---|
| Average Cycle Life | 3,000 – 7,000 cycles | 300 – 1,000 cycles |
| Usable Capacity (DoD) | 80% – 100% | 50% (Recommended) |
| Round-Trip Efficiency | ~95% | ~80-85% |
| Weight | Significantly Lighter | Heavy |
| Maintenance | None | Regular checks may be needed |
Inverters: Converting Power for Your Devices
The inverter is the final link in the chain, converting the Direct Current (DC) power stored in your batteries into Alternating Current (AC) power, the standard electricity used by most household appliances. For campsite microgrids, a Pure Sine Wave inverter is highly recommended. It produces clean, stable power identical to what you get from a wall outlet at home, which is essential for safely running sensitive electronics like laptops, cameras, and medical equipment. Cheaper modified sine wave inverters can cause some devices to run hotter, less efficiently, or not at all.
Designing Your Campsite Microgrid: A Practical Approach
Building a microgrid is about more than just buying components; it requires thoughtful planning to ensure the system meets your specific energy demands reliably and safely.
Calculating Your Energy Needs
The first step in designing your system is to conduct an energy audit. List every device you plan to use, its power consumption in watts, and the estimated number of hours you will use it each day. Multiply the watts by the hours for each device to get its daily watt-hour (Wh) consumption. Sum the watt-hours for all devices to determine your total daily energy requirement. It is a good practice to add a 20-25% buffer to this total to account for system inefficiencies and potential future needs.
Sizing Your Components
Once you know your daily energy needs, you can size each component accordingly.
- Solar Panels: Your solar panel array's size (in watts) depends on your daily watt-hour needs and the average 'peak sun hours' for your camping location. Divide your total daily watt-hours by the peak sun hours to get a baseline for the required solar panel wattage.
- Battery Bank: The battery capacity, measured in amp-hours (Ah), should be large enough to cover your daily energy needs, plus extra for days with little sun. To calculate the required amp-hours, divide your daily watt-hours by the battery voltage (typically 12V).
- Inverter: The inverter must be able to handle the combined wattage of all AC devices you might run simultaneously. Add up the watts of all your AC appliances and choose an inverter with a continuous power rating that exceeds this total.
Advanced Concepts for Power Optimization
As off-grid systems become more common, advanced technologies are making them more resilient and efficient. According to the International Renewable Energy Agency (IRENA), off-grid renewables are crucial for providing power to remote locations. These systems are no longer just for basic lighting; they are becoming sophisticated power hubs.
System Integration and Safety
Properly integrating your components is vital for both performance and safety. This includes using the correct gauge of wire to handle the electrical current, installing fuses or circuit breakers to protect against short circuits, and ensuring adequate ventilation for the components, especially the inverter and charge controller. All-in-one Energy Storage Systems (ESS) are becoming more popular as they package the controller, battery, and inverter into a single, easy-to-install unit.
The Role of Microgrids in Resilience
On a larger scale, microgrids are seen as essential building blocks for the future of the electrical grid. The U.S. Department of Energy has invested in research to enhance microgrid capabilities, focusing on reliability and resilience against disruptions. As stated in a DOE video, microgrids are a key solution for remote communities and can increase resilience and lower energy costs for everyone. This same principle of self-sufficiency and resilience applies directly to a well-designed campsite microgrid, providing you with dependable power no matter where you are.
Putting It All Together: A Reliable Power Solution
Building a campsite microgrid is an empowering step toward energy independence in the great outdoors. By carefully selecting a high-efficiency MPPT charge controller, a long-lasting LiFePO4 battery, and a clean-powering Pure Sine Wave inverter, you create a system that is reliable, scalable, and built to last. This blueprint provides the foundation for designing a setup that perfectly matches your power needs, letting you focus on the adventure ahead.
Frequently Asked Questions
What is the main difference between MPPT and PWM charge controllers?
The primary difference is efficiency. An MPPT (Maximum Power Point Tracking) controller is more advanced and can actively adjust to find the optimal voltage and current from the solar panels, which can result in up to 30% more power harvesting, especially in cold weather or cloudy conditions. A PWM (Pulse Width Modulation) controller is a simpler technology that acts more like a switch and is less efficient.
Why are LiFePO4 batteries recommended for camping microgrids?
LiFePO4 (Lithium Iron Phosphate) batteries are recommended for their long cycle life (often 5-10 times longer than lead-acid), safety due to high thermal stability, lighter weight, and higher usable capacity. You can safely discharge them more deeply (80-100%) compared to lead-acid batteries (50%), meaning you get more usable energy from a battery of the same capacity.
Do I need a Pure Sine Wave inverter?
If you plan to power any sensitive electronics like laptops, DSLR cameras, drones, medical devices, or modern kitchen appliances, a Pure Sine Wave inverter is essential. It produces clean, grid-quality power that prevents damage and ensures proper operation. For simple devices like basic lights or water pumps, a less expensive modified sine wave inverter might suffice, but a pure sine wave model offers universal compatibility.
How many solar panels do I need for my campsite?
This depends entirely on your daily energy consumption and the local climate. First, calculate your total daily watt-hour (Wh) usage. Then, divide that number by the average number of 'peak sun hours' per day for your location (a conservative estimate is often 3-5 hours). This will give you the minimum solar panel wattage you need. It's always a good idea to oversize your solar array by at least 20% to account for cloudy days.
Can I expand my microgrid system later?
Yes, most solar power systems are modular and can be expanded. You can add more solar panels (as long as your charge controller can handle the additional input) or add more batteries in parallel to increase your storage capacity. When planning your initial setup, consider choosing a charge controller and inverter that can accommodate future expansion to make the process easier.
