7 coatings and alloys resist sea spray corrosion for portable PV

Portable solar panels offer incredible freedom, providing power in remote locations, especially on the water. Yet, the very environment that offers this freedom—the sea—poses a significant threat. Constant exposure to salt spray can accelerate corrosion, drastically reducing the lifespan and performance of your portable PV system. Choosing panels built with the right protective materials is not just a preference; it's a necessity for long-term reliability.

The Corrosive Power of Marine Environments

Salt-laden air and water create a highly corrosive environment that relentlessly attacks solar panel components. Understanding this threat is the first step toward effective prevention.

How Salt Spray Attacks Solar Components

Sea spray contains dissolved salts, primarily sodium chloride, which act as a potent electrolyte. When this electrolyte settles on the metal surfaces of your portable PV, such as the frame or mounting hardware, it dramatically speeds up the electrochemical process of corrosion. This can lead to rusted frames, seized fasteners, and compromised electrical connections in junction boxes, ultimately causing system failure. According to the International Electrotechnical Commission's IEC 61701 standard, specific tests are designed to assess a PV module's resistance to these harsh conditions, ensuring they meet durability requirements.

Beyond Metal: The Impact on Non-Metallic Parts

Corrosion isn't limited to metal parts. Salt crystals can accumulate on the glass surface, blocking sunlight and reducing efficiency. Over time, salt can degrade protective polymer backsheets and compromise the seals around the panel's edges. This allows moisture to seep inside, which can damage the sensitive photovoltaic cells and internal wiring, leading to a significant drop in power output or complete failure.

Protective Coatings: Your First Line of Defense

Applying a protective layer is one of the most effective strategies to shield solar panels from sea spray. These coatings create a physical barrier between the corrosive elements and the panel's vulnerable components.

1. Hot-Dip Galvanized Coatings

Hot-dip galvanizing involves immersing steel components in a bath of molten zinc. This process creates a bonded alloy coating that provides both barrier and cathodic protection. Even if the surface is scratched, the surrounding zinc will corrode preferentially, protecting the steel underneath. Standards like ISO 1461 are referenced in reports on renewable energy infrastructure as a benchmark for this type of protection. According to a study by the International Renewable Energy Agency (IRENA), selecting adequate materials and following construction standards is a key mitigation measure against damage in harsh conditions.

2. Polymer and Epoxy Coatings

Polymer coatings, such as epoxy and polyurethane, provide a durable, impermeable barrier against moisture and salt. These coatings are applied as a liquid or powder and cured to form a tough, plastic-like shield that is also resistant to UV radiation. Research highlighted by the International Energy Agency (IEA) points to the development of new polymer materials as a key factor in reducing life-cycle costs and improving the economics of solar systems.

3. Ceramic Coatings (Cermets)

Ceramic-metal composites, or cermets, offer exceptional resistance to both high temperatures and corrosion. A notable innovation comes from Purdue University, supported by the U.S. Department of Energy. As detailed in their research, a material combining tungsten carbide with zirconium and copper creates a dense, strong, and highly corrosion-resistant surface ideal for extreme conditions, showcasing the future of protective materials. This development, as mentioned in the EERE Success Story, could significantly increase the efficiency and durability of solar technologies.

4. Anti-Reflective and Self-Cleaning Coatings

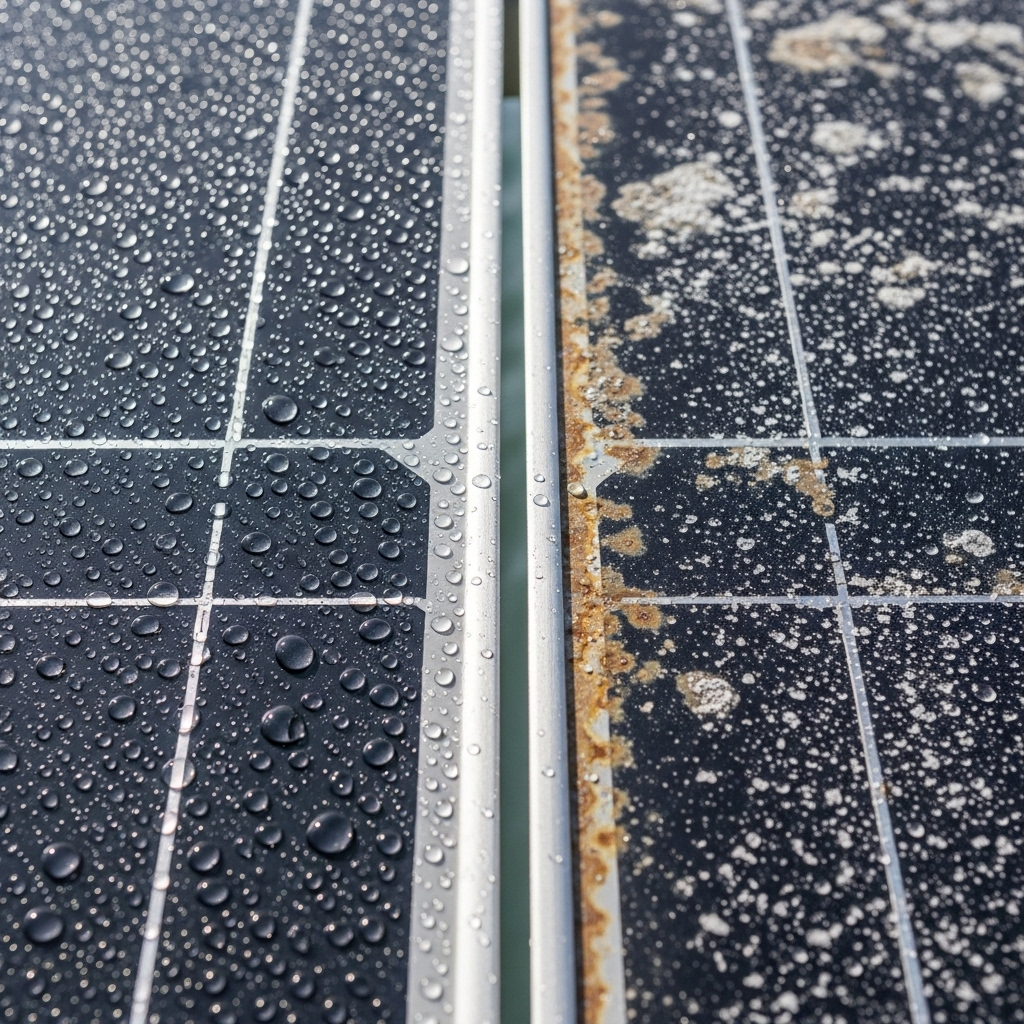

While primarily designed to maximize light absorption, advanced coatings on solar panel glass also offer protective benefits. The IEA has noted the need for effective optical coatings that are also self-cleaning. These hydrophobic and oleophobic surfaces repel water and prevent salt crystals from adhering, which not only maintains efficiency but also protects the glass from abrasive salt buildup.

Advanced Alloys: Building Corrosion Resistance from Within

Instead of just adding a protective layer, another strategy is to construct the panel itself from materials that are inherently resistant to corrosion.

5. Marine-Grade Aluminum (5000 & 6000 Series)

Not all aluminum is created equal. Marine-grade aluminum alloys, such as the 5000 and 6000 series, contain magnesium and silicon, which significantly enhance their corrosion resistance. These alloys form a stable, passive oxide layer on their surface that prevents salt and moisture from causing damage, making them an excellent choice for panel frames.

6. Stainless Steel (316 and 316L)

For fasteners, mounting brackets, and structural components, 316-grade stainless steel is a superior choice. It contains molybdenum, an element that dramatically increases its resistance to chloride corrosion, which is the specific type of corrosion induced by saltwater. While more expensive, using 316 stainless steel for critical hardware prevents weak points where corrosion often begins.

7. Zinc-Magnesium-Aluminum Alloys

An advancement over traditional galvanizing, alloys of zinc, magnesium, and aluminum (ZM) offer even greater protection. These coatings have self-healing properties; when scratched, the alloy migrates to protect the exposed steel. This technology is particularly valuable for mounting systems in the most demanding marine environments, such as on floating solar farms.

Integrating Protection for Maximum Longevity

Achieving true durability in a marine environment requires a holistic approach. It’s not about a single feature but the integration of multiple protective strategies.

A Multi-Layered Approach

The most robust portable PV systems combine an inherently resistant alloy with a high-performance coating. For example, a marine-grade aluminum frame that is also powder-coated offers two layers of defense, ensuring a much longer service life. This layered defense is crucial for protecting your investment.

The Importance of Connectors and Fasteners

A system is only as strong as its weakest link. Even a perfectly coated panel can fail if the screws and connectors holding it together corrode. Always verify that all hardware is made from marine-grade stainless steel or another material with proven salt spray resistance. The junction box, which houses the electrical connections, must be fully sealed and waterproofed, often with potted silicone, to prevent any moisture ingress.

Linking Protection to Performance

Protecting the external hardware from corrosion is crucial for the panel's structural integrity, but the system's overall output depends on its core components working flawlessly. Ensuring high performance from your solar storage and inverter is equally important for a reliable off-grid power system. You can find detailed benchmarks on what to expect from a well-maintained system in this ultimate reference on solar storage performance.

A Forward Look at Material Science

The fight against sea spray corrosion is a testament to the importance of material science in renewable energy. By choosing portable PV systems built with advanced coatings and alloys, you are making a proactive decision to ensure reliability and longevity. This careful selection safeguards your equipment, secures your energy independence, and allows you to harness solar power confidently, no matter how harsh the marine environment.

Frequently Asked Questions

Can I apply a protective coating myself to an existing portable solar panel?

Yes, several marine-grade anti-corrosion sprays and paints are available for consumer use. For the best results, proper surface preparation—including cleaning and light abrasion—is critical. However, a DIY application may not offer the same durability as a factory-applied, heat-cured, or electro-chemical coating like hot-dip galvanization.

Is stainless steel completely rust-proof in a marine environment?

No material is entirely 'rust-proof.' Marine-grade 316 stainless steel is highly resistant to corrosion but can still experience pitting or crevice corrosion under specific conditions. This can happen in oxygen-deprived areas, such as under bolt heads or in tight crevices where saltwater can become stagnant.

How do I know which materials my portable PV panel is made of?

The manufacturer's technical specification sheet is the most reliable source for this information. Look for details on the frame material (e.g., 'anodized aluminum alloy 6063-T5' or 'marine-grade aluminum'), fastener material (e.g., 'stainless steel 304 or 316'), and any certifications, such as an IEC 61701 salt mist corrosion test rating.
