A portable solar system represents energy independence. Yet, that independence is fragile if the equipment fails when exposed to the elements. The cause of failure is often not the solar panels or the battery chemistry, but the box that houses them. A proper IP-rated portable solar enclosure is the first and most critical line of defense against dust and water. Success lies in the engineering details that turn a simple box into a resilient shield.
Beyond the Numbers: What IP Ratings Demand from Enclosure Design

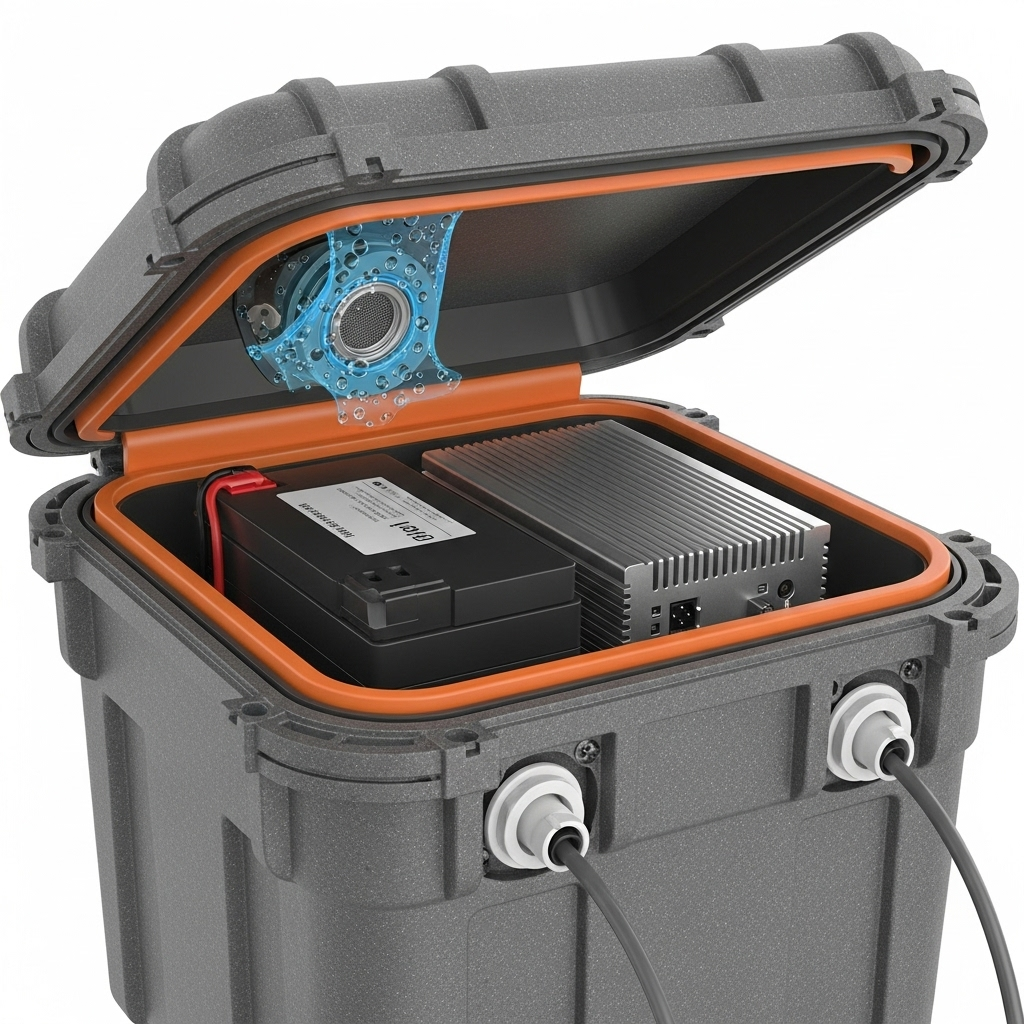

An IP65 or IP67 rating is more than a number; it's a performance benchmark achieved through deliberate design choices. The ability to resist powerful water jets (IP65) or temporary immersion (IP67) depends entirely on the physical construction of the enclosure.
The Crucial Role of Gaskets and Seals
The primary barrier against ingress is the gasket. For a durable seal, material choice is paramount. Silicone gaskets generally offer superior resistance to temperature extremes and UV degradation compared to standard rubber. A critical property is 'compression set'—the ability of the material to rebound after being compressed. A gasket with a low compression set will maintain a tight seal through years of use. The seal must also be a continuous, unbroken loop, as any gap creates a point of failure.
Structural Integrity Under Pressure
An enclosure's material must resist warping under thermal stress. Materials like high-impact ABS plastic, polycarbonate, or aluminum are common choices. As temperatures fluctuate, materials expand and contract. Poor structural design can cause the enclosure to deform, compromising the gasket's seal. This is especially important in systems where internal components generate heat. As noted in the IEA's Technology Roadmap - Solar Photovoltaic Energy 2010, managing the operational parameters of photovoltaic systems is key to their long-term viability.
Critical Design Features for Dust and Water Protection
Several specific features work together to create a truly sealed and reliable portable solar enclosure. Overlooking any one of these can render an IP rating meaningless in the field.
Cable Glands and Connector Sealing
One of the most common failure points is where cables enter or exit the enclosure. Simply drilling a hole and passing a cable through is insufficient. A correctly sized and torqued cable gland creates a watertight seal around the cable's diameter. Similarly, any external connectors for solar panels or loads must be IP-rated themselves and installed with appropriate gaskets to maintain the integrity of the entire system.
The Importance of Latches and Fasteners
The latching system provides the force needed to compress the gasket evenly. Screw-down lids with multiple fasteners offer excellent, uniform pressure. For quicker access, clamp-style latches are effective, provided they are engineered to distribute pressure across the entire sealing surface. Uneven pressure creates weak spots in the seal, inviting ingress over time.
Ventilation and Pressure Equalization
A completely sealed box can become a liability. Temperature changes create a pressure differential between the inside and outside of the enclosure. This can cause the enclosure to 'breathe,' pulling in air—and with it, dust and moisture—through the seals. The solution is a pressure equalization vent. These vents use a membrane (like ePTFE) that allows air to pass through but blocks water molecules and dust particles, preventing seal fatigue and failure.
Integrating Electronics for System Reliability
A protective shell is only half the battle. The internal design of the solar enclosure is just as important for preventing failures and ensuring optimal performance.
Internal Layout and Thermal Management
Heat is a primary enemy of electronics. Components like inverters and charge controllers must have adequate space for air circulation. Mounting heat-generating components directly to a metal chassis or an internal heat sink can help dissipate thermal energy. A poor internal layout leads to overheating, which reduces component lifespan and can cause a complete system shutdown. The International Energy Agency's analysis of System Integration of Renewables points out that managing system variables like voltage and power flow is essential for stability, and thermal management is a core part of that stability.
Mitigating Internal Condensation
Even if an enclosure is perfectly sealed, moisture can be trapped inside during assembly in a humid environment. As the temperature drops, this moisture can condense on circuit boards and terminals, leading to corrosion or short circuits. This risk can be mitigated by applying a conformal coating to the electronics or by including a desiccant pack inside the enclosure to absorb trapped moisture.
Real-World Validation and Performance
Achieving a reliable IP-rated enclosure design requires moving beyond basic certification tests and considering the full lifecycle of the product.
The Link Between Design and Performance Metrics
Every design choice impacts the system's output and longevity. For example, effective thermal management directly contributes to better battery health and higher inverter efficiency. As detailed in this comprehensive reference on solar storage performance, maintaining components within their optimal temperature range is directly correlated with higher energy yields and a longer service life. A well-designed enclosure makes these performance metrics possible.
The Cost of Poor Design
Cutting corners on enclosure design by using inferior materials, inadequate seals, or ignoring thermal management leads to premature and costly equipment failure. Such failures not only result in financial loss but also undermine the very goal of achieving dependable, independent power. The IEA's report on Integrating Solar and Wind emphasizes that system reliability is fundamental for building user trust and encouraging wider adoption of renewable technologies.
Building for Resilience
A high IP rating on a portable solar enclosure is not just a label; it is the outcome of a meticulous design process. By focusing on the quality of gaskets, the structural integrity of materials, proper sealing of all entry points, and intelligent thermal management, you create a system built for true resilience. This attention to detail is what separates a system that works from one that fails, ensuring your access to power remains secure, regardless of the conditions.
Frequently Asked Questions
Can I improve the IP rating of an existing enclosure?
Attempting to upgrade an enclosure's IP rating is challenging and generally not recommended. A certified rating is the result of specific design and testing. While you can perform maintenance like replacing old gaskets or ensuring cable glands are tight, you cannot reliably change a product's fundamental rating. It is better to select an enclosure originally designed for your specific environmental needs.
Does a higher IP rating always mean better?
Not necessarily. The choice depends on the application. An IP67 rating, which protects against temporary water immersion, is essential for marine environments or areas with flood risk. However, for many terrestrial applications, a well-designed IP65 enclosure provides ample protection against rain and dust at a lower cost. The key is to match the solar enclosure design to the real-world conditions it will face.
How does temperature affect my IP-rated enclosure?
Temperature has a significant impact. Extreme heat or cold can cause the enclosure materials to expand or contract, potentially compromising the seals. Temperature fluctuations also create pressure differentials that can stress gaskets. A properly designed enclosure uses materials with low thermal expansion and may incorporate a pressure equalization vent to manage these changes without drawing in contaminants.
