Choosing the right equipment for your solar energy system involves many technical details. Among the most critical, yet often misunderstood, is the Ingress Protection (IP) rating. This simple code tells you how well a device is sealed against dust and water. While many high-quality devices carry an IP65 rating, a common question arises: is IP65 enough, or are there situations where you absolutely need the superior protection of IP67? The answer depends entirely on your operating environment and the potential risks your equipment will face.
Decoding the Numbers: What IP Ratings Really Tell You
An IP rating consists of two digits that provide a clear, standardized measure of an enclosure's protective capabilities. Understanding each number separately is the key to making an informed decision for your energy independence.
The First Digit: Unwavering Solids and Dust Protection
In both IP65 and IP67 ratings, the first digit is '6'. This number represents protection against solid foreign objects, including dust. A rating of '6' signifies that the enclosure is completely dust-tight. No ingress of dust is permitted, making it the highest level of protection available for solids. This is essential for the longevity of sensitive electronics in environments like dusty workshops, agricultural settings, or arid desert regions where fine particulates are a constant threat.
The Second Digit: The Crucial Difference in Water Protection
The second digit is where the distinction between IP65 and IP67 becomes clear. This number indicates the level of protection against the ingress of water.
- IPx5 Protection: A '5' rating means the enclosure can withstand low-pressure water jets projected from a nozzle from any direction. This is sufficient to handle rain, splashes, snow, and even a deliberate cleaning with a garden hose.
- IPx7 Protection: A '7' rating signifies a much higher level of protection. The equipment is certified to withstand temporary immersion in water up to 1 meter deep for 30 minutes without harmful ingress.
| Feature | IP65 Rating | IP67 Rating |
|---|---|---|
| Solid Protection (Dust) | 6 (Dust-tight) | 6 (Dust-tight) |
| Water Protection | 5 (Protected against low-pressure water jets) | 7 (Protected against temporary immersion up to 1m for 30 mins) |
| Common Use Case | Rooftop inverters, outdoor battery enclosures, most portable power stations | Equipment in flood-prone areas, marine applications, demanding field use |
IP65 in Action: Reliable for Most Scenarios
For a majority of residential and commercial solar applications, an IP65 rating provides robust and adequate protection. It ensures that the internal components of your inverters and battery systems remain safe from environmental factors that could compromise their performance and safety.
Where IP65 Excels

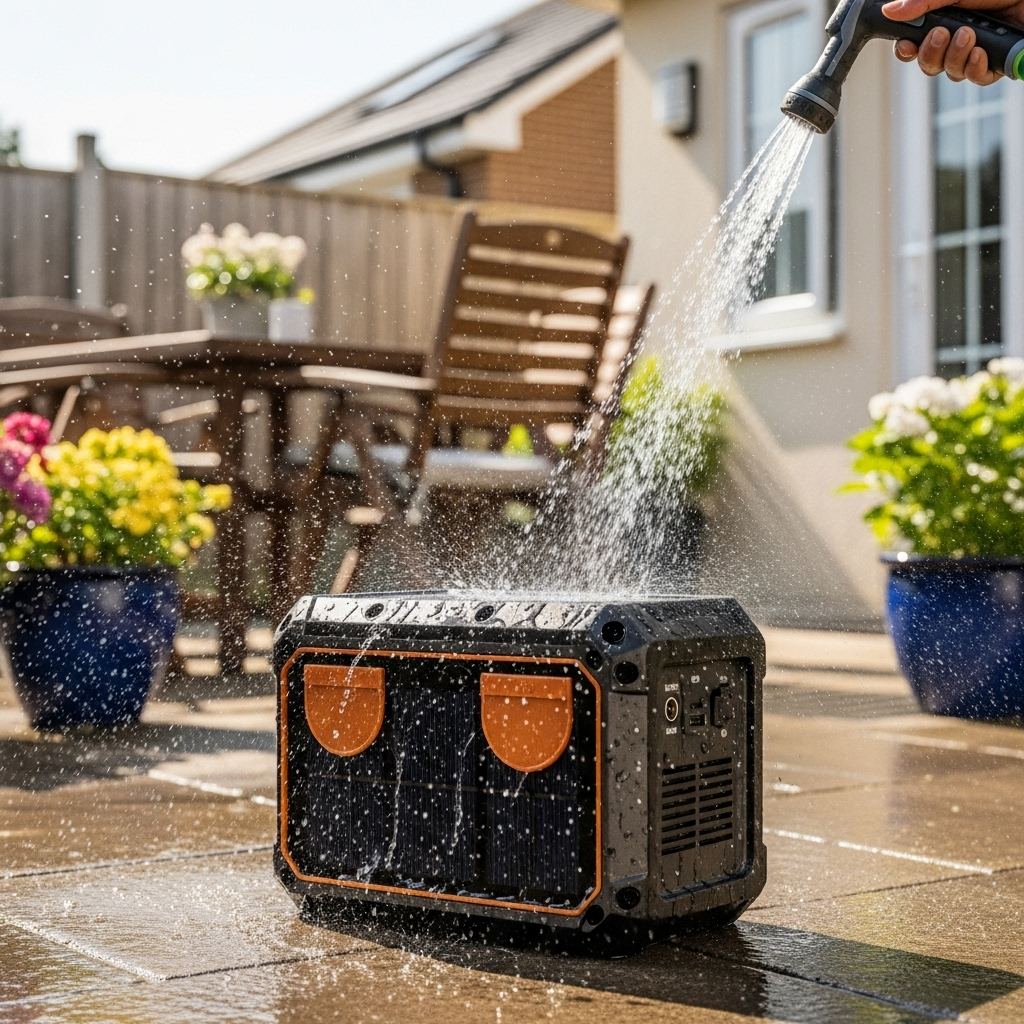

Equipment rated at IP65 is perfectly suited for environments where it may be exposed to precipitation and splashing water. This includes wall-mounted energy storage systems installed on an exterior wall, solar inverters located under an eave, or portable solar generators used at a campsite during a rain shower. The seals are designed to prevent damage from rain, sleet, and routine cleaning, ensuring reliable operation day after day.
The Limits of Jet-Proofing
The protection offered by IP65, while substantial, has its limits. It is not designed to handle submersion of any kind. A system located in a basement prone to flooding, an off-grid setup near a riverbank, or equipment used on a boat dock faces risks that exceed the capabilities of an IP65 enclosure. In these cases, a simple flood or accidental drop could lead to catastrophic failure.
Upgrading to IP67: When Submersion is a Real Risk
Opting for IP67 is not about over-engineering; it's about strategic risk management. In certain environments, the possibility of temporary immersion is a predictable threat, and IP67 provides the necessary safeguard for your investment.
Critical Applications for IP67
IP67 becomes essential in any location where equipment could be temporarily underwater. This includes coastal regions susceptible to storm surges, agricultural applications with irrigation systems, or mobile systems used for environmental monitoring in or near bodies of water. For an off-grid cabin in a floodplain, an IP67-rated battery and inverter system can mean the difference between having power after a storm and facing a complete system replacement. As noted in the IEA's report, Harnessing Variable Renewables, environmental conditions directly impact equipment effectiveness, reinforcing the need for enclosures that can handle extreme weather.
Beyond Water: The Seal of Total Protection
The engineering required to achieve an IP67 rating—stronger seals, precision-fit components, and pressure-resistant housings—offers benefits beyond just water immersion. This superior sealing provides an even more formidable barrier against fine dust and humidity over the long term. This reduces the risk of internal condensation from temperature fluctuations, a common issue that can degrade electronics. A robust physical enclosure is a cornerstone of long-term reliability for any energy system.
The Technical and Financial Trade-Offs
Choosing between IP65 and IP67 involves balancing cost, performance, and risk. The enhanced protection of IP67 comes from more complex design and manufacturing, which influences the final price.
Engineering for Immersion
Creating an IP67-rated product requires significant engineering. Manufacturers use high-grade gaskets, sealed connectors, and often perform individual pressure tests on each unit to validate the seal's integrity. This meticulous process ensures the enclosure can withstand the pressure exerted by one meter of water. These design and quality control steps naturally add to the product's cost compared to its IP65 counterpart.
A Cost-Benefit Analysis for Your System
The decision should be based on a realistic assessment of your environment. If your system is in a dry, elevated location, the additional cost of IP67 may not be justified. However, if there is any reasonable chance of flooding or submersion, the higher upfront cost acts as an insurance policy against total loss. While the IP rating indicates physical durability, it is part of a larger picture. Evaluating the complete capabilities of a solar storage system is crucial. This includes efficiency, battery chemistry, and safety features, as detailed in the ultimate reference on solar storage performance. According to IRENA's analysis on Grid Codes for Renewable Powered Systems, technical requirements for energy systems are constantly evolving to ensure greater reliability, and selecting the appropriate hardware is a key part of this process.
Making the Right Choice for Your Energy Independence
Ultimately, the choice between IP65 and IP67 is not about which is 'better' in a vacuum, but which is right for your specific application. A careful evaluation of your installation environment is the most important step. Consider the worst-case scenarios: Could a severe storm lead to localized flooding? Will the equipment be used near water? Answering these questions honestly will guide you to the correct rating. Selecting the proper enclosure protection is a foundational step in building a resilient and dependable energy system that will serve you for years to come. As grid requirements expand to include even smaller users, making informed, system-friendly choices becomes increasingly important for every individual pursuing energy independence.
Frequently Asked Questions
Can an IP65 device withstand heavy rain?
Yes, IP65 is specifically designed to protect against rain, even when driven by wind. It is tested using low-pressure water jets, which is a more rigorous condition than most natural rainstorms.
Is IP68 better than IP67?
Yes. IP68 indicates protection against continuous, long-term immersion in water under conditions specified by the manufacturer. These conditions are more severe than the 1-meter depth for 30 minutes defined for IP67.
Does a higher IP rating affect the heat dissipation of a battery or inverter?
It can. The robust sealing required for higher IP ratings can make it more challenging to dissipate heat. High-quality designs counteract this with advanced thermal management systems, such as oversized heat sinks, cooling fins, or even liquid cooling, to ensure components operate within their safe temperature ranges.
Why is dust protection so important for solar electronics?
Dust, especially fine or conductive particles, can cause significant damage. It can accumulate inside electronics, leading to short circuits, blocking cooling fans which causes overheating, and forming an insulating layer on components that prevents proper heat dissipation, all of which can lead to premature failure.
