When setting up an off-grid power system, you might ask, 'Will my equipment be safe from rain and dust?' The answer lies in a simple code: the Ingress Protection (IP) rating. This rating is more than just a technical specification; it is a direct indicator of your Energy Storage System's (ESS) ability to withstand the environment. Understanding the difference between common ratings like IP65 and IP67 is fundamental to ensuring the safety, reliability, and longevity of your energy independence.
What is an IP Rating and Why Does It Matter for Your ESS?
An IP rating is a standard used to define the levels of sealing effectiveness of electrical enclosures against intrusion from foreign bodies (like dust and dirt) and moisture. It provides a clear and standardized way to assess the durability of your equipment.
Decoding the Numbers: Dust and Water Protection
The two digits in an IP rating each have a specific role. The first digit rates the protection against solid particles, while the second rates protection against liquids.
- First Digit (Solids): For both IP65 and IP67, the first digit is '6'. This signifies the highest level of protection against solids, meaning the enclosure is completely 'dust tight'. No dust can enter the enclosure, which is critical for protecting sensitive internal electronics.
- Second Digit (Liquids): This is where the main difference appears. A '5' indicates protection against low-pressure water jets from any direction, while a '7' indicates protection against temporary immersion in water.
| Rating | Solid Protection (First Digit) | Liquid Protection (Second Digit) | Real-World Scenario |
|---|---|---|---|
| IP65 | 6 (Dust Tight) | 5 (Protected against water jets) | Heavy rain, water splashes, cleaning with a hose |
| IP67 | 6 (Dust Tight) | 7 (Protected against temporary immersion) | Accidental submersion, temporary flooding, heavy storms |
Beyond the Label: The Link to Electrical Safety
An IP rating is a direct measure of physical defense, which is the first line of defense for electrical safety. Water ingress can lead to short circuits, creating fire hazards and causing catastrophic failure of the battery and inverter. Dust accumulation can clog cooling systems, leading to overheating and reduced performance. As noted in reports on power system infrastructure, the protection of customer facilities is primarily the responsibility of the owner. According to a study by IRENA, Grid Codes for Renewable Powered Systems, proper protection coordination is essential for system stability, a principle that applies just as much to an off-grid ESS as it does to a large utility grid.
IP65 Rated ESS: Reliable Protection Against the Elements?
An IP65 rating provides a solid level of protection for many off-grid applications. It ensures the system can handle most weather conditions without issue.
Defining IP65 Protection: Water Jets

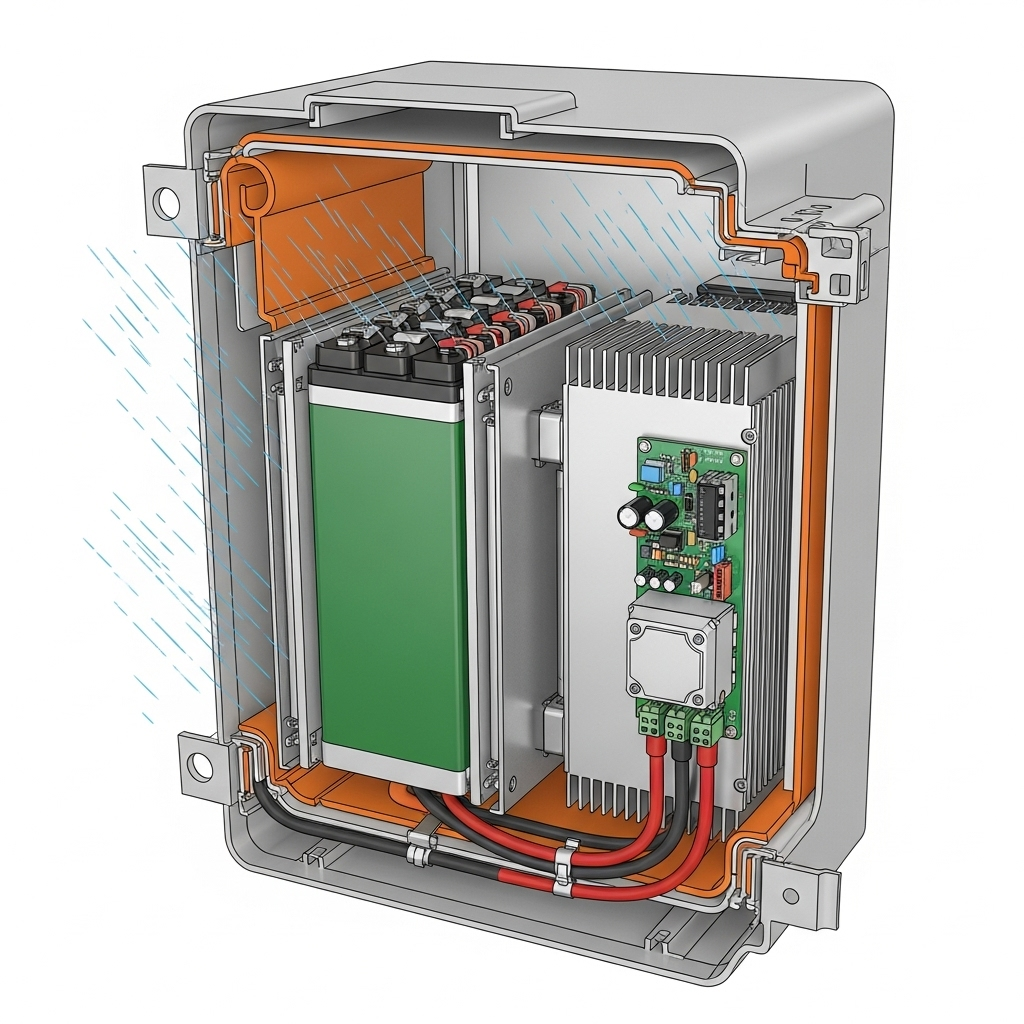

The '5' in IP65 specifies that the enclosure can withstand water projected from a 6.3mm nozzle from any angle. This test simulates exposure to driving rain or being washed down with a hose. For an off-grid ESS, this means it is well-equipped to handle typical outdoor weather, preventing moisture from compromising the internal components like the LiFePO4 cells and the Battery Management System (BMS).
Common Applications and Limitations
An IP65-rated ESS is often suitable for installations that have some form of overhead cover, such as a carport, a covered porch, or inside a well-sealed shed. It provides excellent protection for these common scenarios. However, its limitation is submersion. An IP65 enclosure is not designed to be submerged in water. If your installation area is prone to flash floods or standing water, an IP65 system would be at high risk of failure.
IP67 Rated ESS: The Next Level of Off-Grid Security?
For environments where water exposure is a more serious concern, an IP67 rating offers a significant upgrade in protection and peace of mind.
Defining IP67 Protection: Temporary Immersion
An IP67 rating guarantees that the ESS can be submerged in up to one meter of water for 30 minutes without any leakage. This level of sealing provides a crucial safety margin in harsh conditions. It means that in the event of localized flooding or accidental submersion during transport, the sensitive electronics inside remain completely dry and operational.
When is IP67 a Non-Negotiable Requirement?
An IP67-rated system is the superior choice for certain demanding applications. These include coastal areas with salt spray and high humidity, agricultural settings with irrigation systems, and locations within floodplains. For mobile setups on boats or vehicles, where exposure to severe weather is unpredictable, IP67 provides the resilience needed to protect your power source. Ensuring the physical enclosure can withstand these conditions is fundamental to achieving the long-term reliability discussed in comprehensive guides on solar storage performance.
IP Ratings and System Components: A Deeper Look
The IP rating protects the entire ESS, which is a complex system of interconnected components. Each part benefits from being shielded from the elements.
Protecting the Inverter and BMS
The inverter and BMS are the brains of your off-grid system. The inverter converts DC power from your batteries to AC power for your appliances, and the BMS protects the battery from overcharging, deep discharging, and other hazards. As the International Renewable Energy Agency highlights in its analysis, inverters act as the critical interface between the power source and the load. Moisture can corrode circuit boards in both devices, while conductive dust can create unintended electrical pathways, leading to short circuits. A high IP rating ensures these vital components remain isolated from environmental contaminants.
Thermal Management and IP Ratings
A fully sealed enclosure presents a challenge for heat dissipation. High-power electronics generate significant heat during operation. A well-designed IP67 system incorporates advanced thermal management, often using large external heatsinks or other passive cooling technologies. This allows heat to escape efficiently without requiring vents or fans that would compromise the integrity of the seal, ensuring both safety and optimal performance.
Making the Right Choice for Your Off-Grid System
Selecting the right IP rating involves a careful assessment of your specific needs and environment. It is a balance between cost and risk.
Assessing Your Environment
Ask yourself a few key questions before deciding:
- Will the ESS be installed in a location fully exposed to driving rain?
- Is there any risk of temporary flooding or standing water, even for a short period?
- Is the environment exceptionally dusty, such as a desert, farm, or workshop?
- Will the system be used in a marine or coastal setting with salt spray?
Your answers will point you toward the appropriate level of protection. The principle of anti-islanding, where a power source is safely disconnected, is a core safety tenet in public grids, as detailed in the IRENA report Quality infrastructure for smart mini-grids. Similarly, robust IP protection prevents your personal power 'island' from failing due to environmental hazards.
Cost vs. Long-Term Value
While an IP67-rated ESS may come with a higher initial cost, it can offer greater long-term value by preventing costly damage and system downtime. Consider it an investment in the resilience of your power supply. A failed system during a critical time can cost far more than the initial price difference between two ratings.Disclaimer: This content is for informational purposes only and does not constitute financial or investment advice.
Final Thoughts on System Safety
Choosing between an IP65 and IP67 rating is a crucial decision that directly impacts the safety and reliability of your off-grid ESS. It goes beyond simple weatherproofing; it is about safeguarding your investment and ensuring that your power supply remains dependable when you need it most. By matching the IP rating to your specific environmental challenges, you build a truly resilient system capable of providing energy independence for years to come.
Frequently Asked Questions
Can an IP65-rated ESS be used outdoors?
Yes, an IP65-rated system is designed for outdoor use and can withstand elements like rain and windblown dust. However, for maximum longevity, it is best installed with some overhead protection from direct, prolonged downpours and away from areas where water can pool.
Is a higher IP rating always better?
Not necessarily. A higher rating is better for harsher environments, but it may be unnecessary and more costly if the installation location is relatively protected. For example, an ESS installed inside a garage or a well-built shed may only require an IP65 rating. The best rating is the one that correctly matches the environmental risks.
How do IP ratings affect the warranty of an ESS?
Mis-matching the IP rating to the environment can void your warranty. Manufacturers specify the operational conditions for their products. If an IP65-rated unit is damaged by flooding, the warranty claim will likely be denied because the product was used outside of its certified protection limits. Always adhere to the installation guidelines provided by the manufacturer.
