You need reliable power in unpredictable environments. Whether on a remote job site, during a power outage, or at a campsite, the last thing you want is for your power source to fail because of a little dust or rain. Standard electronics are fragile in the face of the elements. This is where an IP65 rating on a solar generator becomes a promise of resilience. But this is not just about a number on a specification sheet. It represents a unit's ability to withstand demanding, real-world conditions, proven through a series of intense tests.
What Does the IP65 Rating Actually Signify?
The IP code, or Ingress Protection rating, is a standardized system used to classify the degree of protection provided by an enclosure for electrical equipment. It gives you a clear and concise way to assess a device's resistance to foreign objects and moisture.
Decoding the 'IP' Code
The two digits in an IP rating each have a specific purpose. The first digit rates the protection against solid objects, like dust and debris, on a scale from 0 to 6. The second digit rates protection against liquids, like water, on a scale from 0 to 8.
- First Digit (6): Total Dust Ingress Protection. A rating of '6' is the highest possible for solid particle protection. It signifies that the enclosure is completely sealed against dust. No amount of fine sand, dirt, or powder can penetrate the casing and compromise the internal electronics. This is critical for operation in deserts, construction sites, or windy locations.
- Second Digit (5): Protection Against Water Jets. A rating of '5' means the enclosure can withstand low-pressure water jets projected by a nozzle (6.3mm) from any direction. This is more intense than just rainfall; it simulates conditions like being sprayed down with a hose, heavy storms with driving rain, or significant splashing.
IP65 vs. IP67: A Practical Comparison
You might also see an IP67 rating. The key difference lies in water protection. An IP67-rated device can be temporarily submerged in water up to 1 meter deep for 30 minutes. While this sounds superior, IP65 protection is often more than adequate for most real-world solar generator applications.
| Scenario | IP65 Performance | IP67 Performance |
|---|---|---|
| Heavy Rainstorm | Protected | Protected |
| Hose Down for Cleaning | Protected | Protected |
| Accidental Drop in a Puddle | Likely Protected (briefly) | Fully Protected |
| Submersion in a Lake | Not Protected | Protected (temporarily) |
For most above-ground uses, where the primary risk is rain or splashing, an IP65-rated generator provides robust protection without the added cost often associated with full submersion capabilities.
The Gauntlet: 9 Torture Tests for Certification
Achieving an IP65 rating is not a simple claim; it requires passing a series of standardized tests. These procedures are designed to simulate harsh environmental conditions to verify the product's durability. According to the IEA's Getting Wind and Solar onto the Grid report, certification is a vital tool for ensuring that generators meet established requirements. These tests push the equipment to its limits.
1. The Dust Chamber Test
To verify the '6' in IP65, the generator is placed inside a sealed chamber. Fine talcum powder is then circulated by air currents all around the unit for several hours. Afterward, the unit is opened and inspected meticulously. The success criterion is simple: zero dust inside.

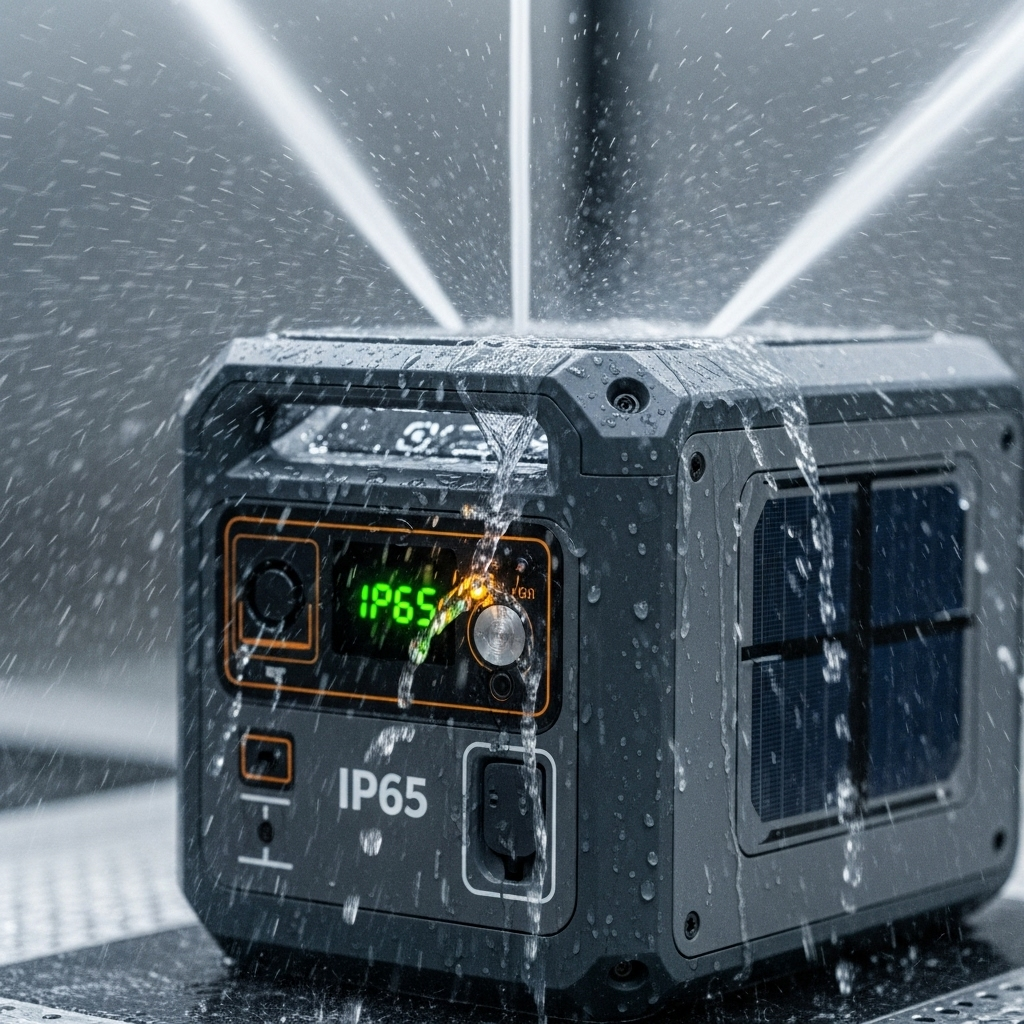

2. The Water Jet Nozzle Test
This test validates the '5' rating. A calibrated nozzle sprays 12.5 liters of water per minute at the generator from all possible angles. The test is conducted for at least three minutes to ensure that the seals and gaskets can withstand sustained, direct streams of water.
3. Extreme Temperature Cycling
A generator's materials expand and contract with temperature changes. This test subjects the unit to rapid shifts between extreme heat (e.g., 60°C / 140°F) and freezing cold (e.g., -20°C / -4°F). This cycling checks for cracks in the casing and ensures the seals remain effective under thermal stress.
4. Vibration and Shock Test
To simulate being transported in a vehicle over rough roads, the generator is secured to a vibration table. This test shakes the unit at various frequencies and intensities, ensuring that internal components, battery connections, and wiring remain secure and undamaged.
5. Salt Spray Test
For anyone using their equipment near the coast, corrosion is a major concern. In this test, the generator is placed in a chamber filled with a dense, saltwater fog for an extended period, often 96 hours or more. This process accelerates aging to check for corrosion on metal connectors, screws, and other external components.
6. Drop and Impact Test
While not an official part of the IP standard, reputable manufacturers conduct impact tests. This involves dropping the unit from a specified height onto a hard surface. It tests the structural integrity of the enclosure and its ability to protect the sensitive internal electronics from accidental drops.
7. UV Exposure Test
A generator used outdoors will be exposed to sunlight. This test uses powerful UV lamps to simulate years of sun exposure in a condensed timeframe. The goal is to check for any degradation, discoloration, or embrittlement of the plastic casing that could compromise its protective qualities.
8. Humidity Test
In humid climates, moisture can slowly work its way past seals. The humidity test places the generator in an environment with very high relative humidity (e.g., 95%) for many days. It verifies that atmospheric moisture will not penetrate the enclosure and cause short circuits or corrosion over time.
9. Connector Durability Test
The ports and connectors on a generator are potential weak points for ingress. This test involves repeatedly plugging and unplugging cables to simulate long-term use. It ensures the protective covers and the seals around the ports do not wear out and continue to provide a tight seal.
Beyond the Rating: Real-World Durability
A sticker with a rating is one thing; consistent, reliable performance is another. Choosing a product from a manufacturer that invests in comprehensive testing provides confidence in your equipment.
Why Certified Compliance Matters
A rating without third-party verification is just a marketing claim. The process of testing and certification ensures that a product truly meets the standards it claims to. The U.S. Department of Energy has also highlighted the importance of robust testing protocols to qualify superior renewable energy modules, a principle that applies directly to the generators that store this energy. This verification process is crucial for establishing trust and ensuring reliability.
Linking Durability to Performance
A durable, well-sealed enclosure directly protects the heart of the solar generator: the high-performance LiFePO4 batteries, the inverter, and the charge controller. Preventing dust and water from reaching these components is fundamental to ensuring a long and efficient service life. The external shell's toughness is directly linked to the system's internal health. For a closer examination of the internal components and their operational metrics, you can review this detailed guide on solar storage performance.
Making an Informed Choice
An IP65-rated solar generator offers a high level of protection for the vast majority of outdoor and emergency power situations. It is engineered to withstand dust, dirt, and significant rainfall, giving you one less thing to worry about. When selecting a unit, consider your primary use case. Are you in a dusty desert, a rainy coastal region, or a humid climate? Understanding what these torture tests entail allows you to see beyond the numbers and appreciate the engineering that goes into a truly durable and weatherproof solar generator. This knowledge helps protect your investment and secures your access to power, no matter the conditions.
Frequently Asked Questions
Can I leave an IP65 solar generator in the rain permanently?
While an IP65 rating protects against rain and water jets, the unit is not designed for permanent, unprotected exposure to the elements. For maximum longevity, it is best to use it under a covered area or store it indoors when not in use for extended periods, especially during extreme weather.
Is an IP65 generator completely waterproof?
No. 'Waterproof' typically implies that full and continuous submersion is possible. IP65 is highly water-resistant, meaning it can handle jets of water, but it cannot be submerged. For submersion protection, you would need a rating of IP67 or higher.
Does the IP rating apply to the solar panels too?
The IP65 rating applies specifically to the generator unit itself. Solar panels have their own separate IP ratings, which are typically IP67 or IP68, as they are designed for permanent outdoor installation and exposure to all weather conditions.
