Ultimate guide: IP67 ratings and ASTM B117 for mobile solar

Operating mobile solar equipment in a marine environment introduces a formidable challenge: salt. The corrosive nature of salt spray and sea air can rapidly degrade electronics, connectors, and structural components. To safeguard your investment, you need equipment built to withstand these harsh conditions. Two key standards provide a clear measure of durability: the IP67 rating for water and dust protection, and the ASTM B117 test for salt spray corrosion resistance. Understanding these certifications is vital for selecting gear that performs reliably at sea.

Decoding IP Ratings: What IP67 Means for Your Gear

The Ingress Protection (IP) rating is a universal standard that classifies the degree of protection an enclosure provides against the intrusion of foreign objects (like dust and dirt) and moisture. This rating is fundamental for any electronic device intended for outdoor or mobile use, especially near water.

Understanding the Ingress Protection (IP) Code

An IP rating consists of two digits. The first digit, from 0 to 6, indicates the level of protection against solid particles. A '6' signifies that the enclosure is completely dust-tight. The second digit, from 0 to 8, rates the protection against liquids. A higher number indicates greater resistance to water ingress.

Why IP67 is a Benchmark for Marine Applications

An IP67 rating confirms two critical attributes. The '6' ensures that fine particles like sand and dust cannot penetrate the enclosure, protecting sensitive internal electronics. The '7' certifies that the device can withstand being submerged in up to one meter of water for 30 minutes. For marine solar equipment, this means it can handle heavy rain, powerful splashes, and even a brief accidental drop overboard without failing. This level of sealing is a strong baseline for devices like solar charge controllers, battery casings, and power station outlets.

Beyond the Numbers: Practical Implications of IP67

An IP67 rating provides confidence in real-world scenarios. A portable power station on the deck of a boat can take a wave over it. A solar panel's junction box can endure relentless sea spray. It is important to recognize that IP67 addresses the sealing of an enclosure against water entry. It does not, however, guarantee that the exterior materials will resist corrosion. That is where a different standard becomes essential.

The Ultimate Test: ASTM B117 and Salt Spray Corrosion

While an IP rating protects the inside of a device, the ASTM B117 standard helps determine how the outside will survive a corrosive saltwater environment. This test is one of the most widely established methods for evaluating corrosion resistance.

What is the ASTM B117 Standard?

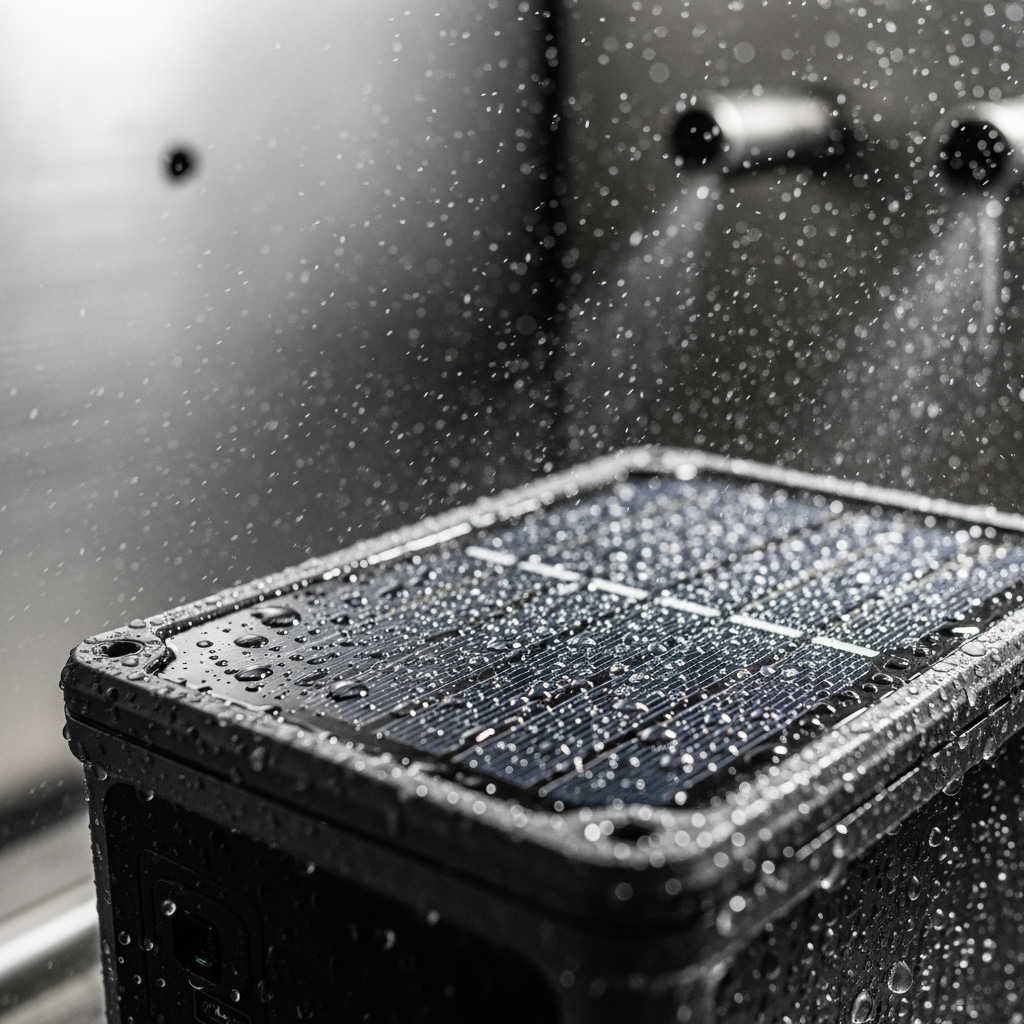

ASTM B117 is an accelerated corrosion test that simulates harsh atmospheric conditions in a controlled laboratory setting. Equipment is placed inside a sealed salt spray cabinet where a heated, atomized 5% sodium chloride solution is continuously applied. This dense, salty fog creates an extremely corrosive environment, allowing manufacturers to assess the long-term effects of salt exposure in a matter of hours or days, rather than years.

How ASTM B117 Results Translate to Real-World Durability

The outcome of an ASTM B117 test is typically measured by the number of hours a product can endure the salt spray before showing signs of corrosion, such as rust or pitting. A product that successfully passes hundreds of hours of this test is far more likely to withstand the rigors of a coastal or marine setting. As the International Renewable Energy Agency (IRENA) highlights, standards for salt mist corrosion are a key part of ensuring PV module quality and safety. For mobile solar, this applies to panel frames, mounting hardware, and metal enclosures, which are all vulnerable to rapid deterioration without proper protective coatings or material choices.

Integrating IP67 and ASTM B117 for Maximum Protection

For truly resilient marine solar equipment, you need protection from both water ingress and material corrosion. The most durable products are those designed and tested to meet both types of challenges. One standard alone is not enough.

Why Both Standards Matter

Think of it this way: an IP67-rated steel toolbox will keep your tools dry if it falls in the water, but the box itself will eventually rust on the outside. Conversely, a corrosion-resistant aluminum frame might not rust, but if its junction box is poorly sealed, water can get in and destroy the electronics. A product that carries an IP67 rating and has also been validated through ASTM B117 testing offers comprehensive protection—its internal components are safe from moisture, and its external structure is built to resist degradation from salt.

Evaluating Equipment: What to Look For

When reviewing technical specifications for mobile solar gear, look for explicit mentions of both ratings. Manufacturers of high-quality, marine-ready equipment will proudly display an IP67 certification and often provide details on their salt spray testing performance. The performance of any energy system is linked to its physical construction. As outlined in this detailed reference on solar storage performance, enclosure quality is a critical factor for longevity. A system that combines a high IP rating with verified corrosion resistance will deliver safer and more reliable power over its lifespan. The International Energy Agency's Technology Roadmap for Solar Photovoltaic Energy also notes that performance degradation is closely linked to climate, making robust construction essential for durability.

A System-Wide Approach

A resilient mobile solar setup depends on every component being up to the task. The solar panels, charge controller, battery, inverter, and even the cables and connectors should all be rated for marine conditions. A single weak link, like an unsealed connector or a rust-prone mounting bracket, can compromise the entire system. Building a durable system requires a holistic approach where every part is chosen for its ability to withstand the elements. According to a report by the IEA on The State of Clean Technology Manufacturing, consistency in production quality is a cornerstone of reliability, a principle that applies directly to the components of a mobile solar system.

Summing Up Your Path to a Resilient System

Navigating the specifications for mobile solar equipment can seem complex, but focusing on key durability standards simplifies the process. The IP67 rating assures you that a device is sealed against dust and temporary water immersion, protecting its internal electronics. The ASTM B117 salt spray test provides proof that its external materials and coatings can resist the corrosive power of sea air. By seeking out products that feature both of these qualifications, you can build a mobile solar system that is truly prepared for the demands of the marine environment, ensuring a reliable source of power for years to come.

Frequently Asked Questions

Is IP68 better than IP67 for marine use?

IP68 certifies protection against continuous submersion at depths greater than one meter, with the exact conditions defined by the manufacturer. While technically a higher rating, IP67 is generally more than sufficient for surface-level marine applications like boating or coastal use. IP68 becomes relevant only if you anticipate the equipment will be submerged for extended periods.

Can a product without an ASTM B117 rating still be good for marine use?

It is possible for a product made with marine-grade materials like 316 stainless steel or 5052 aluminum alloy to perform well without formal ASTM B117 testing. However, a certified test result offers independent verification of its corrosion resistance. This validation provides a much higher degree of confidence in the product's long-term durability.

Does an IP67 rating mean a device is fully 'waterproof'?

The term 'waterproof' can be ambiguous. IP67 provides a precise definition of water resistance: protection against temporary immersion at a depth of one meter for up to 30 minutes. It does not guarantee protection against high-pressure water jets (covered by IPX6) or prolonged, deep submersion (covered by IP68). Therefore, it is more accurate to describe IP67-rated devices as highly water-resistant for common exposure scenarios.
