10 salt corrosion mistakes that kill portable solar on boats fast

The allure of silent, clean energy on the open water is a powerful motivator for boat owners to adopt portable solar panels. This technology offers true energy independence, powering navigation systems, lights, and refrigerators without the noise and fumes of a generator. However, the marine environment is relentlessly harsh. Salt spray, a constant presence, is a corrosive agent that can quickly degrade and destroy a solar investment. Many solar panel failures on boats are not due to faulty products but to common, avoidable mistakes that accelerate salt corrosion. Understanding these pitfalls is the first step toward ensuring a long-lasting and reliable boat solar system.

Understanding the Enemy: How Salt Corrosion Works

Salt corrosion is an electrochemical process. When saltwater comes into contact with the metal components of a solar panel, it acts as an electrolyte, speeding up the degradation of materials like aluminum and steel. This process doesn't just cause cosmetic rust; it compromises the structural integrity of frames, weakens mounting hardware, and can even penetrate seals to damage the sensitive solar cells within. The result is a significant drop in performance and, eventually, complete system failure.

The Science of Salt Spray Damage

Salt spray damage begins when salt crystals settle on panel surfaces. These crystals attract and hold moisture, creating a persistently corrosive environment even when the panel isn't being directly sprayed. This salty film also blocks sunlight, reducing the panel's efficiency. Over time, the corrosive action can breach protective coatings on frames and eat away at electrical connections, leading to increased resistance, heat generation, and critical power loss.

Not All Panels Are Created Equal

A critical error is assuming any solar panel will suffice in a marine environment. Panels designed for residential rooftops are not built to withstand the constant assault of salt and moisture. Marine-grade panels undergo specific testing to certify their resistance to these harsh conditions. According to the International Electrotechnical Commission, the IEC 61701 is the standard that evaluates a PV module's resistance to salt mist. Panels with this certification use materials and construction techniques designed for longevity at sea, such as anodized aluminum frames and high-quality sealants.

Critical Installation and Placement Errors

Even the best marine-grade panel can fail if installed improperly. Installation mistakes create vulnerabilities that salt spray will inevitably exploit, leading to premature failure of your boat solar system.

Mistake 1: Choosing Non-Marine Grade Panels

Using a standard solar panel on a boat is a recipe for rapid decay. These panels often use untreated aluminum frames and steel components that corrode quickly in salty air. Look for panels that explicitly state they are for marine use and have features like anodized aluminum frames, which have a protective oxide layer that resists corrosion. The junction boxes should also be completely sealed and have a high IP (Ingress Protection) rating, such as IP67 or IP68, to prevent moisture intrusion.

Mistake 2: Poor Mounting and Hardware Choices

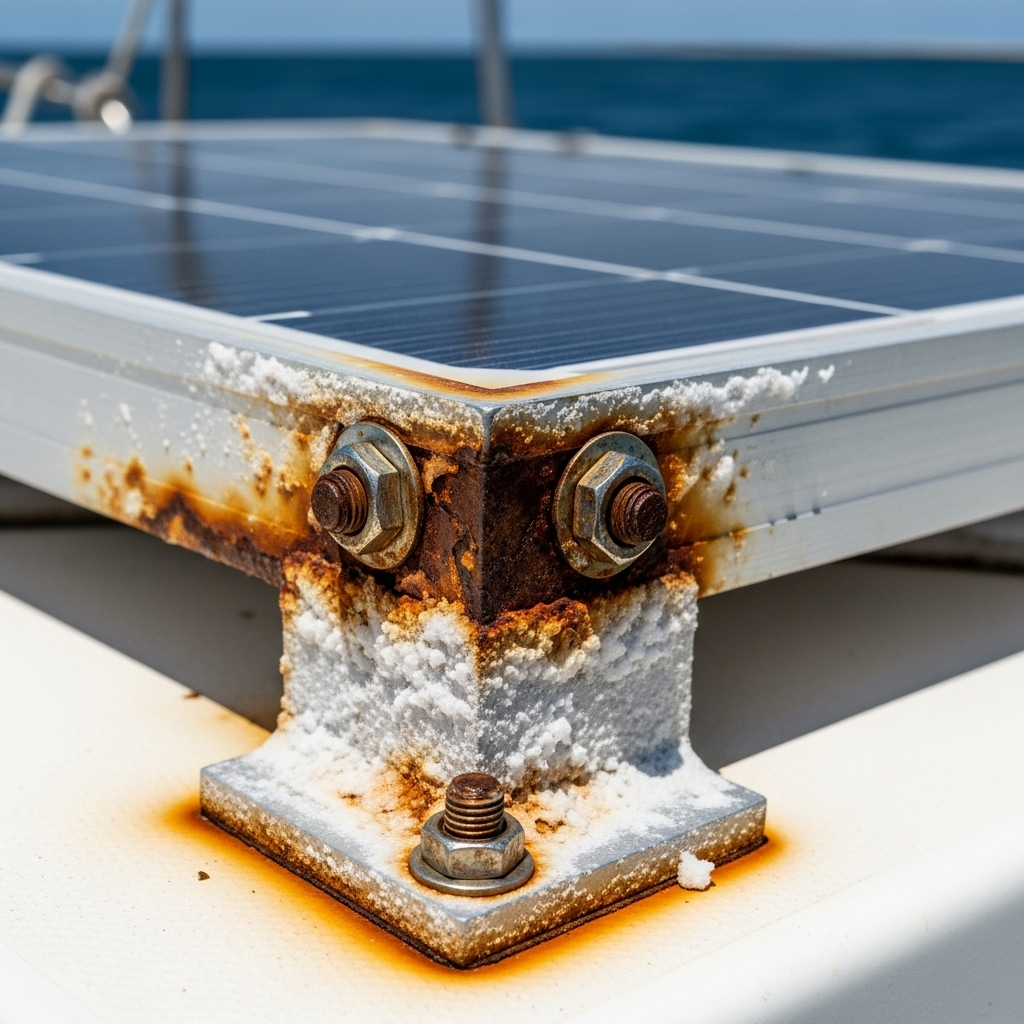

A frequent and fatal mistake is using the wrong hardware. Mounting a corrosion-resistant panel with galvanized or standard steel nuts, bolts, and brackets creates a scenario for galvanic corrosion. This occurs when two dissimilar metals are in electrical contact in the presence of an electrolyte like saltwater, causing the less noble metal to corrode rapidly. Always use high-quality, marine-grade 316 stainless steel for all mounting hardware to ensure the entire assembly resists corrosion uniformly.

Mistake 3: Ignoring Panel Location and Angle

Where you place your panels matters. Mounting them in an area that receives constant, heavy sea spray—like low on the bow or near the waterline—dramatically increases their exposure to corrosive salt. Whenever possible, install panels in higher, drier locations. Additionally, ensure the panels are mounted at a slight angle. This allows water to run off freely, preventing saltwater from pooling, evaporating, and leaving behind destructive salt crystal deposits.

The Overlooked Dangers in Wiring and Connections

The electrical connections are often the weakest link in a marine solar setup. Saltwater is highly conductive and will exploit any weakness in your wiring, leading to shorts, power loss, and dangerous situations.

Mistake 4: Using Standard Electrical Connectors

Standard electrical connectors are not designed to be waterproof. In a marine environment, they will fail. Use marine-grade connectors with high IP ratings, like IP67 or IP68, which are certified to be dust-tight and can withstand temporary or even continuous submersion. MC4 connectors are a common standard for solar, but ensure they are from a reputable manufacturer and properly seated to create a watertight seal.

Mistake 5: Inadequate Wire Sealing and Protection

Any nick or abrasion in a wire's insulation is an entry point for saltwater. It's crucial to use marine-grade PV wire, which is typically tinned. Tinning the copper strands makes them highly resistant to corrosion. Ensure all connections are sealed with adhesive-lined heat shrink tubing to create a durable, waterproof barrier that protects the underlying wire from the corrosive marine environment.

Mistake 6: Neglecting the Junction Box

The junction box on the back of the solar panel protects critical electrical connections. If its seal is compromised, saltwater can get inside and corrode the diodes and terminals, quickly leading to panel failure. Before installation, inspect the junction box seal for any signs of damage. For added protection in very harsh environments, you can apply a bead of marine-grade sealant around the edge of the box.

Maintenance Missteps That Shorten Panel Lifespan

Once installed, a solar system is not a 'set it and forget it' affair, especially on a boat. Proper maintenance is essential to combat the constant threat of salt corrosion and ensure the system's longevity and performance.

Mistake 7: Infrequent or Improper Cleaning

Allowing a layer of salt and grime to build up on your panels is a major error. This buildup not only reduces efficiency by blocking sunlight but also holds moisture against the panel's surface, accelerating corrosion of the frame and seals. Regularly rinse the panels with fresh water to dissolve and wash away salt deposits. This simple step can dramatically extend the life of your panels.

Mistake 8: Using Harsh Chemicals for Cleaning

When cleaning your panels, resist the temptation to use abrasive cleaners, harsh detergents, or stiff brushes. These can scratch the panel's glass surface and damage the anti-reflective and protective coatings. A gentle wash with a soft cloth or sponge and fresh water is all that is needed. If stubborn grime is present, a mild, biodegradable soap can be used, followed by a thorough freshwater rinse.

Mistake 9: Ignoring Regular Inspections

Corrosion starts small. A tiny bubble of rust on a screw or a small patch of oxidation on the frame can quickly spread if left unchecked. Conduct regular visual inspections of your entire system at least twice a year. Check all mounting hardware, electrical connections, and panel frames for any signs of corrosion. Catching it early allows you to address the issue before it becomes a system-threatening problem.

Mistake 10: Poor Storage Practices

For removable or truly portable solar panels, how you store them is just as important as how you use them. Storing a panel in a damp, salty bilge or a poorly ventilated locker can be just as damaging as leaving it on deck. If you remove your panels for storage, rinse them thoroughly with fresh water, allow them to dry completely, and store them in a dry, well-ventilated location.

Protecting Your Solar Investment on the Water

Harnessing solar power on a boat provides unparalleled freedom, but it requires an awareness of the challenges posed by the marine environment. By avoiding these ten common mistakes, you can protect your investment and ensure your portable solar panels provide reliable, clean energy for years to come. Success hinges on selecting the right marine-grade equipment, employing meticulous installation practices, and committing to a routine of regular inspection and maintenance. These proactive steps will defeat salt corrosion and keep your system performing at its peak, season after season. Consistent maintenance not only prevents physical degradation but also ensures optimal energy output, a critical factor explored in this comprehensive guide on solar storage performance.

Frequently Asked Questions

How can I tell if my solar panel is marine-grade?

Look for specific certifications and features. A key indicator is the IEC 61701 salt mist corrosion test certification, which ensures the panel has been tested for durability in salty environments. Other features include anodized aluminum or stainless steel frames, tinned copper wiring, and junction boxes with an IP67 or IP68 rating.

What is the best way to clean solar panels on a boat?

The best method is to rinse them regularly with fresh water to remove salt deposits. For more thorough cleaning, use a soft cloth or sponge with a mild, biodegradable soap, and then rinse completely with fresh water to avoid leaving any residue. Never use abrasive materials or harsh chemicals that could scratch the panel's surface.

Can I repair a solar panel damaged by salt corrosion?

Minor surface corrosion on the frame or mounting hardware can sometimes be addressed. You can clean the affected area, remove the corrosion, and apply a protective, corrosion-resistant coating. However, if corrosion has penetrated the junction box or compromised the seals around the glass, leading to moisture inside the panel, the damage is likely irreversible and the panel will need to be replaced.

How often should I inspect my boat's solar system?

In a marine environment, it is recommended to inspect your solar system at least twice a year. Check for any signs of corrosion on the panel frames, mounting hardware, and electrical connections. Ensure all connections are tight and that wires are free from chafing or damage. More frequent inspections are wise for boats in particularly harsh, salty conditions.
