Stop galvanic corrosion: fasteners for portable solar at sea

The marine environment presents a unique set of challenges for any equipment. For portable solar systems, the constant exposure to saltwater creates a risk for a silent but destructive process: galvanic corrosion. This electrochemical reaction can degrade structural integrity, leading to equipment failure. Understanding how to select and install the right fasteners is a critical step in protecting your solar investment and ensuring a reliable power source on the water.

Understanding Galvanic Corrosion in a Marine Setting

Galvanic corrosion occurs when two different metals are in electrical contact with each other in the presence of an electrolyte, like saltwater. This combination creates a small electrical circuit, similar to a battery, where one metal corrodes at an accelerated rate to protect the other.

The Science Behind the Damage

Metals can be arranged in a hierarchy known as the galvanic series, which ranks them from most active (anodic) to least active (cathodic). When two metals from different points in the series are connected in an electrolyte, the more anodic metal sacrifices itself, corroding away. For example, if an aluminum solar panel frame is in contact with a stainless steel screw, the aluminum will corrode. Saltwater acts as a highly effective electrolyte, speeding up this entire process significantly.

Why Fasteners Are Uniquely Vulnerable

Fasteners like screws, bolts, and nuts are often the epicenters of galvanic corrosion on a marine solar installation. They are frequently made of a different material than the panel frame or mounting brackets they secure. This creates the dissimilar metal pairing necessary for corrosion. Furthermore, the small surface area of a fastener compared to the large surface area of a panel frame can cause the fastener to corrode very quickly if it is the more anodic material in the pairing.

Selecting the Right Fastener Materials

Choosing the correct material for your fasteners is the first line of defense against galvanic corrosion. The material must be strong enough for the application and highly resistant to the corrosive effects of a saltwater environment.

A Guide to Marine-Grade Metals

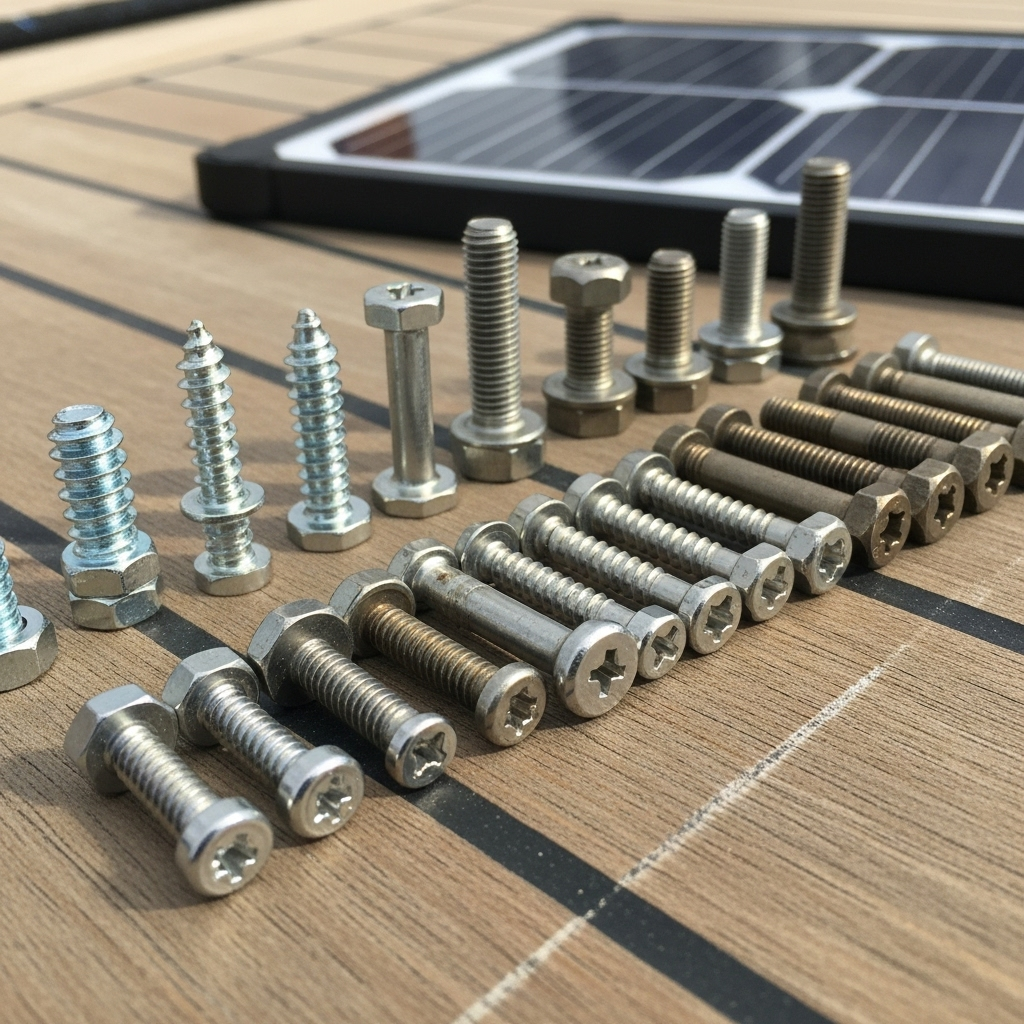

Not all metals are created equal for marine use. Here are some of the most common and effective options for fasteners:

• 316 Stainless Steel: Often called 'marine-grade' stainless steel, 316 contains molybdenum, which provides superior resistance to chloride corrosion compared to the more common 304 stainless steel. It is the go-to choice for most marine solar applications.
• Silicon Bronze: This alloy offers excellent corrosion resistance and high strength, making it a traditional favorite in boat building. It is compatible with many other materials, reducing the risk of a strong galvanic reaction.
• Titanium: For applications demanding the highest level of corrosion resistance and strength-to-weight ratio, titanium is an excellent but more expensive option. It is virtually immune to saltwater corrosion.
• Hot-Dip Galvanized Steel: This involves coating a steel fastener with a layer of zinc. The zinc acts as a sacrificial anode, protecting the steel. However, if the coating is scratched or damaged, the underlying steel can rust quickly.

Material Compatibility: The Galvanic Series in Practice

To prevent issues, select metals that are close to each other on the galvanic series. A large gap between metals, such as between aluminum and bronze, creates a strong potential for corrosion. The challenge of corrosion protection is a major focus in large-scale marine energy. As detailed in the Offshore wind energy: Patent insight report, preventing corrosion is critical for the viability and safety of offshore structures, leading to continuous innovation in materials and protective coatings.

Practical Techniques for Corrosion Prevention

Beyond material selection, proper installation techniques are essential for stopping galvanic corrosion before it starts. The goal is to break the electrical circuit between the dissimilar metals.

The Power of Isolation

The most effective method is to physically separate the fastener from the metal it is securing. This can be accomplished by using non-conductive materials as a barrier. Place nylon or neoprene washers under the head of the screw or bolt. In some cases, a plastic or nylon sleeve can be used to isolate the shaft of the fastener as it passes through the hole. Additionally, using a marine-grade polyurethane or polysulfide sealant when installing fasteners adds another layer of protection by sealing out the saltwater electrolyte.

Cathodic Protection Explained

Cathodic protection is a technique where a more easily corroded metal, a 'sacrificial anode,' is intentionally added to the system. This anode, typically made of zinc, will corrode first, thereby protecting the other more critical metal components. While common for boat hulls and engines, the principles of cathodic protection are a cornerstone of marine engineering. Innovations in this area are frequently seen in patent filings for the offshore wind sector, highlighting its importance in harsh environments.

Maintenance and Inspection Routines

Regular maintenance is crucial for longevity. Routinely rinse your solar panels and mounting hardware with fresh water to wash away salt deposits that can accelerate corrosion. Periodically inspect all fasteners for signs of corrosion, such as rust stains, pitting, or a white, powdery residue around aluminum components. Ensuring all components remain in good health is vital for the system's output and lifespan, a principle that applies to the entire power system as detailed in the ultimate reference for solar storage performance, where component integrity directly impacts overall efficiency.

A Holistic View on Marine Solar Durability

The choice of fasteners may seem like a small detail, but it has a significant impact on the durability and safety of your entire portable solar system. A single failed fastener can lead to a loose panel, water damage, or complete structural failure in rough conditions. The challenge of managing corrosion in saltwater is not new; the IEA's Solar Energy Perspectives report mentions that marine technologies like tidal power plants have been successfully managing saltwater corrosion for over fifty years. Applying these lessons ensures your path to energy independence at sea is a long and reliable one.

Wrapping It Up

Protecting your portable solar equipment from galvanic corrosion is an achievable goal. It starts with making informed choices about materials and follows through with careful installation and consistent maintenance. By selecting marine-grade fasteners like 316 stainless steel, isolating them from dissimilar metals with non-conductive washers and sealants, and performing regular freshwater rinses, you can prevent this silent threat. These steps will safeguard your equipment, ensuring it provides reliable power for all your marine adventures.

Frequently Asked Questions

Can I use 304 stainless steel fasteners for my boat's solar panel?

While 304 stainless steel offers some corrosion resistance, it lacks the molybdenum found in 316, making it more susceptible to pitting and crevice corrosion in saltwater environments. For marine applications, 316 is the recommended minimum to ensure long-term durability.

What are the white, chalky deposits around my aluminum solar panel frame where the screws are?

That is likely aluminum oxide, a tell-tale sign of galvanic corrosion. It indicates the aluminum frame (the anode) is corroding to protect the more noble stainless steel screw (the cathode). You should remove the fastener, clean the area, and reinstall using an isolation method like a nylon washer and marine sealant.

Are plastic or nylon fasteners a good option?

For light-duty applications where high strength is not required, high-quality UV-resistant nylon or other polymer fasteners can be an excellent choice as they completely eliminate the risk of galvanic corrosion. However, for securing a panel that will face significant wind and wave forces, metal fasteners are generally required for their strength and durability.
