How to Validate IP67: Hose-Down, Spray, and Submersion Tests

An IP67 rating on a piece of energy equipment is a mark of resilience. It signals that the device is built to withstand harsh environmental conditions, specifically dust and water. But what does it actually take to earn that rating? The validation process involves a series of controlled, demanding tests designed to simulate real-world exposure. Understanding these procedures—from high-pressure sprays to complete submersion—is key to selecting hardware that delivers on its promises of durability and reliability.

Decoding the IP67 Standard

The IP (Ingress Protection) rating system, defined by the IEC 60529 standard, provides a clear and consistent way to classify the degree of protection an enclosure offers. The two digits in an IP rating each have a specific function, and for IP67, they represent the highest levels of protection against common environmental threats.

What the '6' and '7' Signify

The first digit, '6', indicates total protection against solid particles. This means the enclosure is completely dust-tight. No amount of airborne dust or dirt can penetrate it and interfere with the internal electronics. This is critical for equipment deployed in arid, agricultural, or industrial settings where fine particulates are a constant presence.

The second digit, '7', denotes protection against water ingress. Specifically, it certifies that the enclosure can be temporarily submerged in water under standardized conditions without harmful effects. The test protocol requires the equipment to withstand immersion at a depth of 1 meter for 30 minutes, offering robust defense against flooding, heavy storms, or accidental drops into water.

The Importance of Standardized Validation

Standardized testing ensures that every IP67-rated product meets the same baseline for performance. This removes guesswork and provides a reliable benchmark for comparison. According to the IEA's report, Transforming Global Markets for Clean Energy Products, reliable and repeatable test methods are a core element of any robust product standard. This process of certification is an important tool. As noted in another IEA publication, Getting Wind and Solar onto the Grid, it allows for verification that equipment complies with technical requirements, often through internationally accredited certificates that prove a product meets a certain standard.

The Hose-Down Test: Simulating High-Pressure Cleaning

While the submersion test is the defining characteristic of the '7' in IP67, many high-quality products are also subjected to powerful water jet tests. These tests, formally associated with IP65 and IP66 ratings, are often part of a comprehensive validation process to ensure durability against various forms of water exposure.

Test Parameters and Procedure

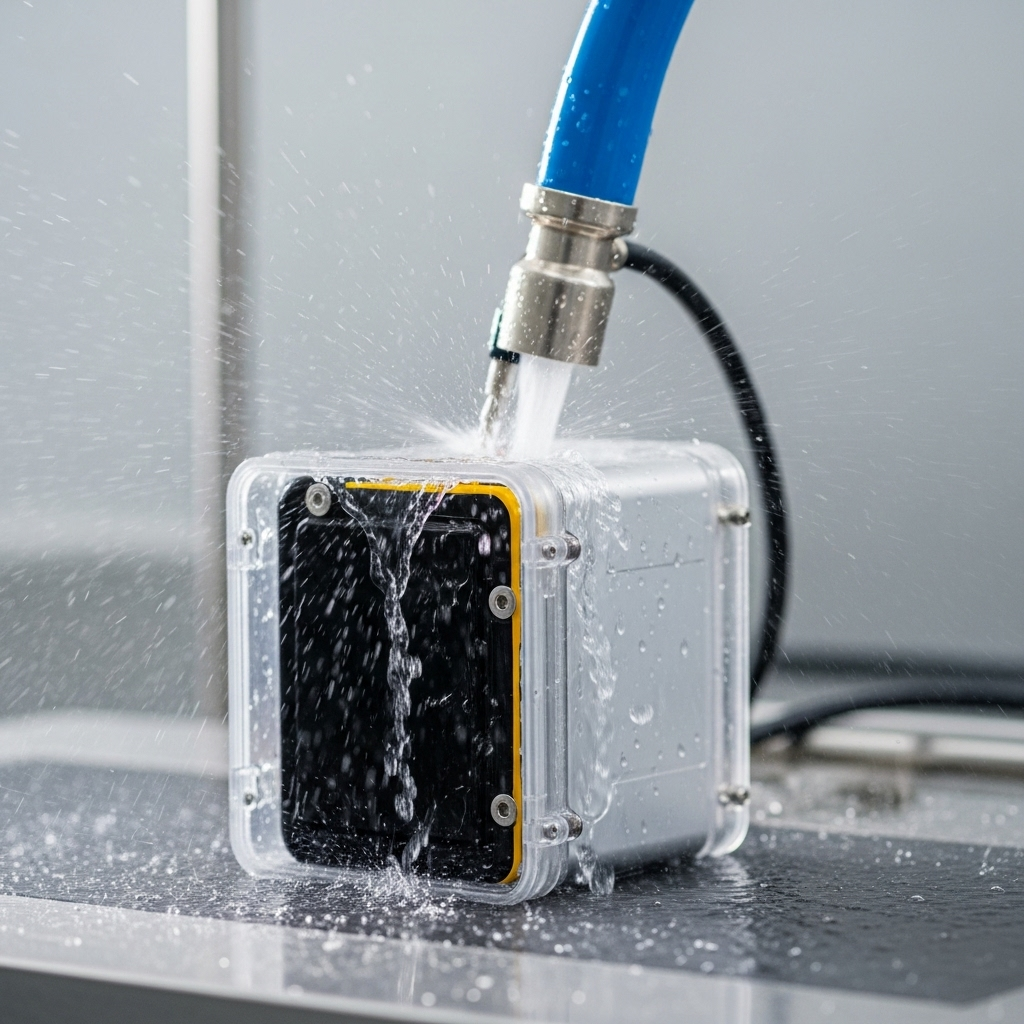

The hose-down test involves subjecting the equipment's enclosure to powerful jets of water from a nozzle. The conditions are precisely controlled to ensure consistency:

• IP65 (Low-Pressure Jet): Water is projected from a 6.3mm nozzle at a flow rate of 12.5 liters per minute from a distance of 3 meters.
• IP66 (High-Pressure Jet): The intensity increases significantly, using a 12.5mm nozzle to project water at 100 liters per minute from the same distance.

During the test, the water jet is aimed at the enclosure from all practicable directions, targeting seams, connectors, and other potential points of failure.

Real-World Relevance

This test simulates scenarios like cleaning solar panels and their junction boxes with a pressure washer, hosing down muddy portable power stations on a work site, or marine equipment being hit by powerful waves. Passing this test demonstrates that the product's seals and gaskets can resist high-pressure water streams, preventing ingress that could lead to short circuits or corrosion.

The Spray Test: A Multi-Directional Water Challenge

A spray test offers a different kind of challenge. Instead of a direct, high-pressure jet, this test simulates exposure to wind-driven rain and splashes from all angles. It is a comprehensive method for verifying the overall integrity of an enclosure's seals.

How It Differs from a Hose-Down

Unlike a single-direction jet, a spray test typically uses an oscillating tube or a spray nozzle that covers a wide area. This ensures that water strikes the enclosure from multiple angles simultaneously, testing the effectiveness of every seal and joint. The test is designed to find weaknesses that a direct jet might miss, making it a crucial part of a holistic validation strategy.

The Submersion Test: The Definitive IP67 Validation

The submersion test is the final and most defining trial for an IP67 rating. It is a simple but unforgiving test of an enclosure's ability to remain watertight under pressure.

The Official Protocol

According to the IEC 60529 standard, the test involves placing the equipment in a tank of water. The bottom of the device is positioned 1 meter below the surface, and the top is at least 15 cm below the surface. It remains there for 30 minutes. Afterward, the unit is removed, dried, and inspected for any water ingress. The presence of even a single drop of water inside the enclosure results in a failure.

When Submersion Resistance Is Crucial

This level of protection is non-negotiable for systems in flood-prone regions, coastal areas, or marine applications. An off-grid kit with an IP67-rated battery enclosure can survive a basement flood that would destroy a lesser system. For portable solar generators used in camping or boating, this rating provides peace of mind that an accidental drop into a lake or exposure to a torrential downpour will not result in a total loss. The ultimate goal is reliable performance, and as explained in the Ultimate Reference for Solar Storage Performance, protecting the internal components like LiFePO4 cells and the Battery Management System (BMS) from the environment is fundamental to achieving that.

A Complete Approach to Validation

An IP67 rating is not just a number; it is a credential earned through rigorous, multi-faceted testing. By subjecting equipment to hose-down, spray, and submersion tests, manufacturers can validate that their products are truly prepared for the demanding conditions of the real world. This commitment to verification, often confirmed by third-party certification bodies, is what separates adequately protected equipment from truly resilient energy solutions. As global energy innovation continues to advance, the development of dedicated test facilities, as highlighted in the IEA's The State of Energy Innovation report, will play a vital role in stress-testing and certifying the next generation of technologies.

Frequently Asked Questions

Can an IP67 device be used permanently underwater?

No. The IP67 rating is for temporary immersion up to 1 meter for 30 minutes. For continuous submersion, you would need a device with an IP68 rating, which has more stringent and often manufacturer-defined parameters.

Is an IP67 rating sufficient for a marine environment?

While IP67 protects against temporary immersion, marine environments also present challenges like saltwater corrosion. Look for products that specify corrosion resistance in addition to a high IP rating for marine use.

Does the hose-down test apply to the IP67 rating?

Strictly speaking, high-pressure water jets are covered by the IP65 (low-pressure jet) and IP66 (high-pressure jet) ratings. However, many high-quality IP67 products are also designed to withstand these conditions as part of a comprehensive durability strategy, ensuring protection against both powerful cleaning and submersion.
