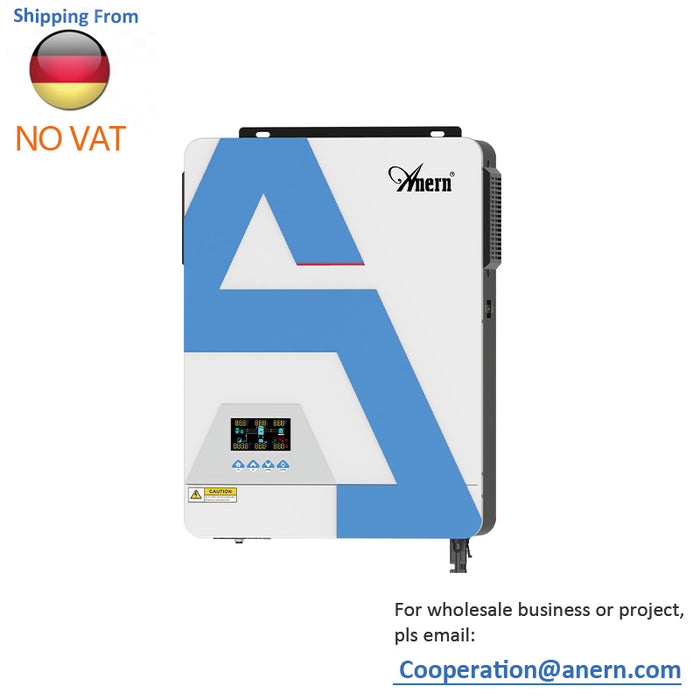

3.6KW On/Off Grid Pure Sine Wave Hybrid Solar Inverter

3.6KW On/Off Grid Pure Sine Wave Hybrid Solar Inverter

by Anern

Description:

· On grid and off grid

· Pure sine wave hybrid solar inverter

· LCD display

· AC/solar charger priority

Package Content:

Package Content:
1 x The Unit,1 x User Manual,1 x DC Fuse,1 x Ring Terminal,1 x Strain Relief Plate,1 x PV Wire Cover,4 x Screws

The shipping cost and product prices are for reference only, pls leave your demands and contact information, we will send you the quotation soon.

For wholesale business or project, pls email: Cooperation@anern.com

$308.00 - $333.83
$333.83
$308.00 - $333.83
$333.83
AN-SCI02-3.6KW: PRO series With Wifi Module

Video of 3.6KW On/Off Grid Pure Sine Wave Hybrid Solar Inverter

    Specification of 3.6KW On/Off Grid Pure Sine Wave Hybrid Solar Inverter

    Model

    SCI02-Pro-3600

    RATED POWER

    3600W

    INPUT

    Voltage

    230 VAC

    Selectable Voltage Range

     170-280 VAC (For Personal Computers)

    90-280 VAC (For Home Appliances)

    Frequency Range

    50 Hz/60 Hz (Auto sensing)

    OUTPUT

    AC Voltage Regulation (Batt. Mode)

    230VAC ± 5%

    Surge Power

    7200VA

    Efficiency (Peak) PV to INV.

    97%

    Efficiency (Peak) Battery to INV.

    94%

    Transfer Time

    10 ms (For Personal Computers) ; 20 ms (For Home Appliances)

    Waveform

    Pure sine wave

    BATTERY & AC CHARGER

    Battery Voltage

    24 VDC

    Floating Charge Voltage

    27 VDC

    Overcharge Protection

    33 VDC

    SOLAR CHARGER

    Maximum PV Array Power

    6200 W

    MPPT Range @ Operating Voltage

    90 ~ 450 VDC

    Maximum PV Array Open Circuit Voltage

    500 VDC

    Maximum Charging Current

    120A

    Maximum Efficiency

    98%

    Grid-Tie Operation

    Inverter Mode

    3600W

    Nominal Output Voltage

    220/230/240VAC

    Feed-in Grid Voltage Range

    195-253VAC

    Feed-in Grid Frequency Range

    49-51±1Hz

    Nominal Output Current

    15.7A

    Power Factor Range

    >0.99

    PHYSICAL

    Dimension, D x W x H (mm)

    100 x 300 x 444

    Net Weight (kgs)

    10

    Communication interface

    WIFI

    OPERATING ENVIRONMENT

    Humidity

    5% to 95% Relative Humidity(Non-condensing)

    Operating Temperature

    0°C - 55°C

    Storage Temperature

    –15°C - 60°C
    Gross Weight 11kg

    Key Features of 3.6KW On/Off Grid Pure Sine Wave Hybrid Solar Inverter

    • Pure Sine Wave Inverter
    • Self-consumption and feed-in to the grid.
    • Configurable input voltage range for home appliances and personal computers via LCD setting
    • Configurable AC Solar Charger priority via LCD setting
    • Compatible to mains voltage or generator power
    • Auto restart while AC is recovering
    • Overload/ Over temperature/ short circuit protection
    • Smart battery charger design for optimized battery performance
    • Communicate with WIFI（WIFI Monitoring Module is optional）
    • Configurable AC/PV Output usage timer and prioritization
    • System configures quickly into compact, wall-mounted system

    Application of 3.6KW On/Off Grid Pure Sine Wave Hybrid Solar Inverter

    This inverter can power all kinds of appliances in home or office environment, including motor-type appliances such as tube light, fan, refrigerator and air conditioner.
