Off-grid 4KW 6KW 10KW Complete Hybrid Home Electricity Energy Solar System with Gel Battery

Off-grid 4KW 6KW 10KW Complete Hybrid Home Electricity Energy Solar System with Gel Battery

by Anern

Description:

This AN-OFF-SGHP system uses GEL batteries to store the solar energy, Anern Superior Gel technology,more than 10 years design life in float service,recharged after being over-discharged,600+ times at 80% DOD cycle.at the same time, the system can be connected with the grid for utilization of grid power optionally. The system uses battery power in priority, but when sunshine is not so good or loads consumption is too big which caused the battery power inadequacy, then the system can switch automatically to grid power supply. When the batteries restore capacity, the system can switch back to battery power source.

Package Content:

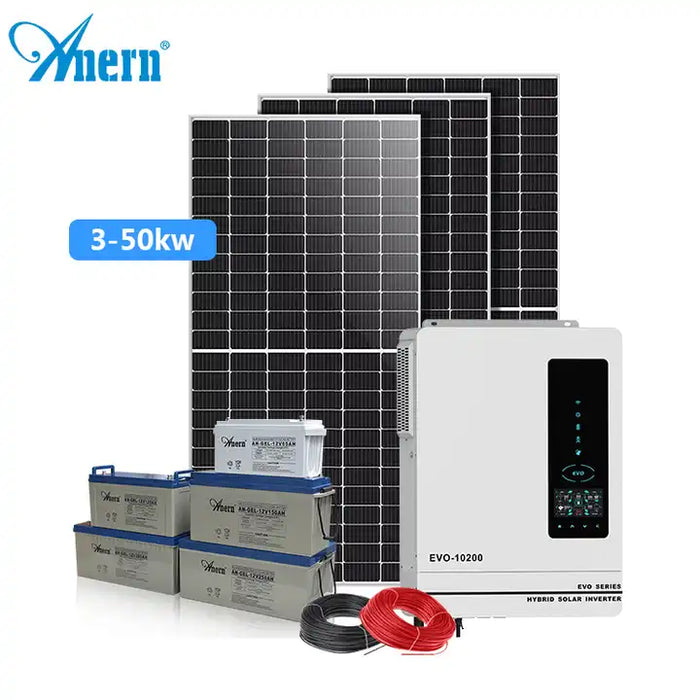

With Half-cell Monocrystalline PV Module(550W), 1pcs Solar Inverter, Gel Battery, Solar Panel Bracket, Cables, 1pcs Circuit Breaker And 1pcs Wifi Monitoring Module

The shipping cost and product prices are for reference only, pls leave your demands and contact information, we will send you the quotation soon.

For wholesale business or project, pls email: Cooperation@anern.com

$2,030.00 - $6,302.00
$6,302.00
$2,030.00 - $6,302.00
$6,302.00
Solar Power System: 10.2KW Off-grid with gel battery

Video of 4KW 6KW 10KW Complete Hybrid Off-grid Home Electricity Energy Solar System



Specification of 4KW 6KW 10KW Complete Hybrid Off-grid Home Electricity Energy Solar System

Solar System

4.2KW Off-grid (with grid switch) Solar System

6.2KW Off-grid (with grid switch) Solar System

10KW Off-grid (with grid switch) Solar System

System Basic Information:

Solar Panels Rated Power: 3300w

Solar Panels Rated Power: 5500w

Solar Panels Rated Power: 9900w



Inverter Rated Output Power: 4200w

Inverter Rated Output Power: 6200w

Inverter Rated Output Power: 10200w

Solar Panel

6pcs 550w Half-cell Monocrystalline PV Module

10pcs 550w Half-cell Monocrystalline PV Module

18pcs 550w Half-cell Monocrystalline PV Module

Solar Inverter

Rated Ouput Power: 4200W

Rated DC Voltage: 24V

Grid Input Voltage: 220VAC

Output Voltage: 220VAC

Max Input Voltage: 500V

Rated Solar Input Power: 6200W

Max Current: 120A

Battery Rated Voltage: 24V

Rated Ouput Power: 6200W

Rated DC Voltage: 48V

Grid Input Voltage: 220VAC

Output Voltage: 220VAC

Max Input Voltage: 500V

Rated Solar Input Power: 6500W

Max Current: 120A

Battery Rated Voltage: 48V

Rated Ouput Power: 10200W*1pcs
Rated DC Voltage: 48V
Grid Input Voltage: 220VAC
Output Voltage: 220VAC
Max Input Voltage: 500V
Rated Solar Input Power: 10800W
Max Current: 160A
Battery Rated Voltage: 48V

GEL Battery

12V/200AH per piece*4pcs

12V/250AH per piece*4pcs

12V/250AH per piece*12pcs

Solar Panel Rack





Roof type mounting rack
including complete fittings,
aluminum alloy
(Rack can be customized per request)

WIFI
Monitoring Module





Monitor, troubleshoot, or communication

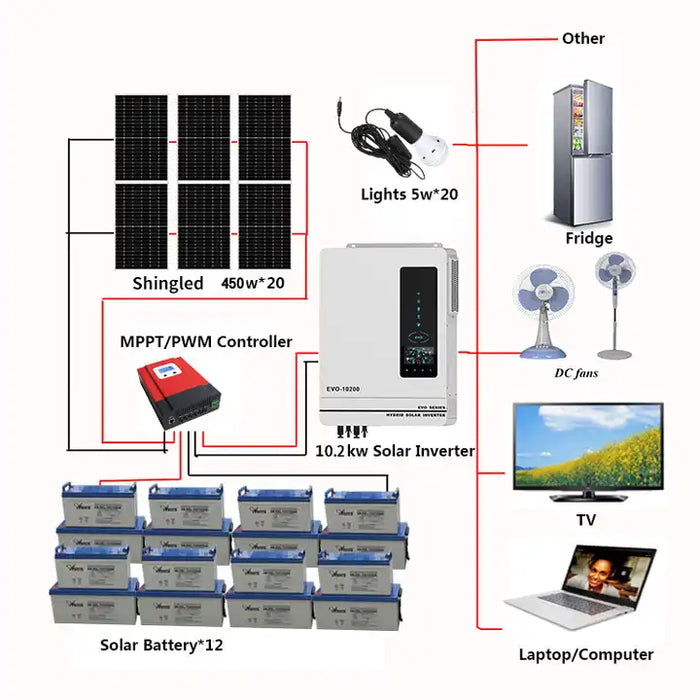

System Working Principle:
This system uses batteries to store the solar energy, at the same time, the system can be connected with the grid for utilization of grid power optionally. The system uses battery power in priority, but when sunshine is not so good or loads consumption is too big which caused the battery power inadequacy, then the system can switch automatically to grid power supply. When the batteries restore capacity, the system can switch back to battery power source.

Terms and conditions:
1. Package: Export standard package suitable for tough handling and sea transport.
2. Delivery: Goods to be ready within 7~30 days depending on order quantity.
3. Warranty: 5 years for solar panel, 2 years for controller/inverter/battery.
4. Certification: CE,ROHS
5. Validity: 30 days.

★★★★★
★★★★★
★★★★★
★★★★★
