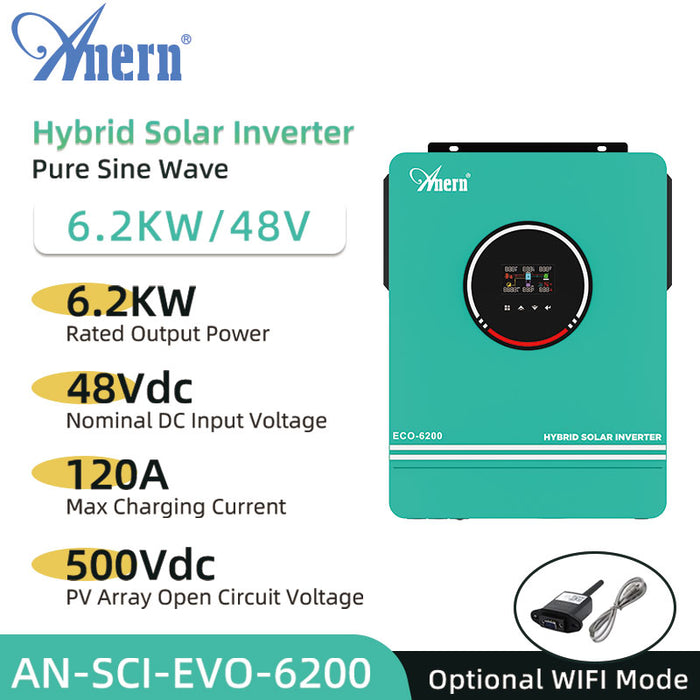

6200W 220-240VAC 48VDC Off-Grid Hybrid Solar Inverter

6200W 220-240VAC 48VDC Off-Grid Hybrid Solar Inverter

by Anern

Description:

◆ Both off-grid & on-grid applications, able to feed surplus solar power into the grid;
◆Nominal Output Voltage：220/230/240VAC
◆ Max charge current 120A;
◆ Max 6200W & 6500W solar input power respectively;
◆ Wide PV input voltage range (90-450VDC);
◆ Dual AC output;
◆ WIFI available for IOS and Android systems.

Package Content:

$339.00 - $366.00
$339.00
$339.00 - $366.00
$339.00
AN-SCI-ECO: 6200w

Specification of 6200W on-grid off-grid inverter

Model

AN-SCI-EVO-6200

RATED POWER

6200W

Maximum PV Input Power

6500W

GRID-TIED OPERATION



PV INPUT (DC)



Nominal DC Voltage/Maximum DC Voltage

360VDC/500VDC

Start-up Voltage/Initial Feeding Voltage

90VDC/120VDC

MPPT DC Voltage Range

90-450VDC

Number of MPPT Trackers/Maximum Input Current

1/27A

GRID OUTPUT (AC)



Nominal AC Output Voltage

220/230/240VAC

AC Output Voltage Range

195.5-253VAC

Nominal AC Output Current

27.0A

Power Factor

>0.99

Feed-in Grid Frequency Range

49-51±1Hz / 59-61±1Hz

EFFICIENCY



Maximum Conversion Efficiency (Solar to AC)

98%

TWO LOADS OUTPUT POWER



Full Load

6200W

Maximum Main Load

6200W

Maximum Second Load (battery mode)

2067W

Main Load Cut Off Voltage

44VDC

Main Load Return Voltage

52VDC

OFF-GRID OPERATION



AC Start-up Voltage/Auto Restart Voltage

120-140VAC/180VAC

Acceptable AC Input Voltage Range

90-280VAC or 170-280VAC

Maximum AC Input Current

40A

Nominal Operating Frequency

50/60Hz

Surge Power

12400W

BATTERY MODE OUTPUT (AC)



Nominal Output Voltage

220/230/240VAC

Output Waveform

Pure sine wave

Efficiency (DC to AC)

94%

BATTERY & CHARGER



Nominal DC Voltage

48VDC

Maximum Charging Current(Solar to AC)

120A

Maximum AC Charging Current

100A

GENERAL



Dimension, D x W x H (mm)

450*350*110mm

Net Weight (kgs)

10

Communication interface

WIFI

Humidity

5% to 95% Relative Humidity (Non-condensing)

Operating Temperature

–10°C - 50°C

Storage Temperature

–15°C - 60°C



Key Features of 6200W on-grid off-grid inverter

 ◆ Compatible for both off-grid & on-grid applications, able to feed surplus solar power into the grid;

 ◆ Be able to run without battery;

 ◆ One-key restoring to factory default settings;

 ◆ Built-in Lithium battery automatic activation;

 ◆ Built-in MPPT solar controller, max charge current 120A;

 ◆ Max 6200W & 6500W solar input power respectively;

 ◆ Wide PV input voltage range (90-450VDC);

 ◆ Built-in anti-dusk kit for harsh environments.

 ◆ Smart battery charge design to maximize battery lifespan

 ◆ Dual AC output;

 ◆ WIFI available for IOS and Android systems.

★★★★★
★★★★★
★★★★★
★★★★★
