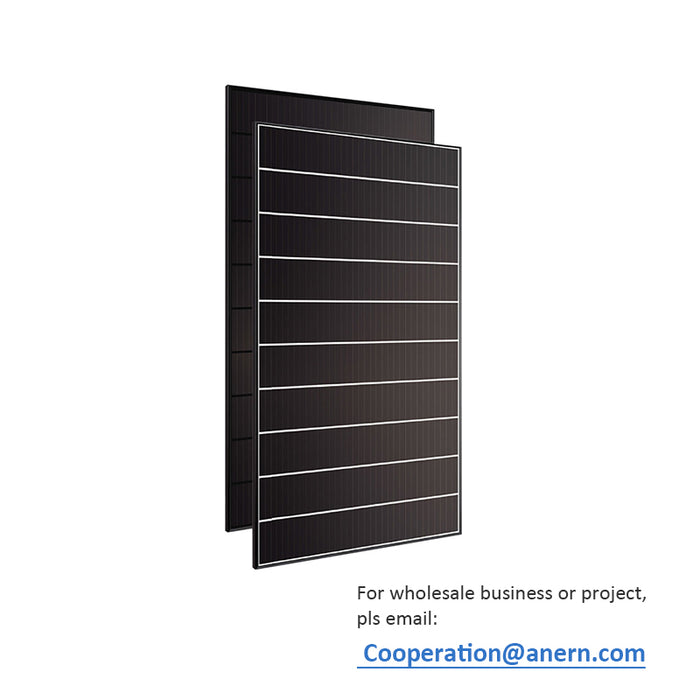

Ultra-High Efficient Plate-Interconnection Monocrystalline PV Modules

Ultra-High Efficient Plate-Interconnection Monocrystalline PV Modules

by Anern

Description:

Solar panel is a kind of photoelectric semiconductor sheet that uses sunlight to directly generate electricity. It is also called "solar cell" or "photocell". As long as it meets certain illuminance conditions, it can output voltage instantly and generate current in the case of loops.The design idea of shingled solar panels is to compress the gaps of the components to minimum through design, and achieve high-efficiency conversion of the components through close arrangement.

Package Content:

Solar Panel,Waterproof Junction Box,with MC4 Connectors and 1 Meter Wire

The shipping cost and product prices are for reference only, pls leave your demands and contact information, we will send you the quotation soon.

For wholesale business or project, pls email: Cooperation@anern.com

$0.25 - $0.25
$0.25
$0.25 - $0.25
$0.25
Max. Power: 550W

VIDEO of Ultra-High Efficient Plate-Interconnection Monocrystalline PV Modules



KEY FEATURES

Technology:

Technology provides ultra-high efficiency, Maximizes installation capacity in limited space.

Beautiful appearance:

Cells are evenly arranged, pleasing to the eye.

Enhanced weather resistance:

Avoid the microcrack of cells caused by traditional welding process; Solar energy panels are flexible and compressive resistance; Suitable for all harsh environments

Reduce system cost:

High module efficiency reduces floor space effectively, BOS, transportation and maintenance costs

Strong compatibility:

Can be equipped with a variety of mainstream high efficient (PERC, SHJ) cells.

Anti-LID / PID:

To ensure higher actual yield during lifetime.


SPECIFICATION

Item No. PM(w) Maximum Power Voltage Maximum Power Current Open Circuit  Voltage Short Circuit Current Size Weight Warranty
AN-MSP-550W 550W 38.76V 14.19A 45.74V 15A 2148*1186*35mm 28.1kg 25years
AN-MSP-500W 500W 35.34V 14.14A 41.70V 14.96A 2148*1060*35mm 25kg 25years
AN-MSP-450W 450W 31.92V 14.09A 37.66V 14.90A 2148*990*35mm 23.4kg 25years
AN-MSP-400W 400W 35.34V 11.31A 41.70V 11.96A 1730*1060*35mm 20.2kg 25years



APPLICATION

Solar panels are the most visible solar accessories of a solar system and are a surprisingly simple and reliable way to generate electricity, they collect energy from the Sun in the form of sunlight and convert it into electricity that can be used to power your homes or businesses.

Shingled modules cut solar cells into strips and overlap them inside the framed module. Intercell gaps are removed, and more silicon cells can be crammed into one module, increasing power output and module efficiency. As solar panel technology continues to mature, shingled modules represent the current state-of-the-art in terms performance, reliability and aesthetics.



★★★★★
★★★★★
★★★★★
★★★★★
