5000W PV Pure Sine Wave Off grid Inverter Support Parallel

5000W PV Pure Sine Wave Off grid Inverter Support Parallel

by Anern

Description:

Solar Hybrid Inverter 5.0KW 48VDC 230vdc 80A MPPT Solar Charger 5000W PV Pure Sine Wave Off grid Inverter Support Parallel

Voltage:230V AC

Selectable Voltage Range:
170-280VAC(For Personal Computers)
90-280VAC(For Home)

Package Content:

$491.00 - $516.83
$516.83
$491.00 - $516.83
$516.83
SCI02-PA-5500: With Wifi module

Specification of 5000W PV Pure Sine Wave Off grid Inverter Support Parallel

Model SCI02-PA-5500
RATED POWER 5500W
INPUT
Voltage 230 VAC
Selectable Voltage Range  170-280 VAC (For Personal Computers)
90-280 VAC (For Home Appliances)
Frequency Range 50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode) 230VAC ± 5%
Surge Power 10000VA
Efficiency (Peak) PV to INV. 97%
Efficiency (Peak) Battery to INV. 94%
Transfer Time 10 ms (For Personal Computers) ; 20 ms (For Home Appliances)
Waveform Pure sine wave
BATTERY & AC CHARGER
Battery Voltage 48 VDC
Floating Charge Voltage 54 VDC
Overcharge Protection 63 VDC
SOLAR CHARGER
Maximum PV Array Power 5500 W
MPPT Range @ Operating Voltage 120 ~ 450 VDC
Maximum PV Array Open Circuit Voltage 500 VDC
Maximum Charging Current 80A
Maximum Efficiency 98%
PHYSICAL

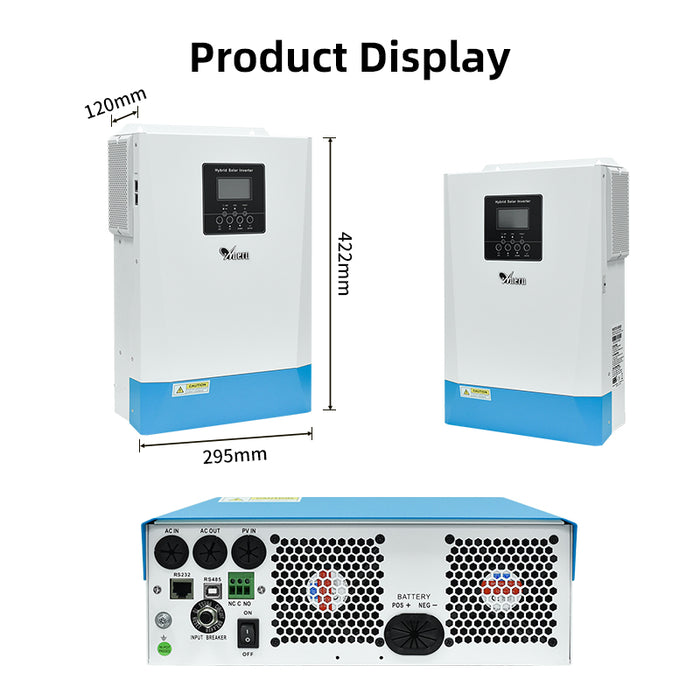

Dimension, D x W x H (mm) 448*295*105
Net Weight (kgs) 9.9

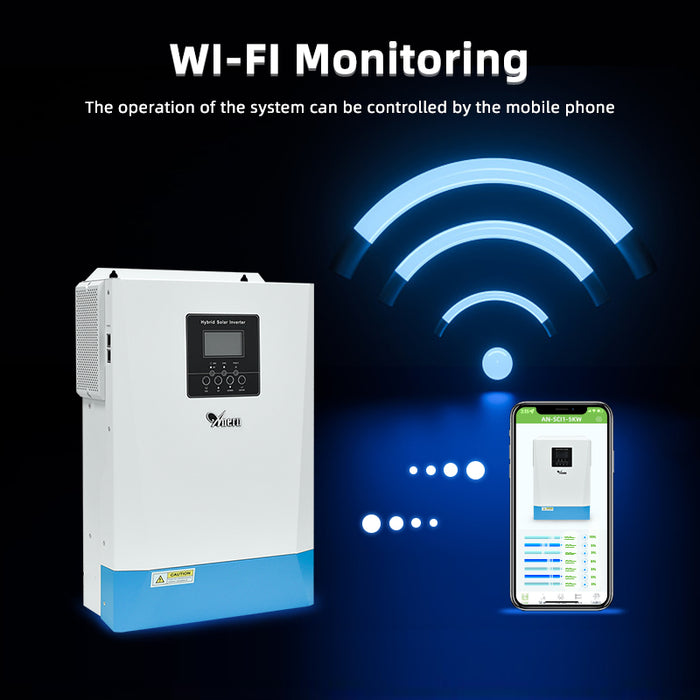

Communication interface WIFI
OPERATING ENVIRONMENT
Humidity 5% to 95% Relative Humidity(Non-condensing)
Operating Temperature 0°C - 55°C
Storage Temperature –15°C - 60°C



Key Features of 5000W PV Pure Sine Wave Off grid Inverter Support Parallel

◆ Integrates: high efficiency pure sine wave inverter(PF=1);
◆ Surges to 2X continuous power for 5 seconds for motor loads.
◆ Intelligent functionality enables utility and solar input prioritization.
◆ Wide utility input range(90Vac--280Vac)for unreliable grid even in the most challenging environments.
◆ Field serviceable with replacement boards and spare parts.
◆ Monitor, troubleshoot, or communication with USB/RS232.
◆ System configures quickly into compact, wall-mounted system.
