Cell & Module Technologies

Cell and module technologies decide how much energy a PV system delivers, how long it lasts, and how well it pairs with storage. Silicon still dominates, while thin film and perovskite tandems push new limits. Costs keep falling, yet quality varies a lot. This pillar covers Photovoltaic Cells, Solar Panel Types, Module Construction, and Solar Module Innovations with practical design notes drawn from field work and factory audits.

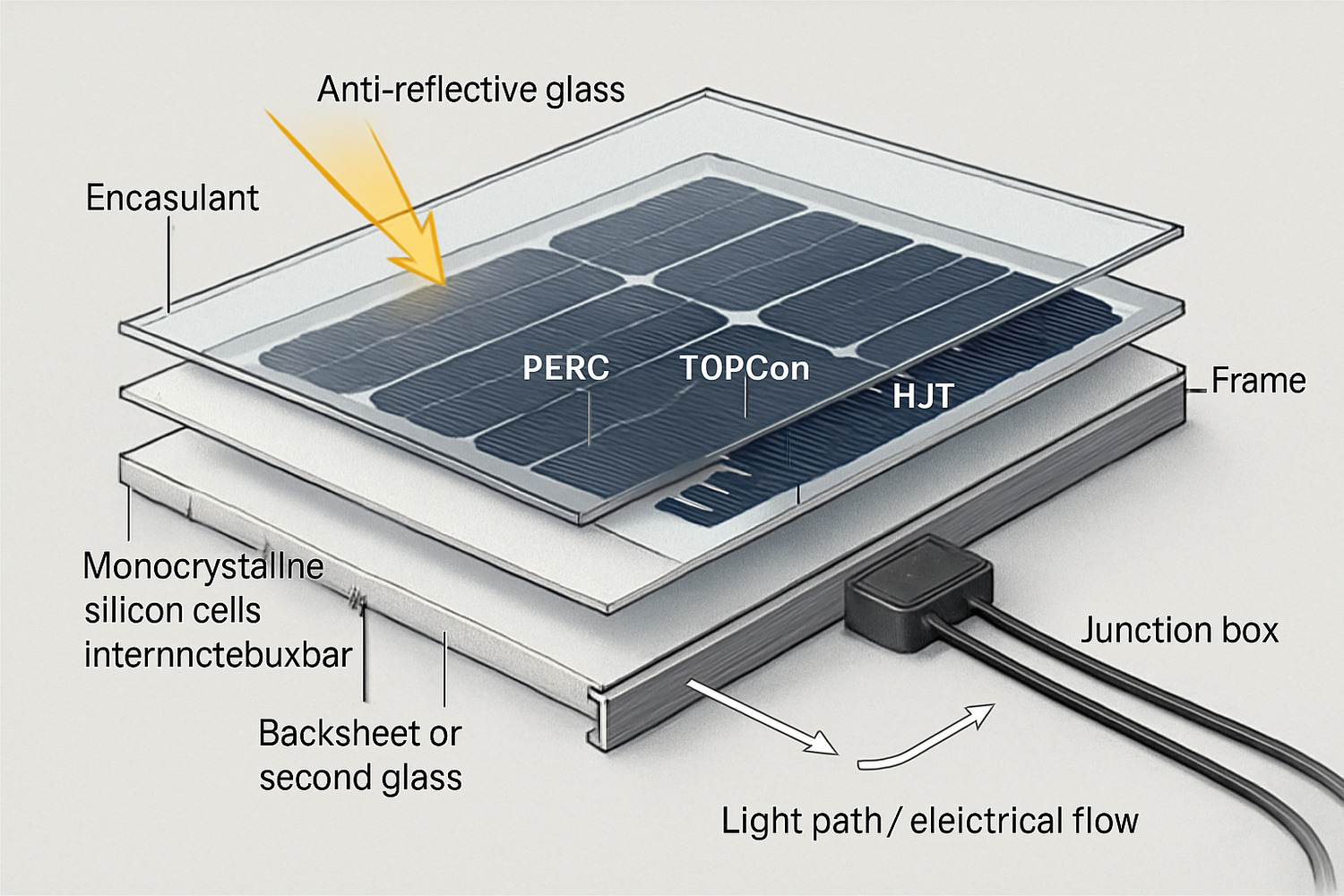

Cutaway diagram of PV module layers and cell types

Why this matters now

IEA and IRENA show rapid solar scale-up with steady cost drops tied to a historical learning rate near 20% for modules. Manufacturing focuses on higher throughput, better passivation, and smarter interconnects. At the same time, storage adoption grows to reshape net load, curtailment, and capacity needs. Pairing the right cell technology and module construction with robust inverters and batteries reduces LCOE and risk. Sources: IEA Clean Energy Innovation, IRENA, U.S. DOE Solar.

1. Photovoltaic Cells: mainstream and emerging

1.1 Silicon Cell Technologies

Crystalline silicon (c‑Si) supplies over 95% of global modules. Today’s leaders are PERC, TOPCon, heterojunction (HJT), and back‑contact variants. Each improves passivation, carrier collection, and resistive loss in distinct ways. For a deeper technology drill on PERC, TOPCon, and HJT roadmaps, see Ultimate Guide to PERC, TOPCon, and HJT Modules for 2025.

Cell Technology	Typical Module Eff. (2024)	Temp. Coeff. (Pmax)	Bifacial Factor	Degradation Trend	Silver Use (mg/W)	Status
PERC (mono)	21–22%	−0.34% to −0.38%/°C	70–80%	~2% first year, ~0.45–0.55%/yr	~8–15	Mature baseline
TOPCon (n‑type)	22–23%	−0.30% to −0.34%/°C	75–85%	~0.3–0.45%/yr	~6–12 (copper plating rising)	Scaling fast
HJT (n‑type)	21–22.5%	−0.26% to −0.30%/°C	85–95%	~0.25–0.35%/yr	~15–30 (dual-side grids)	High yield, low LID
Back‑contact (IBC/MWT)	22–23.5%	−0.29% to −0.31%/°C	Mostly monofacial	~0.3–0.45%/yr	Wide range	Premium niche
CdTe thin film	18–20%	~−0.25%/°C	Limited	~0.3–0.5%/yr	Low Ag	Stable share
Perovskite tandem (Si)	Demo modules ~23–26%	TBD (varies)	Planned	Durability under study	Lower Ag possible	Pilot stage

Notes: Ranges vary by supplier, wafer size, and bill of materials. Temperature figures reflect recent datasheets and field tests. IEA tracks rapid material intensity reductions, including silver thrifting and copper adoption. See IEA Solar PV Global Supply Chains for market shares and material flows. Heat behavior across TOPCon, HJT, and back‑contact is compared in TOPCon vs HJT vs Back Contact: Which Module Wins in Heat?

1.2 Thin Film and Tandem Paths

Cadmium telluride (CdTe) offers strong temperature performance and competitive energy yield in hot climates. Perovskite‑silicon tandems hold record lab cell efficiencies above 30%, with pilot modules entering validation. The focus now is durability under UV, heat, and humidity, plus scalable, lead‑managed manufacturing.

1.3 Bifacial Cells and Albedo Harvest

Bifacial cells capture light from both sides. Gains depend on ground albedo, row spacing, and mounting height. Yield uplift ranges from 5% to beyond 20% with high‑albedo surfaces and trackers. Learn practical settings in How to Boost Energy Yield with Bifacial Modules and Trackers. For rooftop use cases, see Myth vs Reality: Bifacial Panels on Residential Roofs.

2. Module Technologies and Construction

2.1 Module Construction: stack and materials

Module Construction affects yield, reliability, and recyclability. Below is a compact view of common stacks and choices.

Component	Main Options	Strengths	Watch‑outs	Typical Use
Front glass	3.2 mm tempered, AR coating	Impact resistance, UV stability	Weight on rooftops	All segments
Encapsulant	EVA, POE, co‑extruded	EVA: low cost; POE: better PID/moisture	Acetic acid (EVA), lamination control	POE for bifacial and coastal sites
Cells	PERC, TOPCon, HJT, IBC	Efficiency, bifacial, low LID (n‑type)	Silver use, process complexity	Utility, C&I, residential
Interconnect	Multi‑busbar, round wires, shingled, tiling ribbon	Lower resistance, reduced shading	Adhesive creep (shingled), thermal stress	High‑power formats
Backsheet vs. dual glass	Fluoropolymer backsheet; glass‑glass	Backsheet: lighter; Dual glass: lower moisture ingress	Backsheet cracking risk; Glass weight	Dual glass for bifacial/harsh sites
Frame	Aluminum anodized, frameless	Strength, grounding; Frameless reduces soiling edges	Galvanic corrosion if mixed metals	Most rooftop and utility
Junction box	3‑diode box, IP68	Hot‑spot bypass, safety	Thermal path, potting quality	All segments

Standards such as IEC 61215/61730 define thermal cycling, damp heat, mechanical load, and hail tests. Field quality depends on bill‑of‑materials (BOM) locking, lamination recipe, cell handling, and junction‑box sealing. U.S. DOE and IEA publish detailed manufacturing and reliability references: energy.gov/solar-energy, IEA Advancing Clean Technology Manufacturing.

2.2 Interconnection and layout innovations

Half‑cut cells lower current per path and cut resistive losses. Multi‑busbar and round wire reduce shading and improve current collection. Shingled and tiling ribbon overlap cells to remove inter‑cell gaps, raising aperture fill factor. Back‑contact and metal wrap‑through move fingers and busbars to the rear, removing front‑side shading and lowering hot‑spot risk. Practical benefits and layout tips appear in Unlock Output: Back-Contact Modules Cut Shading and Hot Spots.

2.3 Reliability engineering in practice

Potential‑induced degradation (PID): use POE, robust edge seal, and proper system grounding. Check 1,000 V vs 1,500 V certification.
Light‑induced degradation (LID) and LeTID: n‑type cells (TOPCon, HJT) cut LID. Modern PERC recipes mitigate LeTID.
Microcracks: control handling, use EL imaging in production and acceptance tests.
Hot spots: use quality bypass diodes, evenly matched strings, and careful shading analysis.
Mechanical: validate mounting clamp zones and snow/wind load per local codes.

3. Performance in real conditions

3.1 Heat behavior and expected output

Datasheets show STC at 25°C cell temperature. Field cells run near NOCT, often 45–48°C with rear‑ventilated mounting. A module with −0.30%/°C will drop about 6.9% from 25°C to 48°C: 23°C × 0.30% ≈ 6.9%. HJT modules with −0.28%/°C lose a bit less in the same heat. Side‑by‑side trials in hot climates often show HJT and TOPCon leading over PERC in midday yield. Comparative heat results are summarized in TOPCon vs HJT vs Back Contact: Which Module Wins in Heat?.

3.2 Shading, mismatch, and layout

Half‑cut architecture splits the module into two substrings. Partial shading on the lower half only curtails that substring, not the entire module. Back‑contact layouts can lower current crowding and hot‑spot risk. Use bypass diodes sized for reverse bias events. Keep string lengths inside inverter MPPT window even under cold temperatures to avoid over‑voltage. More field fixes appear in Unlock Output: Back-Contact Modules Cut Shading and Hot Spots.

3.3 Yield enhancers: bifacial plus trackers

Ground albedo, rear clearance, and tracker backtracking strategy decide most of the bifacial gain. Typical utility sites see 5–12% uplift on medium albedo. Snow, white gravel, or concrete can push gains higher. Design tips and tracker settings are covered in How to Boost Energy Yield with Bifacial Modules and Trackers. For homes, bifacial panels can help on pergolas or fences; see Myth vs Reality: Bifacial Panels on Residential Roofs.

4. Cost, supply chain, and sustainability

4.1 Cost trends and learning

IEA data highlights long‑running learning in cell and module lines through wafer scaling, passivation advances, and high‑throughput interconnects. Module ASPs trend down as cumulative shipments double. Similar progress took shape in Li‑ion batteries, especially after EV volumes scaled. References: IEA Clean Energy Innovation, U.S. EIA.

4.2 Materials, circularity, and design choices

Silver thrifting and copper plating lower cost and supply risk. IEA tracks silver intensity (mg/W) reductions and plating adoption.
BOM choices improve recyclability: glass‑glass helps material recovery, while module architectures with fewer fluoropolymers simplify disposal.
Durability upgrades cut lifetime emissions by extending service life. Focus on UV‑robust backsheets or dual glass, POE encapsulants, and robust junction‑box potting.

Policy and manufacturing best practices are detailed in IEA Solar PV Global Supply Chains. IRENA provides lifecycle and recycling studies supporting circular design.

4.3 Procurement and quality control

Lock the BOM. Insist on a frozen BOM in the supply contract and verify with serial‑level traceability.
Audit process windows. Lamination time/temperature, EL defect rates, and junction‑box adhesion are key checkpoints.
Use third‑party tests. IEC 61215/61730 certificates are a baseline; extended stress tests and PQP‑style reviews add confidence.
Quantify risk in LCOE. Mismatch, soiling, tracker downtime, and PID can inflate LCOE more than a small module price delta. See 7 Module Selection Mistakes that Inflate LCOE—and How to Fix.

5. System integration with ANERN batteries and inverters

5.1 Pairing modules and inverters

Match open‑circuit voltage (Voc) at the site’s minimum temperature to stay below inverter max DC. Keep strings inside the MPPT voltage range across seasonal swings. High‑current modules need inverters with suitable input current per MPPT and per string. Detailed pairing patterns and reliability checks are laid out in System Blueprint: Pairing Inverters and Modules for Reliability.

ANERN’s solar inverter range supports both on‑grid and off‑grid use. High MPP tracking accuracy, wide voltage windows, and smart protections cut clipping and nuisance trips. This helps unlock the full value of high‑current TOPCon and HJT modules.

5.2 Storage architectures that elevate yield

ANERN LiFePO4 batteries: high cycle life, thermal stability, and safe chemistry for homes and C&I sites.
ANERN ESS storage: integrated systems that combine lithium batteries, hybrid inverters, and Solar Panel Types tailored to the load profile.
Off‑grid solar: robust packages for farms, cabins, and remote facilities, with surge handling for motors and tools.

AC‑coupling suits PV retrofits. DC‑coupling improves round‑trip in new builds. For agricultural loads, HJT modules plus storage can shave peaks and run irrigation schedules at night. See Case Study: HJT + ESS Cuts Peak Demand in Off-Grid Farms for a data‑backed design pattern.

5.3 Practical sizing steps

Start with load shape. Define daily kWh, peak kW, and critical loads. Note seasonal changes.
Select Cell Technologies per climate. Use HJT or TOPCon for hot sites; bifacial on reflective terrain; back‑contact for constrained rooftops with partial shade.
Choose Module Construction for site stress. Dual glass and POE near coasts; lighter backsheet for small roofs.
Match the inverter. Validate string current and voltage limits; reserve thermal headroom.
Right‑size ANERN storage. LiFePO4 capacity for 2–4 hours at peak, or more for off‑grid autonomy. Ensure inverter‑battery communication is proven.

6. Field tips from commissioning and O&M

6.1 What I check on factory tours

EL imaging after stringing and after lamination. Reject patterns with finger interruptions or cell‑edge cracks.
Lamination recipe control. I review peel strength data and gel content trends by batch.
Junction‑box solder and potting quality. Thermal path and strain relief must be consistent.
BOM traceability. QR‑coded labels that tie to encapsulant and backsheet lot numbers cut warranty disputes.

6.2 What I validate on site

IV‑curve sampling at commissioning. Compare against STC‑corrected expectations using measured irradiance and temperature.
Thermography at steady irradiance. Hot substrings show diode or interconnect issues.
Torque checks on clamps and lugs. Loose hardware causes intermittent faults and arc risk.
String design sanity. Cold‑day Voc stays below inverter max; hot‑day Vmp stays within MPPT.

6.3 Quick fixes that pay back

Improve rear‑side albedo for bifacial arrays with light gravel or concrete paths.
Adjust tracker backtracking tables to cut row‑to‑row shading during high sun angles.
Replace weak bypass diodes in affected batches to prevent recurring hot spots.

7. Roadmap 2025–2030: efficiency, costs, and risks

Module Technologies continue to gain output through larger wafers (M10/G12), denser interconnects, and better passivation. Mainstream module efficiency is trending toward 23–24% for n‑type by the late 2020s, with pilot tandem modules pushing higher once reliability is proven. Costs continue to decline with automation and material thrifting. Supply risks revolve around silver, specialty gases, and energy‑intensive ingot steps. See 2025–2030 Module Technology Outlook: Efficiency, Costs, Risks and Data Report: Cell-Type Market Shares and Module Efficiency.

For developers, the practical stance is clear: lock bankable cell tech for near‑term projects, and plan structured pilots for tandems as durability clears key hurdles. For residential and C&I customers, risk‑balanced choices like TOPCon or HJT paired with proven ESS deliver strong performance.

8. Choosing the right stack with ANERN

8.1 Scenarios and recommended stacks

Hot desert utility: n‑type TOPCon or HJT, dual glass with POE, bifacial on single‑axis trackers, ANERN ESS for evening peak support.
Coastal C&I: glass‑glass, POE encapsulant, sealed junction boxes, ANERN hybrid inverter plus LiFePO4 for backup.
Shaded rooftops: back‑contact or high‑density shingled modules to cut shade loss; string sizing with more MPPT inputs; ANERN off‑grid solar if grid is unstable.
Remote farms: HJT or TOPCon for midday yield; ANERN ESS storage sized for irrigation pumps and cold‑start surges.

8.2 How ANERN fits into the plan

ANERN lithium battery: LiFePO4 chemistry, stable thermal profile, long cycle life for daily cycling.
ANERN ESS storage: integrated packs with hybrid control, easing commissioning and after‑sales service.
ANERN solar inverter: DC to AC conversion tuned for high‑current modules and variable irradiance, with protections that reduce downtime.
ANERN off‑grid solar: packaged modules, inverters, and batteries that simplify deployment for homes, farms, and cabins.

Key takeaways and next steps

Pick Cell Technologies for climate and site. Heat favors HJT and TOPCon; shade resilience favors back‑contact layouts.
Choose Module Construction that matches stress. Dual glass and POE for harsh sites; lighter backsheets for tight roofs.
Engineer strings for inverter limits across seasons. Confirm current and voltage margins.
Plan storage early. ANERN LiFePO4 and hybrid inverters align well with high‑current, high‑efficiency modules.
Lock the BOM and audit. Quality upstream beats cheap rework downstream.

Need a rapid design review? Prepare site temperature data, desired autonomy hours, and roof or land constraints. With that, a precise module and ESS shortlist is straightforward and repeatable.

Disclaimer: This content is for information only and not financial, legal, or engineering advice. Site conditions, regulations, and product specifications vary. Validate designs with certified professionals and current standards.
