As more households embrace energy independence through solar and storage, the conversation around safety becomes increasingly important. An energy storage system (ESS) is a significant addition to any home, and ensuring its safety is a top priority. This guide provides a clear overview of the key fire safety standards, UL9540 and UL9540A, to help you make informed decisions for a secure and reliable energy future.
Understanding the Fundamentals of Battery Fire Safety
At the heart of battery safety discussions is a phenomenon called thermal runaway. Understanding this concept is the first step in appreciating the robust safety measures built into modern energy storage systems.
What is Thermal Runaway?
Thermal runaway is a chain reaction where a battery cell enters an uncontrollable, self-heating state. This can happen due to internal faults, physical damage, or extreme temperatures. The process releases energy, which can cause temperatures to rise rapidly, potentially leading to smoke and fire. Different battery chemistries have different susceptibilities to this. Lithium Iron Phosphate (LiFePO4) batteries, for example, have a more stable chemical and mechanical structure, making them significantly less prone to thermal runaway compared to other lithium-ion chemistries. This inherent stability is a primary reason we focus on LiFePO4 technology for our reliable and scalable energy solutions. You can find more details in our article: Are LiFePO4 home systems safer? UL9540A evidence inside.
Key Terminology You Should Know
Navigating safety standards involves some specific terms. Here are a few of the most common ones:
| Term | Definition |
|---|---|
| ESS (Energy Storage System) | A complete, integrated system for storing electrical energy, including the battery, inverter, and control software. |
| AHJ (Authority Having Jurisdiction) | The local organization responsible for enforcing building and fire codes, such as the local fire department or building inspector. |
| BMS (Battery Management System) | An electronic system that manages a rechargeable battery, protecting it from operating outside its safe operating area, monitoring its state, and balancing cells. |
| Thermal Runaway | A process where an increase in temperature causes a chain reaction that further increases the temperature, potentially leading to a fire. |
The Role of the Battery Management System (BMS)
The BMS is the brain of your battery. It's a critical safety component that continuously monitors conditions to ensure everything operates correctly. A high-quality BMS, like those integrated into ANERN's home energy storage systems, performs several key safety functions:
- Overcharge Protection: Prevents the battery from being charged beyond its maximum capacity.
- Over-discharge Protection: Stops the battery from being drained too low, which can cause damage.
- Temperature Monitoring: Constantly checks the battery's temperature to prevent overheating.
- Cell Balancing: Ensures all the individual cells within the battery pack are at a similar state of charge, improving performance and lifespan.
A sophisticated BMS is the first line of defense against conditions that could lead to safety issues, making it an indispensable part of a modern, reliable ESS.
Demystifying UL9540 and UL9540A Standards
When you see UL certification on a product, it signifies that it has been tested to nationally recognized safety and sustainability standards. For energy storage, UL9540 and UL9540A are the most important benchmarks for fire safety.
What is UL 9540? The System-Level Safety Standard
UL 9540 is a safety standard for the entire Energy Storage System. Think of it as a comprehensive certification that covers the complete package: the battery, the inverter, the controls, and the enclosure. To earn a UL 9540 listing, a system must pass a series of tests for electrical and mechanical safety to ensure all components work together safely. This standard is the primary indicator for regulators and homeowners that an ESS is safe for installation. For more information on what this listing entails, see What UL9540 listing really covers for home backup batteries?.
What is UL 9540A? The Fire Safety Test Method
This is where things can get confusing. UL 9540A is not a certification or a "pass/fail" grade. It is a test method used to evaluate what happens if a battery cell does experience thermal runaway. The goal of the UL 9540A test is to see if thermal runaway will spread from one cell to the next, and from one battery module or unit to another. The test is conducted in four stages: the cell level, the module level, the unit level, and the installation level. The data gathered from these tests helps manufacturers and safety officials understand the fire risk and establish safe installation guidelines. You can learn more about this process in our article on Stop hidden fire risks: UL9540A thermal runaway insights for ESS.
The Critical Difference: UL 9540 vs. UL 9540A
The key distinction is that UL 9540 is a safety certification for the entire system, while UL 9540A is a test method that provides data about fire propagation. They work together to ensure safety. The results from UL 9540A testing inform the installation requirements for a UL 9540 certified system. For example, the test data determines how far apart units must be installed or if additional fire prevention measures are needed.
To clarify, here is a direct comparison:
| Aspect | UL 9540 | UL 9540A |
|---|---|---|
| Type | System Certification Standard | Test Method |
| Purpose | Certifies the overall safety of a complete ESS. | Evaluates fire propagation risk from thermal runaway. |
| Outcome | A "Listing" or "Certification" mark on the product. | A data report used for safety and installation guidelines. |
For a complete breakdown of how these standards affect homeowners, check out UL 9540 vs UL 9540A: what homeowners need for fire-safe ESS.
Practical Application for Homeowners and Installers
Understanding these standards is one thing; applying them to your home energy project is the next step. From installation to daily operation, safety should always be the priority.
How UL Standards Impact Your Home Installation

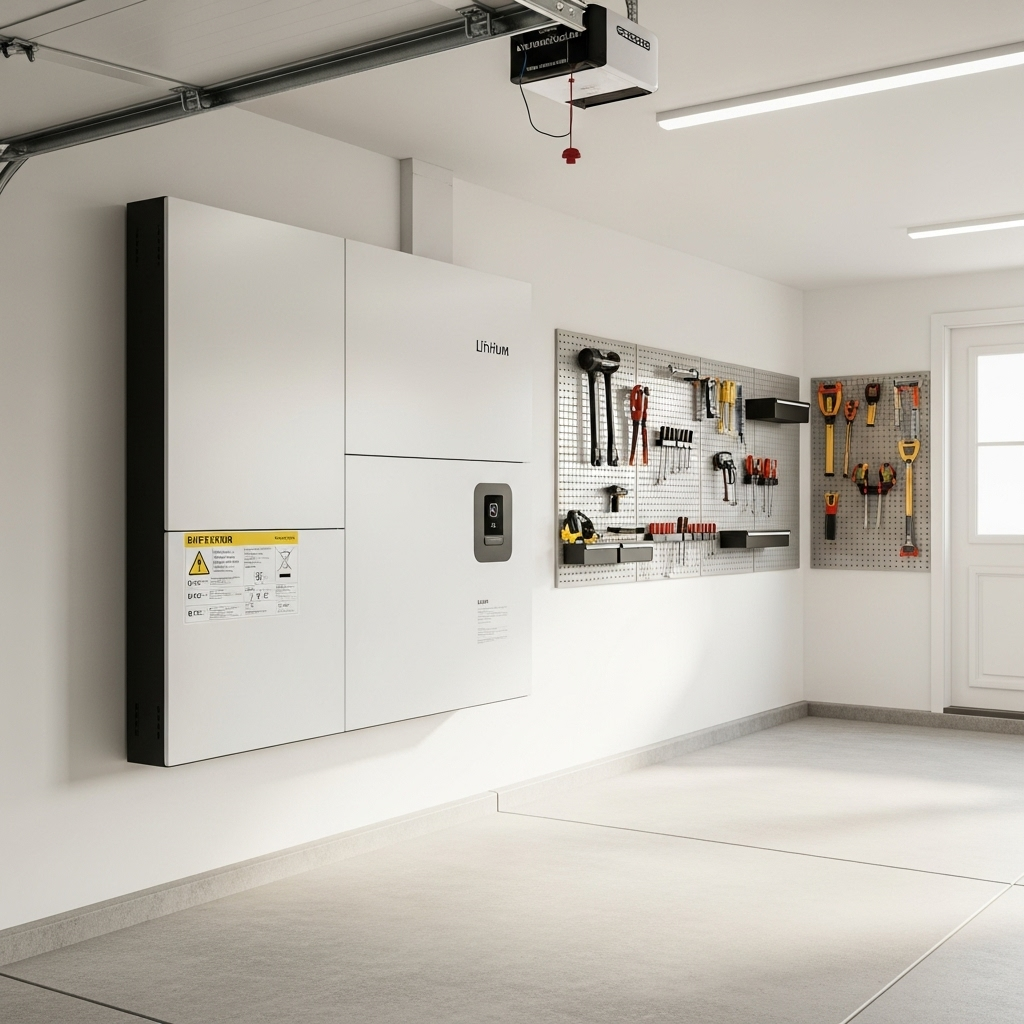

The results of UL 9540A testing directly influence how a system can be installed in your home. Local fire codes, often based on standards like NFPA 855, use this data to set requirements for things like spacing between battery units and ventilation. Your local Authority Having Jurisdiction (AHJ) will use the UL 9540 listing and UL 9540A test data to approve your installation permit. This ensures the system is installed in a way that minimizes risk, whether it's in a garage, basement, or outside. For specific installation scenarios, such as in a garage, additional guidelines may apply. You can review our Blueprint for safer garage installs: UL9540 ESS + NEC for more details.
Choosing a Safe and Compliant Energy Storage System
When selecting an ESS for your home, always look for the UL 9540 listing. This confirms the entire system has been rigorously tested for safety. Choosing a system with LiFePO4 battery chemistry provides an additional layer of security due to its superior thermal stability. At ANERN, our integrated home energy storage systems are developed with this principle in mind, combining high-performance LiFePO4 batteries with advanced inverters and a smart BMS. This holistic approach ensures all components work together seamlessly for optimal safety and performance. The relationship between system performance and safety is critical; a well-engineered system is less likely to operate under stress. For a deeper look into how different components affect overall system efficiency and longevity, see our Ultimate Reference on Solar Storage Performance.
Essential Maintenance for Long-Term Safety
Proper maintenance is key to ensuring the continued safe operation of your ESS. While modern systems are designed to be low-maintenance, a few simple checks can make a big difference:
- Visual Inspections: Regularly check the unit for any signs of damage, and ensure vents are clear of obstructions.
- Keep the Area Clear: Do not store flammable materials near your ESS.
- Monitor System Performance: Keep an eye on the system's monitoring app for any error codes or warnings and contact a professional if you notice anything unusual.
Avoiding common maintenance mistakes is crucial for preserving the safety integrity of your system. For a list of what not to do, read our guide on 7 maintenance mistakes that can undermine UL9540A test results.
A Proactive Approach to Energy Storage Safety
Investing in a home energy storage system is a powerful step toward achieving energy independence. By prioritizing safety, you ensure that your investment is also a secure one. The key takeaways are straightforward: always choose systems listed to UL 9540, understand that UL 9540A provides critical fire-spread data, and recognize the inherent safety advantages of LiFePO4 chemistry. At ANERN, we are committed to providing reliable and scalable energy solutions built on a foundation of safety and quality, helping you power your home with confidence.
Disclaimer: This article is for informational purposes only and does not constitute legal or investment advice. Always consult with a qualified professional and your local Authority Having Jurisdiction (AHJ) before installing an energy storage system.
