Connecting a solar energy system to the grid requires more than just generating power; it demands a sophisticated approach to maintaining grid stability. A critical aspect of this is managing harmonic distortion. Power inverters, the heart of any solar installation, can introduce electrical 'noise' that disrupts the grid. Standards like IEEE 519 and IEEE 1547-2018 provide the essential framework for controlling these harmonics, ensuring that renewable energy sources are good neighbors on the electrical grid.
Understanding Harmonic Distortion in Power Systems

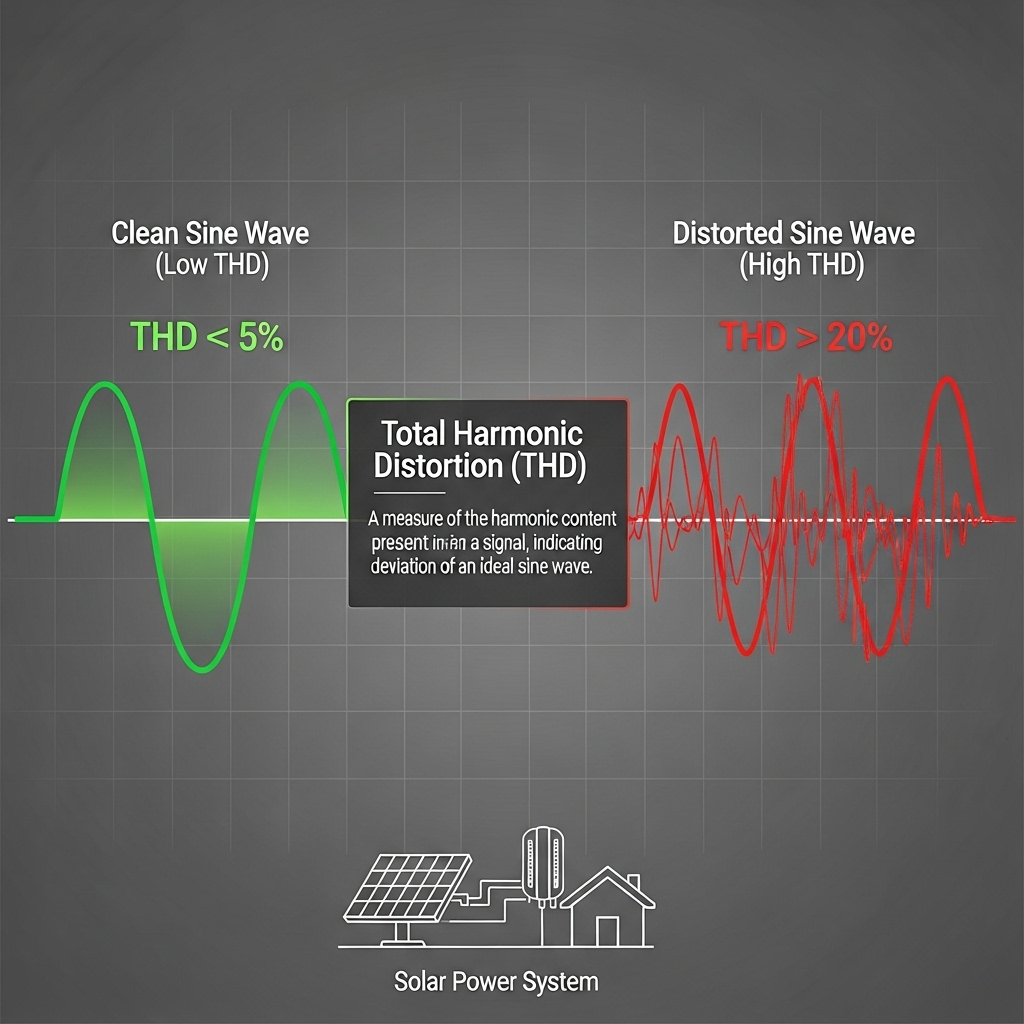

A stable power grid relies on a smooth, consistent alternating current (AC) waveform. When this waveform is distorted, it can create significant problems for connected equipment. Understanding the source and impact of this distortion is the first step toward effective management.
What Are Harmonics and Why Do They Matter?
Harmonics are electrical currents and voltages that are integer multiples of the fundamental power frequency (60 Hz in the US). In an ideal power system, only the fundamental frequency exists. However, nonlinear loads like computers, variable speed drives, and solar inverters draw current in a non-sinusoidal way, creating these unwanted harmonic frequencies. These harmonics can lead to overheating in transformers and wiring, nuisance tripping of circuit breakers, and interference with sensitive electronics. A related issue, interharmonics, involves frequencies that are not integer multiples of the fundamental. As research from institutions like IRENA points out in Grid Codes for Renewable Powered Systems, these can cause flicker and other instabilities, making their assessment a key part of grid code compliance.
The Role of Inverters as a Source of Harmonics
Solar inverters convert the direct current (DC) produced by solar panels into the alternating current (AC) used by the grid. This conversion process involves high-frequency switching of electronic components. While modern inverters use advanced filters to produce a clean sine wave, some level of harmonic distortion is an unavoidable byproduct. Without strict standards, the cumulative effect of thousands of solar installations could severely degrade power quality for everyone on the grid.
A Deep Look at IEEE 519: The Foundation of Harmonic Control
IEEE 519, titled 'IEEE Recommended Practice and Requirements for Harmonic Control in Electric Power Systems', is a foundational document that establishes limits for both voltage and current distortion. Its core principle is shared responsibility: the utility is responsible for providing clean voltage, while the customer is responsible for not injecting excessive current distortion.
Core Principles and Limits of IEEE 519
The standard sets specific limits on harmonic distortion at the Point of Common Coupling (PCC)—the location where the customer's system connects to the utility grid. The allowable current distortion depends on the 'stiffness' of the grid, determined by the ratio of the available short circuit current (Isc) to the customer's maximum load current (IL). A higher ratio indicates a stiffer grid that is less susceptible to distortion. The limits are defined in terms of Total Demand Distortion (TDD).
| Isc/IL | 3 ≤ h < 11 | 11 ≤ h < 17 | 17 ≤ h < 23 | 23 ≤ h < 35 | 35 ≤ h | TDD |
|---|---|---|---|---|---|---|
| <20 | 4.0% | 2.0% | 1.5% | 0.6% | 0.3% | 5.0% |
| 20-50 | 7.0% | 3.5% | 2.5% | 1.0% | 0.5% | 8.0% |
| 50-100 | 10.0% | 4.5% | 4.0% | 1.5% | 0.7% | 12.0% |
| 100-1000 | 12.0% | 5.5% | 5.0% | 2.0% | 1.0% | 15.0% |
| >1000 | 15.0% | 7.0% | 6.0% | 2.5% | 1.4% | 20.0% |
Note: Power generation equipment is typically limited to the values for Isc/IL <20, regardless of the actual system ratio.
IEEE 1547-2018: The Modern Standard for Interconnection
While IEEE 519 provides the system-level goals, IEEE 1547 defines the specific performance and testing requirements for Distributed Energy Resources (DER) like solar and storage systems before they can be connected to the grid. The 2018 revision of this standard marked a significant evolution, transforming inverters from simple generators into active grid-support devices.
How IEEE 1547-2018 Addresses Harmonics
IEEE 1547-2018 sets explicit limits on the harmonic current that a DER device can inject into the grid. These limits are largely harmonized with the strictest category of IEEE 519, ensuring that a compliant inverter is designed to be a 'good citizen' on the grid. The standard requires that the Total Rated Current Distortion (TRD), which includes both harmonics and interharmonics, must not exceed 5%. This approach simplifies compliance by focusing on the performance of the equipment itself.
The Link Between IEEE 1547, UL 1741 SB, and Certification
These standards work together to create a clear path for certification. IEEE 1547-2018 defines *what* an inverter must do. The corresponding test standard, IEEE 1547.1, defines *how* to verify its performance. Underwriters Laboratories (UL) then incorporates these test procedures into its product safety standard, UL 1741. The Supplement B (SB) to UL 1741 specifically covers the advanced grid-support functions required by IEEE 1547-2018. An inverter certified to UL 1741 SB has been independently verified to meet these modern interconnection requirements, including harmonics, which can significantly streamline the utility approval process.
Achieving and Verifying Compliance
Ensuring a solar or storage project meets harmonic standards requires a proactive approach that begins in the design phase and continues through commissioning.
Design Strategies for Low Harmonics
The most effective strategy is to select inverters that are certified to UL 1741 SB. This certification provides assurance that the equipment's harmonic emissions are within the limits defined by IEEE 1547. For larger or more complex systems, a power system study using modeling software may be necessary to simulate the total harmonic impact at the PCC and determine if additional measures, such as passive or active harmonic filters, are needed.
The Importance of System Performance and Efficiency
Managing harmonics is not just about meeting regulations; it's also about protecting system performance and longevity. Excessive harmonics generate waste heat, which can degrade components and reduce the overall efficiency of the system. Minimizing this distortion ensures that the maximum amount of generated energy is delivered to the grid or stored for later use. This directly impacts the financial viability of a project, as maintaining high round-trip efficiency is crucial for energy storage systems. As detailed in the ultimate reference for solar storage performance, every percentage point of efficiency gained translates to more usable energy and a better return on investment.
The Role of Testing and Field Verification
For many commercial and utility-scale projects, the utility will require field verification of harmonic performance after installation. This involves using a power quality analyzer at the PCC to measure the actual voltage and current distortion under various operating conditions. These measurements provide the definitive proof that the system is operating within the limits established by IEEE 519 and the local utility's interconnection agreement.
Your Path to a Compliant System
Navigating the technical landscape of harmonics compliance is essential for the successful deployment of solar and energy storage systems. By understanding the principles of IEEE 519 and the equipment-level requirements of IEEE 1547-2018, project developers can make informed decisions. Selecting equipment certified to UL 1741 SB is the most direct path to ensuring compliance, reducing project risk, and contributing to a more stable and reliable power grid for the future.
Frequently Asked Questions
What is the main difference between IEEE 519 and IEEE 1547 regarding harmonics?
IEEE 519 is a system-level recommended practice that sets harmonic limits at the Point of Common Coupling (PCC), establishing a shared responsibility between the utility and the power user. IEEE 1547 is an equipment-level interconnection standard for DER, specifying the performance of individual devices like inverters, including their maximum allowed harmonic current emissions.
Does a UL 1741 SB certified inverter guarantee IEEE 519 compliance?
Not automatically. A UL 1741 SB certification confirms the inverter itself meets the strict emission limits of IEEE 1547-2018. This is a major step towards system-wide compliance. However, overall IEEE 519 compliance is assessed at the PCC and depends on the combined harmonic contributions of all equipment at the site plus any pre-existing distortion from the utility. A system-level study may still be needed for large installations.
What are interharmonics and why are they a concern?
Interharmonics are frequencies that are not integer multiples of the fundamental 60 Hz frequency. They are often produced by the complex switching patterns in modern inverters, sometimes related to Maximum Power Point Tracking (MPPT) algorithms. These frequencies can cause light flicker and interfere with communication and control signals, making them an increasing focus of power quality standards.
What happens if a system is found to be non-compliant with harmonic standards?
A utility can refuse to grant permission to operate a new system or may require an existing, non-compliant system to disconnect from the grid until the harmonic issues are resolved. Mitigation often involves installing costly harmonic filters or replacing equipment, leading to significant project delays and budget overruns. Designing for compliance from the outset is the most reliable and cost-effective approach.
