Efficiently moving power from large-scale solar arrays to the grid or storage systems is a significant engineering challenge. As photovoltaic (PV) projects grow in scale, the feeder lines that collect and transmit this energy become longer and carry more current. This introduces two critical issues: power losses and voltage drop. High-temperature conductors present a specialized solution designed to address these very problems, offering a way to increase power capacity within specific constraints. Understanding their characteristics is key to designing robust and efficient solar power infrastructure.

Understanding Conductor Properties and Their Impact on PV Systems

The performance of any wire or cable in a solar installation is governed by fundamental physical principles. These principles directly influence system efficiency, reliability, and financial returns.

The Fundamentals of Conductor Resistance and Power Loss

Every conductor has some level of electrical resistance. When current flows through it, a portion of the electrical energy is converted into heat. This phenomenon, known as Joule heating or I²R loss, represents a direct loss of generated power. The amount of loss is determined by the conductor's resistance and the square of the current flowing through it. Lower resistance—achieved with materials like copper or by increasing the conductor's cross-sectional area—results in lower energy losses.

What is Voltage Drop and Why It Matters for PV Feeders

Voltage drop is the reduction in electrical potential along the path of a current-carrying wire. For PV feeders, excessive voltage drop is detrimental. Inverters are designed to operate within a specific voltage window. If the voltage from the solar array drops too low by the time it reaches the inverter, the inverter may operate inefficiently or even shut down completely to protect itself, halting power production. As detailed in the ultimate reference for solar and storage performance, maintaining stable voltage is a cornerstone of system efficiency and reliability.

The Role of Operating Temperature

A conductor's temperature significantly affects its performance. As a wire heats up, both from the ambient air and its own I²R losses, its electrical resistance increases. This creates a challenging cycle: more current generates more heat, which in turn increases resistance, leading to even greater power losses and a more severe voltage drop. Standard conductors have strict temperature limits to prevent damage to their insulation and ensure mechanical integrity.

Introducing High-Temperature Conductors

High-temperature conductors are engineered to operate reliably at temperatures that would damage conventional cables. This capability allows them to handle significantly more current for a given size.

What Makes a Conductor 'High-Temperature'?

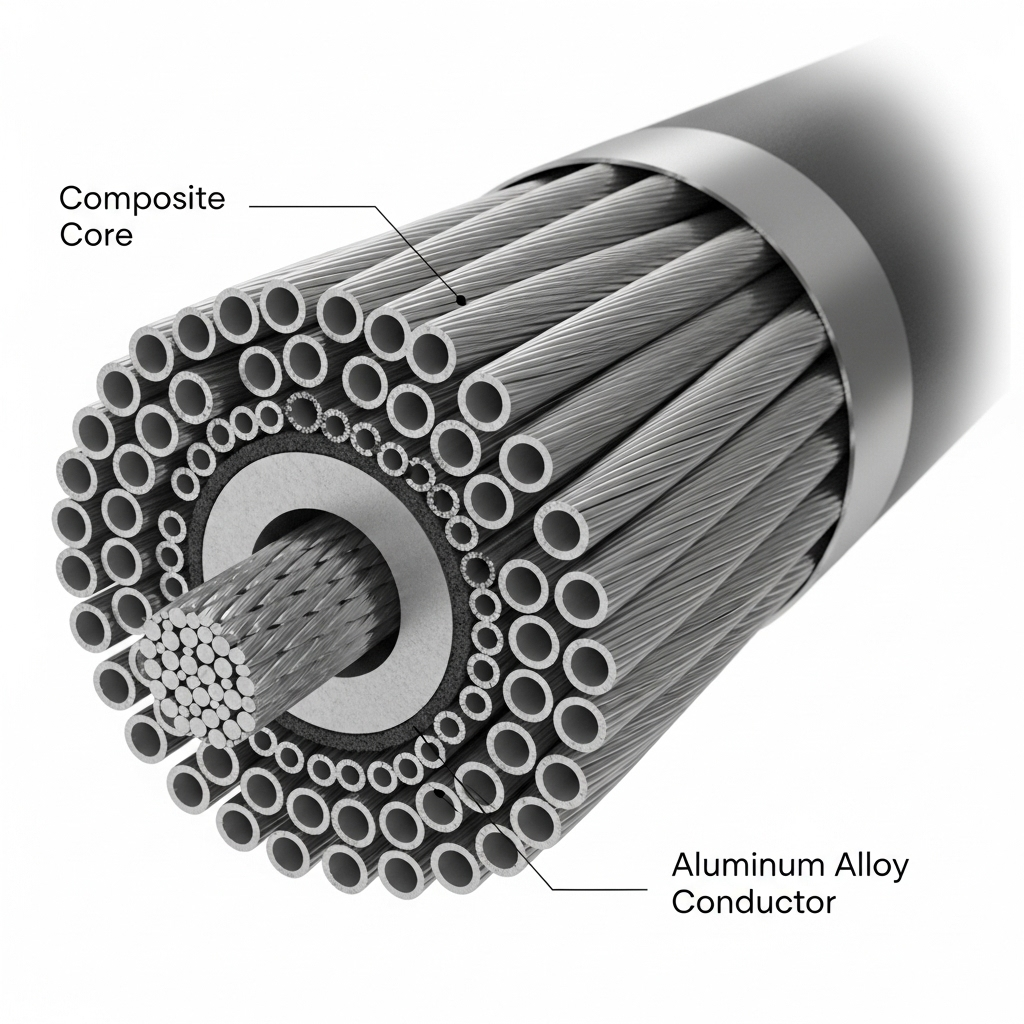

Unlike standard Aluminum Conductor Steel Reinforced (ACSR) cables that use a steel core, high-temperature conductors often employ advanced composite cores made from materials like carbon fiber or fiberglass. These cores are paired with specialized, heat-resistant aluminum alloys. This construction gives them superior strength and, crucially, less thermal expansion or sag at elevated temperatures. These are often categorized as High-Temperature Low-Sag (HTLS) conductors.

Key Advantages in High-Capacity Applications

The primary advantage of these conductors is their increased ampacity, or current-carrying capacity. They can transmit more power than a standard conductor of the same diameter. This is particularly useful for upgrading existing power lines. A study mentioned in the IEA's report, Empowering Variable Renewables: Options for Flexible Electricity Systems, notes that rewiring existing lines with high-temperature wires can increase overhead line capacity significantly. This 'repowering' approach avoids the lengthy and costly process of building entirely new transmission corridors, a strategy used successfully to integrate more renewable energy into the grid.

Analyzing the Trade-offs: Losses, Drop, and Costs

While high-temperature conductors offer clear benefits for ampacity, they are not a one-size-fits-all solution. A careful analysis of their performance characteristics and costs is necessary.

The Complex Relationship with Power Losses

There is a critical nuance regarding efficiency. While HTLS conductors enable higher power transmission, operating them at their maximum rated temperature will result in higher resistive losses compared to a larger, cooler-running standard conductor carrying the same current. The IEA points out that depending on the conductor type, the increased resistance from high-temperature operation can lead to an increase in line losses. The efficiency gain is realized by pushing more total power through an existing pathway, not necessarily by being more efficient on a per-amp basis.

Conductor Type Operating Current Operating Temperature Relative Power Loss (I²R)
Standard ACSR 400A 75°C Base
Standard ACSR 600A (Exceeds Limit) N/A
HTLS Conductor 400A 80°C Slightly Higher than Base
HTLS Conductor 600A 150°C Significantly Higher than Base

Voltage Drop Considerations for PV Feeders

For long PV feeders, HTLS conductors can be a viable option. Their higher ampacity allows designers to transmit more power from a centralized array without needing excessively large and heavy standard cables. However, the voltage drop must still be calculated based on the conductor's resistance at its *actual* elevated operating temperature. Failing to account for the higher resistance at high temperatures will lead to an inaccurate voltage drop calculation and potential system underperformance.

Investment and Installation Factors

The initial investment for high-temperature conductors is higher. According to research cited by the IEA, these advanced conductors can cost about 50% more than standard ones. Furthermore, upgrading a line to carry more power is not just about the wire itself. As noted in the System Integration of Renewables report, other power system components like switches, transformers, and support structures may also need to be upgraded to handle the increased capacity and mechanical loads, adding to the overall project cost.

Practical Application in Solar Feeder Design

Deciding to use high-temperature conductors requires a holistic view of the project's goals, constraints, and long-term economics.

When to Specify High-Temperature Conductors

These conductors are most suitable for specific scenarios. They are ideal for large, utility-scale solar farms where feeders span long distances. They are also a powerful tool for 'repowering' projects, where an existing facility is being expanded but the cable pathways are fixed. In situations with tight physical or right-of-way constraints, using an HTLS conductor can be the only feasible way to achieve the required power capacity.

Sizing Calculations: Beyond the Basics

Sizing an HTLS conductor for a PV feeder involves more than just checking an ampacity table. The design process is a multi-variable optimization problem that must balance three factors: the required ampacity, the acceptable voltage drop percentage (typically 2-3% for PV feeders), and the economic value of the power lost to heat over the project's lifetime. This often requires specialized software that can model the conductor's thermal and electrical behavior under various load and weather conditions.

A Look at System Integration Challenges

Increasing the power flow on a line can introduce new complexities. As mentioned in IEA analysis, operating at higher currents can create challenges related to reactive power and voltage stability on the grid. When upgrading existing lines, an assessment of electromagnetic fields may also be required to ensure compliance with local regulations. These system-level impacts must be considered as part of the overall engineering design.

A Strategic Tool for Modern PV Systems

High-temperature conductors are an advanced tool in the solar engineer's toolkit. They provide a direct solution to the ampacity limitations of standard cables, enabling greater power transmission through constrained corridors. However, their application requires a thorough analysis. The benefits of increased capacity must be weighed against the higher initial cost and the potential for increased resistive losses at peak operating temperatures. When deployed in the right application, these conductors are fundamental to building the high-capacity, efficient, and reliable PV infrastructure needed for a clean energy future.

Frequently Asked Questions

Do high-temperature conductors eliminate voltage drop?

No, they do not. They are a tool to manage ampacity constraints, but voltage drop is an inherent outcome of current flowing through any conductor with resistance. All designs, including those with HTLS conductors, must include voltage drop calculations to ensure the system operates within its required voltage range.

Are HTLS conductors more efficient than standard conductors?

Efficiency is dependent on the specific operating conditions. An HTLS conductor operating at a very high temperature to carry more current will have higher I²R losses than a much larger standard conductor carrying that same current at a lower temperature. The system-level benefit comes from transmitting more total energy over a single line, which can outweigh the marginal increase in the loss percentage.

Can I use high-temperature conductors for residential solar installations?

This is highly impractical and unnecessary. High-temperature conductors are engineered for high-voltage transmission and large-scale power distribution, such as the feeders on a multi-megawatt solar farm. Standard, properly sized copper or aluminum conductors are the correct and cost-effective choice for the lower currents and shorter distances in residential solar projects.

What is the main difference between a standard ACSR conductor and an HTLS conductor?

The key differences are in the core material and the aluminum alloy. Standard ACSR (Aluminum Conductor Steel Reinforced) uses a solid or stranded steel core for mechanical strength. HTLS conductors use advanced composite cores (made of materials like carbon or glass fiber) which are lighter, stronger, and expand significantly less with heat. This allows the conductor to run at much higher temperatures without sagging to unsafe levels.
