What Is Inverter Thermal Derating and Why It Kills Uptime?

The inverter is the operational core of any solar or energy storage system, diligently converting DC power from panels or batteries into usable AC electricity. But a silent threat can undermine its performance and reduce your energy output: excessive heat. When an inverter gets too hot, it activates a self-preservation mechanism called thermal derating. This process directly impacts system uptime, energy yield, and the long-term health of your investment.

Understanding Inverter Thermal Derating

Inverter thermal derating is the intentional and automatic reduction of power output by the inverter to prevent its internal components from exceeding safe operating temperatures. Think of it as a built-in safety feature. When internal sensors detect that temperatures are approaching a critical threshold, the inverter's control system scales back power conversion. This reduction lowers the thermal stress on sensitive electronics, preventing immediate damage. Once the components cool down to a safe level, the inverter will automatically resume normal power output.

The Mechanism Behind Derating

The process is governed by what is known as a derating curve, a specification provided by the manufacturer that shows how much power the inverter can output at different ambient temperatures. Most inverters operate at full capacity up to a certain temperature, often around 45-50°C (113-122°F). Beyond this point, the output power begins to decrease progressively as the temperature continues to rise. In extreme cases, if the temperature becomes dangerously high, the inverter may shut down completely to avoid catastrophic failure.

Why It's a Necessary Safeguard

While derating reduces your energy production, it is a crucial function. The electronic components inside an inverter, such as semiconductors, capacitors, and transistors, are highly sensitive to heat. Prolonged exposure to high temperatures can accelerate their degradation, significantly shortening the inverter's lifespan and leading to premature failure. Derating sacrifices short-term output to ensure the long-term reliability of the device.

The Primary Causes of Inverter Overheating

Several factors, often in combination, can lead to an inverter reaching temperatures that trigger thermal derating. Effective inverter thermal management requires addressing these root causes.

High Ambient Temperatures

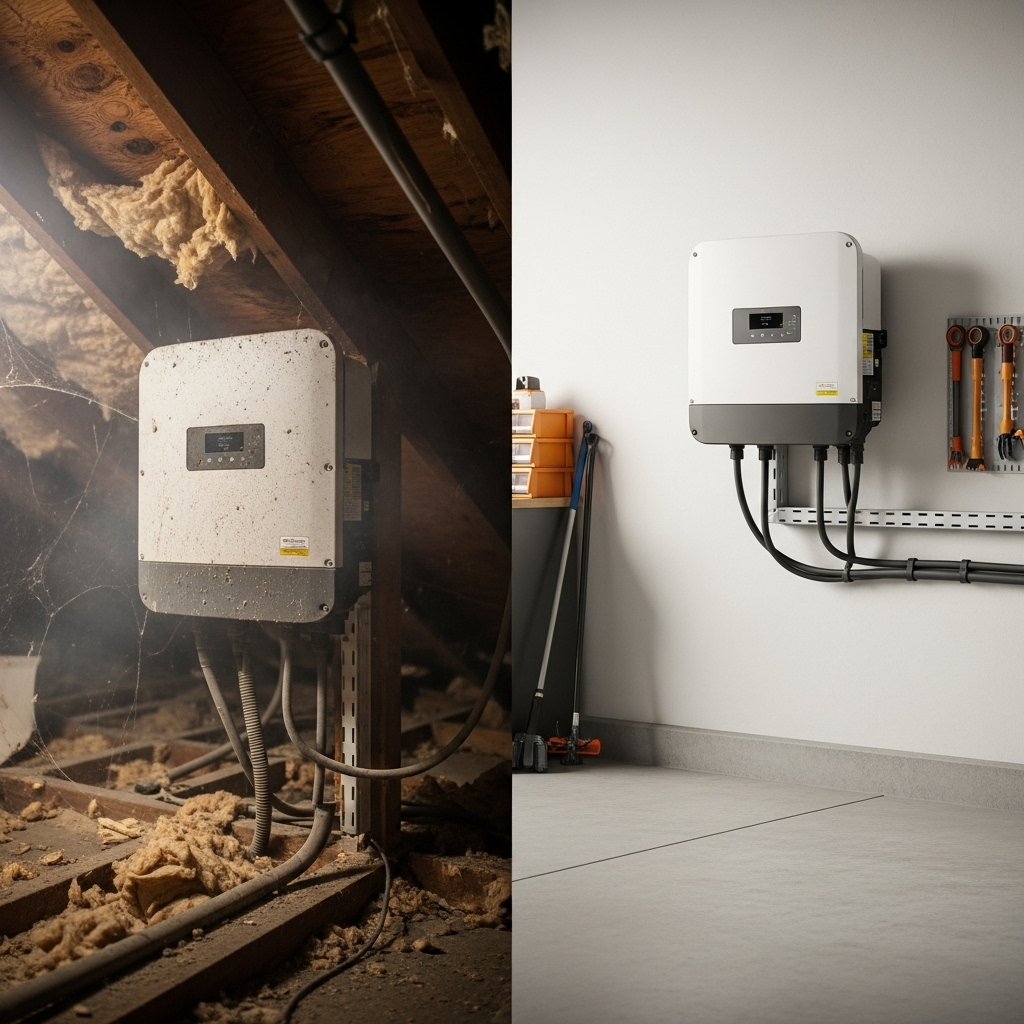

The surrounding air temperature is a primary factor. Inverters installed in hot climates or in locations that trap heat—such as unventilated attics, metal sheds, or areas exposed to direct, prolonged sunlight—are far more likely to overheat. Direct sun exposure alone can raise an inverter's surface temperature significantly higher than the ambient air temperature.

Poor Ventilation and Airflow

Inverters generate a substantial amount of heat as a byproduct of the power conversion process. They rely on cooling systems, which can be passive (heat sinks) or active (fans), to dissipate this heat. If an inverter is installed in a confined space without the manufacturer-specified clearance, airflow is restricted, and heat cannot escape effectively. Dust and debris accumulating on heat sinks or blocking fan vents can also severely impede cooling performance.

Internal Heat Generation and Overload

The very act of converting high currents of electricity generates heat due to internal resistance in the electronic components. If the solar array is oversized for the inverter, or if the energy demand consistently pushes the inverter to its maximum capacity, it will operate at higher internal temperatures. This sustained high-load operation increases the likelihood of derating, especially during the hottest parts of the day when solar production is at its peak.

How Thermal Derating Impacts Performance and Uptime

The consequences of frequent thermal derating extend beyond a temporary dip in power. They create a compounding effect that degrades both the financial return and the physical integrity of your system.

Reduced Energy Yield and Financial Loss

The most immediate impact of inverter uptime reduction is a loss of energy production. When the inverter derates, it converts less of the available solar energy into usable electricity. This directly translates to lower savings on your utility bill or less revenue from feed-in tariffs. For example, a 10 kW inverter that derates by 20% (to 8 kW) for three hours every sunny afternoon can result in a significant loss of generated energy over the course of a year. This consistent power loss directly impacts key performance indicators. As outlined in the Ultimate Reference for Solar Storage Performance, maintaining optimal output is fundamental to achieving the expected return on investment.

Accelerated Component Aging and Reduced Lifespan

Heat is a primary enemy of electronic components. Even if derating prevents immediate failure, frequent operation at elevated temperatures takes a toll. According to reliability engineering principles, a 10°C increase in operating temperature can cut the lifespan of electronic components in half. This means that an inverter that consistently runs hot and derates often will likely have a shorter operational life than one that remains cool, leading to earlier replacement costs.

System Instability and Shutdowns

In systems with persistent overheating issues, derating may not be enough. The inverter might be forced to shut down completely to protect itself, leading to a total loss of power generation until it cools and is manually or automatically reset. This is particularly critical for grid-forming inverters, which are essential for the stability of off-grid or microgrid systems. As noted in the Grid Codes for Renewable Powered Systems report by IRENA, the reliability of inverter-based resources is crucial for modern grid management. Frequent thermal shutdowns compromise this reliability and can disrupt power to critical loads.

A Final Perspective

Inverter thermal derating is more than a minor inconvenience; it is a direct threat to the uptime, efficiency, and longevity of your energy system. It signals that the inverter is under thermal stress, which leads to lost energy production and accelerates equipment aging. By understanding the causes—from high ambient temperatures and poor ventilation to system design—you can take proactive steps. Prioritizing smart installation practices and robust inverter thermal management is not an added expense but a necessary measure to protect your energy independence and maximize the return on your investment.

Frequently Asked Questions

What is a typical temperature for an inverter to start derating?

Most modern inverters begin to derate when their internal temperature reaches approximately 45°C to 50°C (113°F to 122°F). However, this can vary by model and manufacturer. Always consult the inverter's technical datasheet for the specific derating curve and temperature thresholds.

How can I tell if my inverter is derating?

Many modern inverters will display an error code or status message on their screen or in their monitoring app to indicate derating, such as 'Overtemperature' or 'Derating'. Another sign is a noticeable drop in power output during the hottest part of the day, even when the sun is shining brightly.

Does installing an inverter outdoors in a hot climate guarantee it will derate?

Not necessarily. While a hot climate increases the risk, proper installation can mitigate it. Placing the inverter in a permanently shaded location (like the north-facing side of a building), ensuring ample ventilation clearance, and protecting it from direct sun exposure can prevent overheating and derating even in warm environments.
