When evaluating energy storage solutions, one of the most critical performance metrics is round trip efficiency (RTE). This figure directly impacts the economic viability and overall effectiveness of a battery system, especially in solar applications. Understanding RTE is key to grasping how much of your stored energy is actually available for use. This guide provides a thorough overview of what round trip efficiency is, the factors that influence it, and why it is a pivotal consideration for achieving energy independence.
Section 1: What is Round Trip Efficiency?
Round trip efficiency measures the amount of usable energy you can get out of a battery compared to the amount of energy put into it during charging. It's expressed as a percentage and accounts for the energy lost during a complete charge and discharge cycle. For instance, if you charge a battery with 10 kWh of electricity and can only retrieve 9 kWh, the round trip efficiency is 90%. The remaining 10%, or 1 kWh, is lost, primarily as heat, due to internal resistance and other electrochemical inefficiencies.
1.1 The Basic Calculation

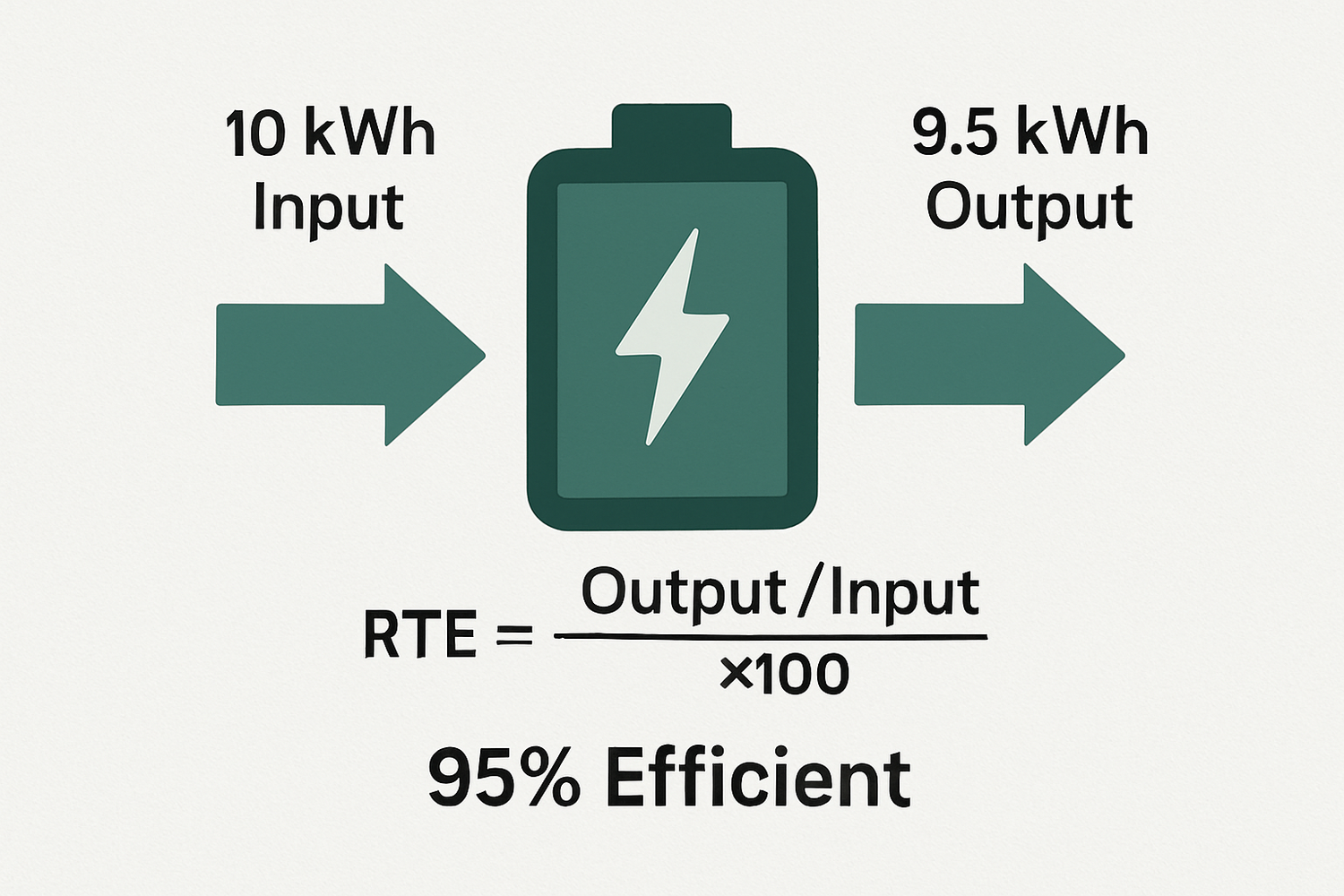

The formula to determine round trip efficiency is straightforward:
RTE (%) = (Total Energy Output / Total Energy Input) x 100
A higher percentage signifies a more efficient battery, meaning less energy is wasted in the storage process. This is a crucial factor for the cost-effectiveness of any energy storage system.
1.2 Why Energy is Lost in the Cycle
Energy losses are an inherent part of a battery's operation. During both charging and discharging, electrical energy is converted into chemical energy and then back again. This process is not perfect. Several factors contribute to these losses:
- Internal Resistance: As electrons flow through the battery, they encounter resistance, which generates heat and dissipates energy.
- Electrochemical Processes: The chemical reactions that store and release energy are not 100% efficient.
- Auxiliary Components: The overall system efficiency is also affected by components like the inverter, which converts DC electricity from the battery to AC for home use, and the Battery Management System (BMS).
Minimizing these losses is a primary goal in battery design and is central to achieving high round trip efficiency. For a deeper dive into this topic, you can read A Blueprint for Measuring Lithium Battery Pack Efficiency.
Section 2: Key Factors Influencing Round Trip Efficiency
A battery's round trip efficiency is not a static number; it is influenced by several operational and environmental factors. Understanding these variables is essential for optimizing the performance of an energy storage system.
2.1 Battery Chemistry
Different battery chemistries have inherently different efficiencies. Lithium-ion batteries, particularly Lithium Iron Phosphate (LiFePO4), are known for their high RTE, often exceeding 90-95%. In contrast, traditional lead-acid batteries typically have a lower RTE, generally in the range of 70-85%. This significant difference makes LiFePO4 batteries a more efficient choice for applications like home solar storage, where maximizing usable energy is paramount. For a detailed comparison, see our article: LiFePO4 vs Lead-Acid: A Battery Efficiency Comparison.
2.2 Charge and Discharge Rates (C-Rates)
The speed at which a battery is charged and discharged has a direct impact on its efficiency. Faster charging and discharging, known as high C-rates, increase internal resistance and generate more heat, leading to greater energy loss and lower RTE. Slower, more controlled rates generally result in higher efficiency. This is a key consideration in designing an energy storage system that balances speed with performance. The U.S. Department of Energy provides extensive research on how charging protocols affect battery performance.
2.3 Temperature
Batteries operate best within a specific temperature range. Extreme cold or heat can negatively affect the electrochemical reactions within the battery, reducing its efficiency. High temperatures can accelerate component degradation, while very low temperatures can increase internal resistance. Therefore, proper thermal management is crucial for maintaining optimal performance. To learn more about this, explore Does Temperature Affect 12V LiFePO4 Battery Efficiency?.
2.4 Depth of Discharge (DoD) and State of Charge (SOC)
Depth of Discharge refers to the percentage of the battery's capacity that has been used. Consistently discharging a battery to a very low state of charge can impact its long-term health and efficiency. While LiFePO4 batteries can handle deep discharges without significant degradation, operating them within an optimal SOC window (e.g., between 20% and 80%) can help preserve their efficiency over their lifespan. You can find more information in our article on 5 Factors Hurting Your Deep Cycle Lithium Battery Efficiency.
Section 3: Round Trip Efficiency in Solar Energy Systems
In the context of solar energy, round trip efficiency is a particularly vital metric. Solar panels generate electricity during the day, and any excess energy is stored in a battery for use at night or during periods of low sunlight. A high RTE ensures that the maximum amount of this captured solar energy is available when you need it most, enhancing energy independence and reducing reliance on the grid.
3.1 Maximizing Your Solar Investment
A battery with low round trip efficiency effectively wastes a portion of the solar energy you've generated. For example, a system with an 80% RTE means that 20% of your stored solar power is lost before you can use it. Over the lifetime of the system, this can amount to a significant loss of energy and financial savings. High-efficiency batteries, like the LiFePO4 models used in ANERN's home energy storage systems, ensure that you get the most out of every kilowatt-hour of solar power produced. The International Energy Agency (IEA) highlights the growing importance of efficient battery storage in its reports on the transition to clean energy.
3.2 System-Level Efficiency
It's important to consider the efficiency of the entire energy storage system, not just the battery itself. This includes the solar inverter, which is responsible for converting DC power from the solar panels and battery into usable AC power for your home. High-efficiency inverters minimize energy loss during this conversion process. ANERN's integrated ESS solutions are designed with high-performance components, including advanced hybrid inverters, to deliver superior system-wide round trip efficiency.
| Feature | LiFePO4 Battery | Lead-Acid Battery |
|---|---|---|
| Typical Round Trip Efficiency | 90-95%+ | 70-85% |
| Lifespan (Cycles) | 2,000 - 5,000+ | 300 - 700 |
| Usable Capacity (DoD) | 80-100% | 30-50% |
| Maintenance | Minimal | Regular (e.g., water refilling) |
For those looking to get the most out of their setup, consider reading How to Maximize Your Home Battery Storage System Efficiency and Unlock Peak Performance in Your Solar Energy Storage System.
Section 4: The ANERN Advantage in Energy Storage
With years of experience in the solar industry, ANERN specializes in developing reliable and scalable energy solutions. Our focus on high-performance LiFePO4 battery technology is central to providing systems with exceptional round trip efficiency. This commitment ensures our customers achieve greater energy independence and maximize the return on their investment.
4.1 High-Performance LiFePO4 Batteries
Our lithium batteries are engineered for superior performance, safety, and longevity. With a round trip efficiency that consistently ranks at the top of the industry, you can be confident that you are storing and using your energy with minimal waste. This efficiency is a cornerstone of our off-grid solar solutions and home energy storage systems.
4.2 Integrated and Optimized Systems
ANERN provides complete energy storage systems that integrate our advanced LiFePO4 batteries with high-efficiency hybrid inverters and solar panels. By designing these components to work together seamlessly, we optimize the overall system efficiency, delivering more usable power to your home, farm, or cabin. This integrated approach simplifies installation and ensures reliable operation for years to come.
Your Path to Energy Efficiency
Round trip efficiency is more than just a technical specification; it's a direct measure of how effectively your energy storage system can help you achieve your energy goals. A higher RTE translates to less wasted energy, greater cost savings, and a smaller environmental footprint. As the U.S. Energy Information Administration (EIA) notes, the rapid growth in battery storage is a key component of the nation's evolving energy landscape, making efficiency more important than ever. By choosing advanced technologies like LiFePO4 batteries and well-designed systems, you are investing in a more resilient and efficient energy future. To better understand common misconceptions, check out our article on Lithium Battery Efficiency Myths vs. Reality for Solar.
Disclaimer: This article is for informational purposes only and does not constitute financial or investment advice. Please consult with a qualified professional before making any decisions related to energy systems.
