Q&A: SOC Drift in Off-Grid ESS—Causes and Fast Fixes

An accurate State of Charge (SOC) reading is fundamental for managing your off-grid energy storage system (ESS). It acts as your battery's fuel gauge, telling you how much energy you have available. When this gauge becomes unreliable—a phenomenon known as SOC drift—it can lead to unexpected system shutdowns and compromise your energy independence. This Q&A explains the causes of SOC drift and provides straightforward fixes to restore accuracy to your battery monitoring.

Why Your Battery Gauge Can Be Misleading: The Basics of SOC Drift

To fix a problem, you first need to know its origin. SOC drift isn't a random error; it's a predictable issue stemming from how battery monitors estimate charge. Understanding this process is the first step toward a solution.

What is State of Charge (SOC)?

SOC represents the level of charge of a battery relative to its capacity, expressed as a percentage. A Battery Management System (BMS) primarily uses a method called Coulomb counting to track this. It continuously measures the current flowing in and out of the battery. While very precise in the short term, this method has a weakness. It's like tracking a car's fuel level by measuring fuel flow instead of looking at the gauge; small measurement errors can add up.

The Root of the Problem: Cumulative Errors

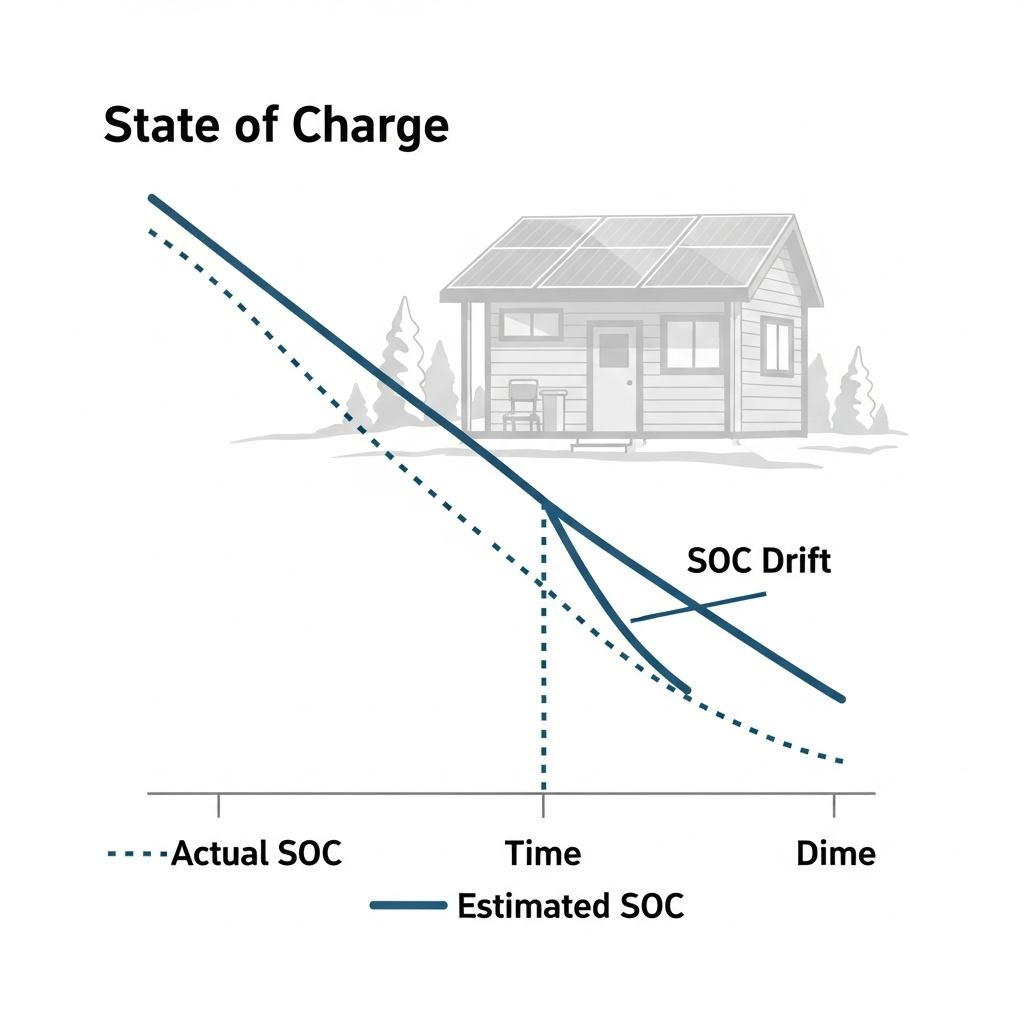

SOC drift occurs because tiny, unavoidable inaccuracies in current measurement accumulate over many charge and discharge cycles. Factors like the battery's self-discharge, temperature fluctuations, and minor sensor imperfections contribute to this growing error. Over time, the SOC value calculated by the BMS 'drifts' away from the battery's true state of charge. The BMS might report 30% capacity when the actual level is closer to 5%, leading to a sudden loss of power.

Key Causes of SOC Drift in Off-Grid Systems

In a typical off-grid setup, several factors accelerate SOC drift. Identifying them in your own system is key to implementing a lasting fix.

Partial and Incomplete Charging Cycles

The most common cause of SOC drift in solar-based systems is the lack of regular full charges. Off-grid systems often operate in a partial state of charge (e.g., between 30% and 80%) due to variable sunlight. The BMS resets its accumulated error and recalibrates the SOC to 100% only when the battery is completely full. Without this periodic reset, the calculation error grows unchecked.

Incorrect BMS Settings and Sensor Faults

Your system is only as smart as its configuration. If the battery capacity programmed into the BMS or system monitor is incorrect, all SOC calculations will be inaccurate from the start. For example, if you set the capacity to 200Ah for a 190Ah battery, the monitor will consistently overestimate the remaining energy. Likewise, a faulty or low-quality current shunt can feed bad data to the BMS, making drift inevitable.

Environmental and Battery Health Factors

LiFePO4 batteries are robust, but their performance is still influenced by their environment. Extreme temperatures can alter a battery's voltage characteristics, temporarily confusing the BMS. Additionally, as a battery ages, its effective capacity decreases and its self-discharge rate may increase. If the BMS doesn't account for these changes, its SOC calculations will become less accurate over time.

How to Diagnose and Confirm SOC Drift

Before you can apply a fix, you need to be certain that SOC drift is the problem. A few telltale signs can confirm your suspicions.

Spotting the Warning Signs

Look for these common symptoms:

• Unexpected Shutdowns: The system turns off due to low voltage while the monitor still shows a reasonable SOC (e.g., 20% or more).
• Rapid Charging Illusion: The battery appears to charge from a low state to 100% in an impossibly short amount of time.
• Voltage Mismatch: The battery's voltage reading seems inconsistent with the displayed SOC percentage.

Using Voltage as a Reality Check

For LiFePO4 batteries, voltage provides a good secondary check for SOC, but only when the battery is at rest (no significant charging or discharging for at least 30 minutes). Compare your battery's resting voltage to a standard chart. If the voltage corresponds to a 20% SOC but your monitor reads 50%, you have confirmed SOC drift.

Battery State of Charge (SOC)	12V LiFePO4 Voltage (At Rest)
100%	13.4V - 13.6V
90%	13.3V
50%	13.1V
20%	12.9V
0%	11.6V - 12.0V

Note: For a 24V system, multiply these voltage values by two. For a 48V system, multiply by four.

Actionable Fixes for Restoring Accurate SOC

Once you have confirmed SOC drift, you can use a few straightforward methods to recalibrate your system and prevent future inaccuracies.

The Primary Fix: The Full Charge Reset

The simplest and most effective solution is to force a full 100% charge. This allows the BMS to find its upper reference point and reset its internal SOC counter.

1. Charge your battery bank using solar, a generator, or shore power until the charging current drops to a very low level (typically less than 1-2% of the battery's Ah rating).
2. At this point, the BMS should recognize the battery is full and automatically reset the SOC to 100%.
3. Allow the battery to sit fully charged for an hour or two if possible. This ensures a complete calibration.

This simple reset should be your go-to fix and a regular part of your maintenance routine.

Advanced Calibration: The Full Discharge-Charge Cycle

If a full charge reset doesn't resolve persistent inaccuracies, a full cycle calibration may be necessary. This process helps the BMS learn both the top and bottom limits of your battery's capacity.

1. Start by performing a full charge reset as described above.
2. Apply a moderate, consistent load and allow the battery to discharge until the BMS performs its low-voltage cutoff.
3. Immediately and without interruption, fully recharge the battery back to 100%.

Disclaimer: This deep discharge places stress on the battery and should not be done frequently. Reserve this procedure for severe drift issues, perhaps once or twice a year.

Long-Term Prevention and System Optimization

Preventing drift is better than fixing it. Ensure your BMS is programmed with the correct battery capacity and that all sensors are functioning properly. The need for precise battery management is amplified as storage becomes more critical. As noted in a report by IRENA, Grid Codes for Renewable Powered Systems, battery storage is increasingly used for fast frequency response, a service that demands instantaneous and accurate power delivery. This level of precision is impossible without a correctly calibrated SOC. Furthermore, the constant innovation in energy storage technologies, as detailed in the Offshore wind energy: Patent insight report, highlights the sophisticated electronics involved. These systems depend on accurate data to function correctly. Achieving stable performance relies on understanding these metrics. A comprehensive look at key performance indicators for solar storage, such as round-trip efficiency and depth of discharge, can provide deeper insights into optimizing your system's health.

Maintaining Accurate Energy Awareness

SOC drift is a manageable aspect of running an off-grid ESS. It is not a sign of a faulty battery but rather a predictable outcome of how battery monitors function. By understanding its causes and performing regular full charge cycles, you can ensure your SOC monitor remains a reliable tool. An accurate energy gauge gives you the confidence to manage your power effectively, extending battery life and securing your energy independence.

Frequently Asked Questions (FAQ)

How often should I perform a full charge calibration?

A full charge reset (charging to 100%) should happen as often as possible, ideally once every few days in an off-grid setting. A full discharge-charge cycle is more intensive and should only be performed if you suspect significant drift, perhaps once or twice a year.

Can SOC drift damage my LiFePO4 batteries?

Indirectly, yes. If the BMS thinks there is more charge than there actually is, it might allow the battery to over-discharge before initiating a low-voltage cutoff. Deep over-discharging can permanently damage LiFePO4 cells.

My SOC jumps to 100% suddenly near the end of a charge. Is this drift?

This is typically normal behavior. It indicates the BMS has recognized the battery is full (based on voltage and low charge current) and has reset its internal counter to 100%. This is the calibration process working as intended.

Why is my voltage-based SOC reading different from the BMS reading?

A voltage-based reading is only accurate when the battery is at rest (not charging or discharging). The BMS calculates SOC continuously, accounting for current flow. Discrepancies are normal during operation but should align closely after the battery has rested for 30-60 minutes.
