Multimeter to Thermal Cam: Tools to Hunt Off-Grid Faults

Living off-grid provides incredible freedom, but that independence comes with the responsibility of maintaining your own power system. When something goes wrong, you are the first line of defense. Fortunately, with the right diagnostic tools, you can pinpoint and resolve many common issues yourself. This text covers the indispensable tools, from the fundamental multimeter to the advanced thermal camera, that empower you to conduct effective electrical fault detection in your off-grid system.

The Foundation of Fault Finding: The Digital Multimeter

A digital multimeter is the most critical diagnostic tool for any off-grid system owner. It provides precise electrical measurements, taking the guesswork out of troubleshooting. Understanding its basic functions is the first step toward mastering your system's maintenance.

Key Electrical Measurements

Your multimeter measures three core electrical properties:

• Voltage (V): Think of voltage as electrical pressure. You will use this to check if components like solar panels and batteries are operating within their expected range.
• Current (A): Current is the flow of electrical charge. Measuring it helps you confirm if your panels are producing power or if an appliance is drawing the correct amount of energy.
• Resistance (Ω): Resistance measures how much a material opposes the flow of electricity. You can use it to test fuses and check for breaks in wiring (continuity).

Practical Checks for Your System

With a multimeter in hand, you can perform several vital checks:

• Solar Panel Voltage: Disconnect a solar panel and measure its Open-Circuit Voltage (Voc) in full sun. Compare this reading to the specifications on the panel's data sheet. A significantly lower voltage may indicate a problem with the panel.
• Battery Bank Voltage: Regularly check your battery bank's voltage. This gives you a quick snapshot of its state of charge and overall health. A consistently low voltage can signal issues with charging or excessive loads.
• Continuity Tests: Use the resistance or continuity setting (it often beeps) to check for broken wires or blown fuses. A good fuse or an unbroken wire will show very low resistance or trigger the continuity beep, confirming a solid connection.

Seeing the Unseen: The Power of a Thermal Camera

While a multimeter gives you numbers, a thermal camera gives you a picture. It visualizes heat, which is often the first sign of an electrical problem. Unwanted resistance in a circuit generates heat, and a thermal camera makes these hot spots instantly visible before they can cause a catastrophic failure.

Identifying Hot Spots in Your System

A quick scan with a thermal camera while your system is operating under load can reveal hidden faults:

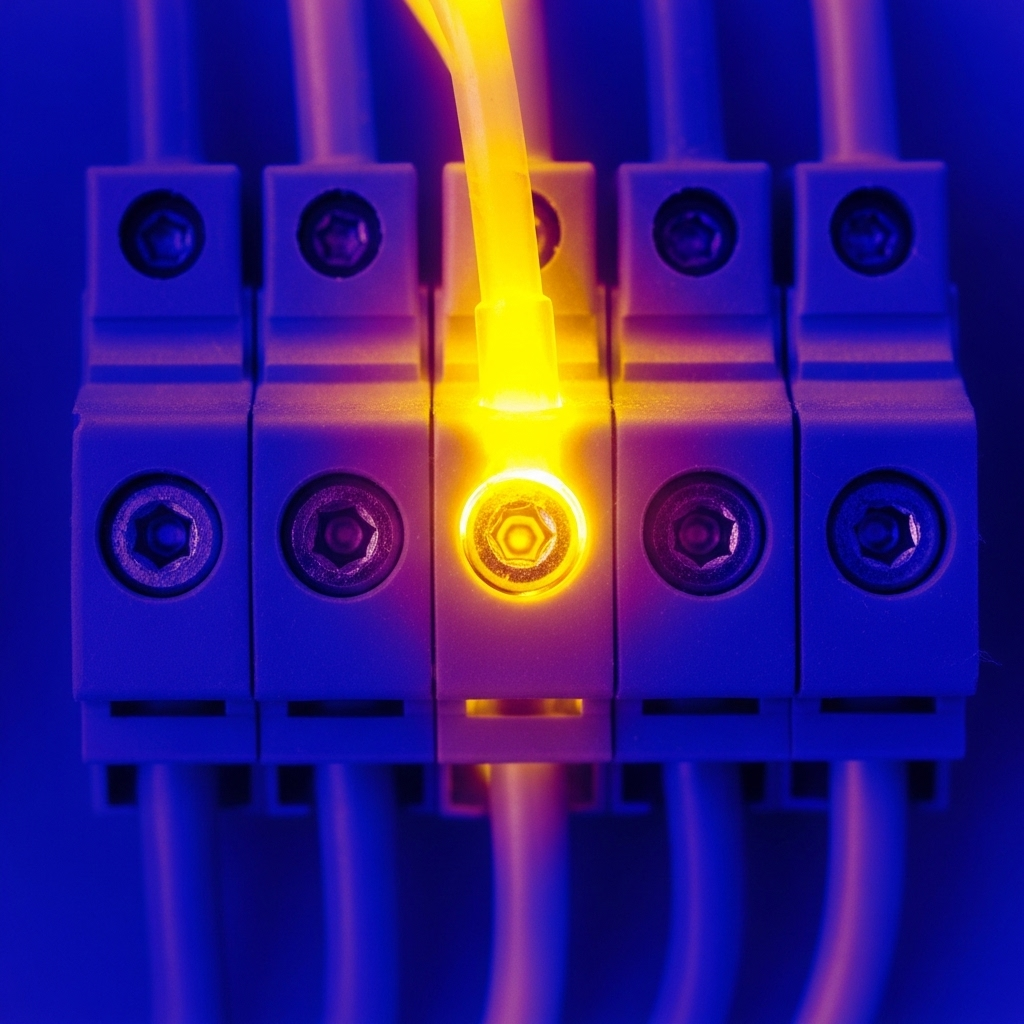

• Connections and Terminals: A loose or corroded connection at a breaker, bus bar, or terminal lug will have higher resistance and appear significantly hotter than adjacent connections. This is one of the most common and easily identifiable faults.
• Inverters and Charge Controllers: While these devices generate some heat during normal operation, an unusually hot component or section could signal an internal fault or that the device is overloaded and struggling to perform.
• Battery Terminals: A hot battery terminal almost always points to a loose connection that needs immediate attention. In some cases, a thermal scan can even help identify an individual failing cell in a battery bank that is running hotter than its neighbors.

Combining Tools for Advanced Troubleshooting

The true power of these tools is unlocked when you use them together. A systematic approach allows you to move from a general symptom to a specific cause with confidence and efficiency. The principle of post-fault evaluation, a concept also applied to large-scale grids as discussed in IRENA's report Grid Codes for Renewable Powered Systems, is equally valuable for an off-grid setup. It involves analyzing what happened after an event to find the root cause.

A Systematic Diagnostic Workflow

Instead of guessing, follow a logical process. If you notice a drop in performance, start with the data. For a deep dive into what metrics to track, the ultimate reference on solar storage performance provides a comprehensive framework for evaluating your system's health. Once you have a suspected area, use your tools:

1. Observe: Note the symptoms. Is the inverter shutting down? Is power output lower than expected?
2. Measure: Use the multimeter to check voltages and confirm that all parts of the circuit are receiving the correct electrical pressure.
3. Visualize: Use the thermal camera to scan for hot spots, especially around connections, breakers, and active electronics.

Beyond the Basics: Other Useful Diagnostic Tools

While a multimeter and thermal camera cover most situations, a few other tools can be helpful for more advanced diagnostics.

Clamp Meter

A clamp meter is a specialized device that measures current (amperage) by clamping around a wire. Its main advantage is that you do not need to disconnect the wire to take a reading. This makes it safer and faster for measuring current from your solar array or the draw from your inverter.

Insulation Resistance Tester

Also known as a 'megger', this tool is used for more advanced diagnostics. It applies a high voltage to wiring to detect any breakdown in the wire's insulation. This is crucial for identifying potential short-circuit risks that a standard multimeter cannot find. This test should be performed with caution and an understanding of the procedure.

Empowering Your Energy Independence

Owning an off-grid system is about more than just components; it's about owning your power. Equipping yourself with tools like a multimeter and a thermal camera transforms you from a passive energy user into a proactive system manager. These instruments help you find and fix faults quickly, minimizing downtime and ensuring the long-term reliability of your power supply. As the International Energy Agency notes in Getting Wind and Solar onto the Grid, improving component reliability and reducing faults are key to maximizing system availability. By learning to use these tools, you take a significant step toward securing your energy independence for years to come.

Frequently Asked Questions

Can I use a cheap multimeter for my solar system?

For basic voltage and continuity checks, an inexpensive multimeter can work. However, for safety and accuracy, a quality autoranging multimeter with a CAT III or CAT IV safety rating is highly recommended. These ratings ensure the tool can safely handle the potential voltage spikes in a solar installation.

Are thermal cameras expensive?

While professional-grade thermal cameras can be a significant investment, many affordable models designed to attach to a smartphone are now available. For a homeowner diagnosing a residential off-grid system, these entry-level cameras are often powerful enough to identify critical hot spots effectively.

What is the most common fault these tools can find?

Loose electrical connections are an extremely common point of failure in all electrical systems, including solar. They create resistance, which generates heat and causes voltage drops. Both a multimeter (by showing incorrect voltage) and a thermal camera (by revealing a glowing hot spot) are excellent at detecting this widespread issue.

Do I need all these tools to manage my off-grid system?

A quality digital multimeter is the absolute minimum diagnostic tool every off-grid system owner should have. A thermal camera is a powerful second step that dramatically speeds up troubleshooting. Other tools like clamp meters and insulation testers are more specialized and may not be necessary for every user but are valuable for those who want a deeper diagnostic capability.
