Understanding Solar Power Terminology

Solar language can feel dense at first. The good news: a few core ideas unlock the rest. This page builds a solid base in Solar Basics, Photovoltaic Terminology, and Solar Panel Definitions. It uses plain language, real numbers, and field-tested tips. You can skim the Solar Energy Glossary sections, then jump to deeper pieces through the related links.

Our team works across lithium battery design, energy storage systems (ESS), and hybrid inverters. We see the same questions from homeowners, installers, and facility managers. The insights below come from hands-on commissioning, warranty root-cause reviews, and training sessions.

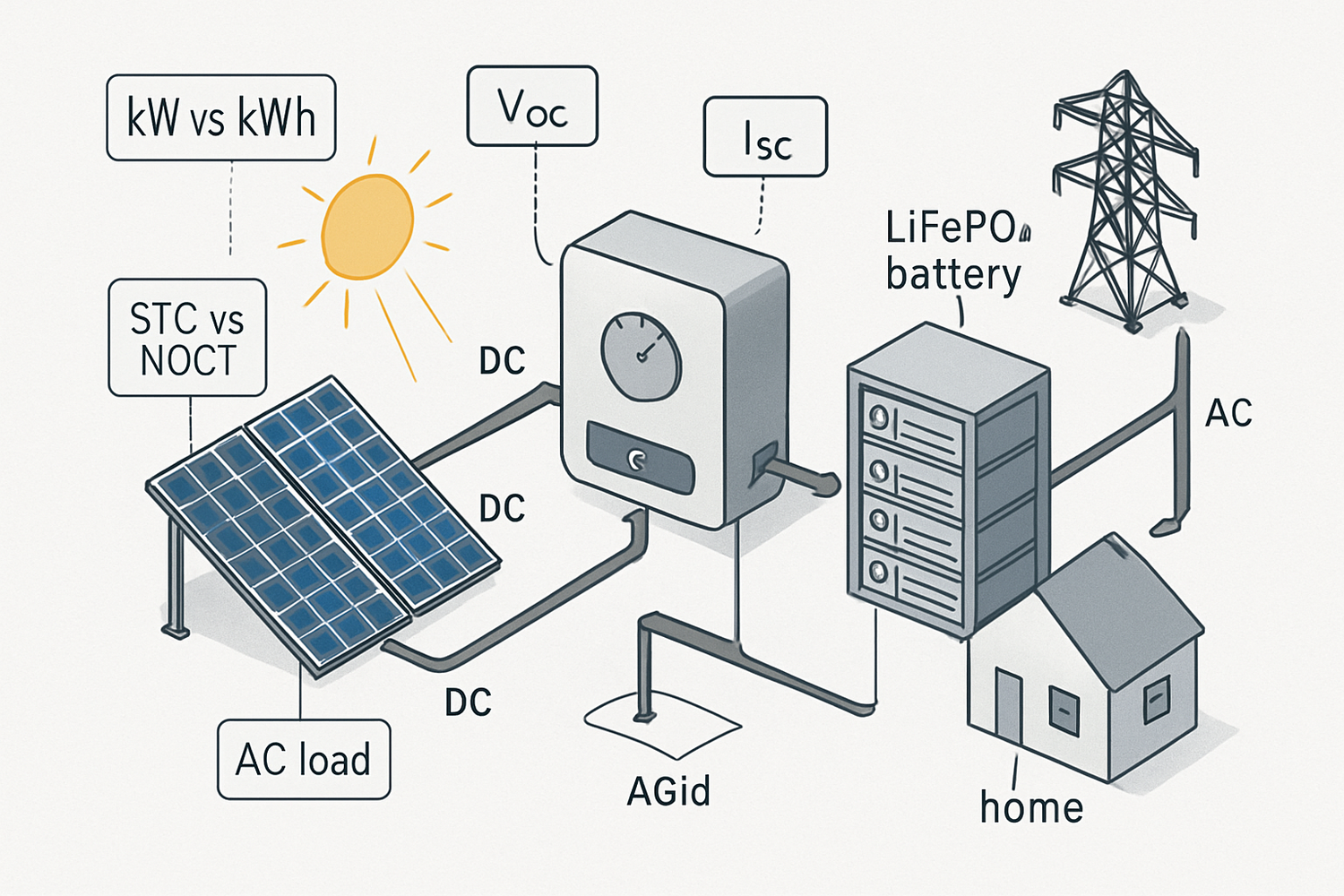

Visual map of a solar PV + ESS system with core terms labeled

1) Solar basics you will use every day

Power vs energy: kW and kWh

Power is the rate. Energy is the amount. Kilowatt (kW) measures instantaneous power. Kilowatt-hour (kWh) measures total energy over time.

Think of kW as “how fast.”
Think of kWh as “how much.”

Example: a 5 kW PV array under strong sun may deliver about 5 kW at a moment in time. If it holds that output for 2 hours, it produces about 10 kWh.

Want a deeper dive into units and myths? See Myth vs Reality: kW vs kWh and Why It Matters for Homes and 21 Solar Units and Metrics Decoded: kW, kWh, VOC, SoC.

AC, DC, and the job of the inverter

Solar panels make direct current (DC). Your home and the grid use alternating current (AC). The inverter converts DC to AC. A hybrid inverter also manages batteries. It supports both solar charging and backup power. ANERN’s solar inverter line focuses on stable AC output, battery control, and safe grid interaction. That means cleaner switchover and better longevity for loads.

Off-grid inverters power standalone systems. Good for cabins, farms, or remote sites.
Grid-tied inverters sync with utility power. Good for net metering setups, where available.
Hybrid inverters combine both. They pair well with ANERN’s LiFePO4 storage for backup and time-of-use shifting.

New to acronyms? Start with The Ultimate Guide to Solar Power Acronyms for Beginners and Quick Reference: PV, ESS, kWh, LCOE - Acronyms You Use Daily.

Sunlight and production: GHI, DNI, and capacity factor

Global Horizontal Irradiance (GHI) is the sun’s power hitting a horizontal surface. Direct Normal Irradiance (DNI) is direct beam sunlight on a surface pointed at the sun. Most fixed PV modules track closer to GHI-based performance.

Annual production depends on location. In many regions, a 1 kW DC PV system yields roughly 1,200–1,800 kWh per year. That aligns with capacity factors around 14–21%, which matches public data for utility-scale PV in the United States. See IEA and EIA references below.

For definitions and data-backed context, check Data-Backed Glossary: Standard Test Conditions, NOCT, BOS.

2) Photovoltaic terminology on spec sheets

VOC, ISC, VMP, IMP, PMAX

VOC (Open-Circuit Voltage): panel voltage with no load. Important for cold-weather string sizing.
ISC (Short-Circuit Current): current with output shorted. Used for string and fuse sizing.
VMP (Voltage at Maximum Power) and IMP (Current at Maximum Power): where the module delivers peak power.
PMAX or Pmpp: the rated power at maximum power point under test conditions.

Typical numbers for a modern 54–60 cell module might be VOC ~38–45 V, ISC ~10–12 A, VMP ~31–38 V, IMP ~9–11 A, PMAX ~350–450 W. Values vary by model and temperature. Always check the exact datasheet.

For a practical read of real labels, see How to Read a PV Spec Sheet: VOC, ISC, STC Explained.

STC vs NOCT (and why field output is lower)

STC (Standard Test Conditions): irradiance 1000 W/m², cell temperature 25°C, air mass 1.5. Nameplate power is based on STC.
NOCT (Nominal Operating Cell Temperature): estimates cell temperature under real outdoor conditions. Expect lower power than STC.

Panels run hotter than 25°C on a roof, so power drops. Temperature coefficients tell you how fast it falls. A common coefficient is around −0.3% to −0.5% per °C for power. If cell temperature rises by 25°C above STC, power can slip by 7.5–12.5%.

Temperature coefficients and string sizing

Always check the voltage temperature coefficient (often around −0.25% to −0.35%/°C). Cold weather raises VOC. Your string in series must stay within the inverter’s maximum input voltage at the coldest expected temperature. Many hybrid inverters have an input limit in the 500–600 V or 1000 V class. A proper margin keeps the DC bus safe.

Quick view: STC vs NOCT and real-world impact
Parameter	STC	NOCT / Field	Practical note
Irradiance	1000 W/m²	400–1000 W/m²	Clouds, angle, and season reduce irradiance.
Cell temperature	25°C	~40–65°C on hot roofs	Higher temp lowers power via temp coefficient.
Rated power	Nameplate (e.g., 400 W)	Often 75–90% of STC at mid-day	Site and airflow drive variance.

For a deeper glossary, see Stop Confusion: A Plain-English Glossary for Solar Jargon.

3) Storage and ESS language made practical

ESS, BESS, PCS, BMS

ESS: Energy Storage System. The complete storage setup—battery modules, BMS, power electronics, and controls.
BESS: Battery Energy Storage System. A battery-focused ESS.
PCS: Power Conversion System. Bidirectional inverter/charger that moves power between DC batteries and AC loads.
BMS: Battery Management System. Monitors cells, balances voltages, enforces current/temperature limits, and protects the pack.

For a clean overview, start with What Does ESS, BMS, and Inverter Mean in Solar Systems?.

SoC, DoD, cycle life (LiFePO4 focus)

SoC: State of Charge (% full).
DoD: Depth of Discharge (% used). 80% DoD means 20% SoC remains.
Cycle life: number of charge/discharge cycles until the battery reaches a defined end-of-life capacity (often 70–80% of original).

LiFePO4 (LFP) storage is popular for home and off-grid systems due to stability and long cycle life. Many quality LFP packs reach 4,000–6,000+ cycles at 80% DoD in typical use. That equals 10+ years in daily cycling scenarios. Real outcomes depend on temperature, C-rate, and BMS controls. ANERN’s lithium battery line uses LiFePO4 chemistry with a robust BMS. It targets safe operation, consistent output, and scalable capacity for home ESS.

For data, scenarios, and cycle planning, see What Is DoD, SoC, and Cycle Life in LiFePO4 Storage?.

Round-trip efficiency, C-rate, and coupling

Round-trip efficiency: energy out divided by energy in. Many LFP systems reach ~90–95% at the battery level, while whole-system values are lower once inverter and wiring losses are included.
C-rate: charge/discharge current relative to battery capacity. A 1C rate empties a pack in 1 hour. Most home ESS run at 0.2C–0.5C for longevity.
DC-coupled vs AC-coupled: DC-coupled batteries connect on the DC side of a hybrid inverter. AC-coupled batteries connect via a battery inverter on the AC side. DC coupling often reduces conversion steps. AC coupling can be flexible for retrofits.

ANERN’s home ESS integrates LiFePO4 batteries, a hybrid inverter, and PV. The goal is a clean install, fewer boxes, and coordinated control for backup and self-consumption.

4) Design and performance metrics that matter

ILR (inverter loading ratio) and DC/AC ratio

ILR is DC array nameplate divided by inverter AC rating. For example, 7.5 kW DC on a 6 kW inverter gives an ILR of 1.25. A modest oversize raises annual energy by clipping a few peak hours while boosting shoulder-hour harvest. Common ILR values are 1.1–1.4 for residential and small C&I. Site, climate, and inverter thermal limits drive the final choice.

PR (performance ratio), O&M, BOS

PR (Performance Ratio): measured energy divided by expected energy after adjusting for irradiance and system size. PR helps track losses.
O&M: Operations and Maintenance. Regular checks, cleaning, and firmware updates keep yield steady.
BOS: Balance of System. Everything but the PV modules—racking, wiring, combiner boxes, fuses, and labor.

For terminology grounded in field data, see Data-Backed Glossary: Standard Test Conditions, NOCT, BOS.

LCOE and LCOS made simple

LCOE (levelized cost of electricity) blends all PV system costs and output over its life into a cost per kWh. LCOS (levelized cost of storage) does the same for storage. These metrics help compare options, but inputs matter: financing, O&M, replacements, and expected degradation rates.

For a primer on units and economics, see Beginners Blueprint to Solar Units: From V and A to LCOE.

Rule-of-thumb values (check your site and datasheets)
Metric	Typical range	Notes
Capacity factor (rooftop PV)	12–22%	Climate and tilt drive results. See EIA/IEA for regional data.
ILR (residential)	1.1–1.4	Higher ILR improves shoulder energy with some clipping.
Battery round-trip efficiency (LFP)	90–95% (cell-to-pack)	System-level efficiency is lower once AC conversions are included.
PV temp coefficient (power)	−0.3% to −0.5%/°C	Lower magnitude is better in heat.

5) Policy and grid terms you will see in specs or contracts

Note: general information only. Not legal or financial advice.

FIT (Feed-in Tariff) and FIP (Feed-in Premium): policy tools that set payouts for solar exports. Terms vary by country or utility.
IPP (Independent Power Producer): a non-utility power developer. Often used in utility-scale solar contracts.
GFM (Grid-Forming) and IBR (Inverter-Based Resource): categories for advanced inverter functions on modern grids.
PII (Permitting, Inspection, and Interconnection): steps needed to connect to the grid.

Always confirm local rules with your authority having jurisdiction and utility. Terms change across regions.

6) Mini case study: decoding a 5 kW off-grid label

Suppose you see: “5 kW Off-Grid Kit: 5 kW PV, 10 kWh LiFePO4, 5 kVA hybrid inverter, MPPT 120 A, VOC max 500 V, STC 400 W panels x 12.”

5 kW PV: likely 12 panels at 400 W STC each. On a warm day, expect lower operating power due to temperature and irradiance.
VOC max 500 V: string design must keep worst-case cold VOC below 500 V. If each panel VOC is 41 V at STC, adjust for cold (e.g., −10°C ambient may push per-module VOC to ~46–48 V). Ten in series could sit near 460–480 V. That is close to the 500 V limit, so confirm the exact temp coefficient before finalizing.
Hybrid inverter 5 kVA: continuous power to loads. Check surge rating for motor starts (pumps, compressors).
MPPT 120 A: total PV charging current limit at battery voltage. Ensure string count and MPPT input range match the charge window.
10 kWh LiFePO4: with 80% usable DoD, usable energy is ~8 kWh. At a 0.5C discharge, expect around 5 kW continuous battery output if the PCS supports it.

Daily production estimate: with 5 kW DC and a moderate site, plan for roughly 20–30 kWh on a clear day, less in winter or cloudy periods. Use a local irradiance tool to refine. For a line-by-line guide, see Case Study: Decoding a 5 kW Off-Grid Kit Label Line by Line.

ANERN match-up: an ANERN off-grid solar package pairs LiFePO4 batteries with a hybrid inverter sized for your loads and a panel count that keeps VOC within limits. The BMS and inverter work together to protect the pack and improve uptime.

7) Charge controllers, MPPT vs PWM, and real effects

PWM (Pulse Width Modulation) is simple and low cost. It matches panel voltage to battery voltage with switching. MPPT (Maximum Power Point Tracking) sweeps the IV curve to find Vmp and pull more power under changing conditions. The gain varies with temperature, irradiance, and array voltage.

In cool weather and partial cloud cover, MPPT tends to win by a clear margin.
With higher panel-to-battery voltage ratios, MPPT benefits are larger.
For small 12 V systems with low-cost modules, PWM can still make sense.

See MPPT vs PWM: Which Charge Controller Fits Your System?.

8) Frequent terminology mistakes (and quick fixes)

Confusing kW and kWh. Fix: think “rate” versus “amount.” Re-check battery energy in kWh, not kW.
Using STC power for energy estimates. Fix: adjust for temperature and irradiance; look at NOCT and local climate.
Ignoring battery usable capacity. Fix: apply usable DoD and round-trip efficiency when sizing.
Overlooking cold VOC limits. Fix: calculate string VOC at the minimum site temperature.
Skipping ILR optimization. Fix: consider a modest DC oversize to boost annual kWh.

More examples and fixes in 9 Terminology Mistakes New Solar Buyers Often Make.

9) Putting the terms together: a simple sizing flow

List critical loads and daily energy (kWh). Add peak power (kW) and surge needs.
Pick a realistic PV yield for your area (kWh per kW per day). Use public data or a calculator.
Choose ILR and inverter size to cover peaks and boost shoulders.
Size battery for usable kWh with DoD and efficiency. Check C-rate and PCS limits.
Verify VOC/ISC vs inverter and controller limits at temperature extremes.
Plan O&M: cleaning, shade checks, and firmware updates. The U.S. Department of Energy reports that practical tools and maintenance can protect yield over time.

For a handy, plain-English set of definitions, see Stop Confusion: A Plain-English Glossary for Solar Jargon.

ANERN solutions mapped to the terminology

LiFePO4 lithium battery: high stability, long cycle life, and a BMS that protects cells and shares data with the inverter.
Home ESS storage: an integrated stack that combines LiFePO4 modules, a hybrid inverter, and PV inputs for backup and daily shifting.
Off-grid solar: packaged solutions for homes, farms, and cabins. Designed for safe VOC/ISC margins and right-sized MPPT charging.
Solar inverter: DC-to-AC conversion with strong voltage and frequency control. Hybrid models add battery charging and backup modes.

The focus is reliability and scalability. Start small, then add capacity as your needs grow. The target outcome is practical energy independence with clear, data-backed choices.

Key takeaways

Keep kW and kWh straight. It prevents sizing errors and cost surprises.
Use STC for labels and NOCT for reality checks.
Confirm string VOC in the cold and charge currents at your chosen C-rate.
Pick ILR with intent, not by default.
Pair LiFePO4 with a capable BMS and hybrid inverter for safer, longer-lived storage.

Questions on a spec or quote? Send the label and climate data. A quick check on VOC, ISC, ILR, and usable kWh saves time and money.

Disclaimer

This page is for informational purposes only and does not constitute legal, financial, or engineering advice. Verify local codes, utility rules, and product datasheets before purchase or installation.

References

International Energy Agency (IEA) – Solar Energy Perspectives (2011). https://www.iea.org/reports/solar-energy-perspectives
International Renewable Energy Agency (IRENA) – 2022 Year in Review: Climate-driven Global Renewable Energy Potential, Resources and Energy Demand (2025). https://www.irena.org/Publications/2023/Dec/2022-Year-in-Review-Climate-driven-Global-Renewable-Energy-Potential-Resources-and-Energy-Demand
U.S. Energy Information Administration (EIA) – Solar explained. https://www.eia.gov/energyexplained/solar/
U.S. Department of Energy – Solar Energy Technologies Office (SETO). https://www.energy.gov/topics/solar-energy
DOE EERE Success Story – The Plug-and-Play Device That Streamlines Solar Cleaning (2020). https://www.energy.gov/eere/success-stories/articles/eere-success-story-plug-and-play-device-streamlines-solar-cleaning
NREL – General PV performance and capacity factor concepts (portal). https://www.nrel.gov/

Appendix: Micro-glossary for fast lookup

This micro Solar Energy Glossary covers frequent Solar Concepts and Photovoltaic Terminology.

AC/DC: Alternating vs Direct Current.
BMS: Battery Management System.
BOS: Balance of System (non-module components).
Capacity factor: actual energy vs theoretical max if operated at nameplate 24/7.
Cycle life: cycles until a defined end-of-life capacity.
DoD/SoC: Depth of Discharge / State of Charge.
DNI/GHI: Direct Normal / Global Horizontal Irradiance.
ESS/BESS: (Battery) Energy Storage System.
FIT/FIP: Feed-in Tariff / Feed-in Premium.
ILR: Inverter Loading Ratio (DC/AC ratio).
IMP/VMP: Current/Voltage at maximum power.
ISC/VOC: Short-circuit current / Open-circuit voltage.
LCOE/LCOS: Levelized Cost of Electricity / Storage.
LiFePO4 (LFP): Lithium iron phosphate battery chemistry.
MPPT/PWM: Maximum Power Point Tracking / Pulse Width Modulation.
NOCT/STC: Nominal Operating Cell Temperature / Standard Test Conditions.
O&M: Operations and Maintenance.
PCS: Power Conversion System (bi-directional inverter/charger).
PMAX: Maximum power rating of a PV module.
PR: Performance Ratio.
