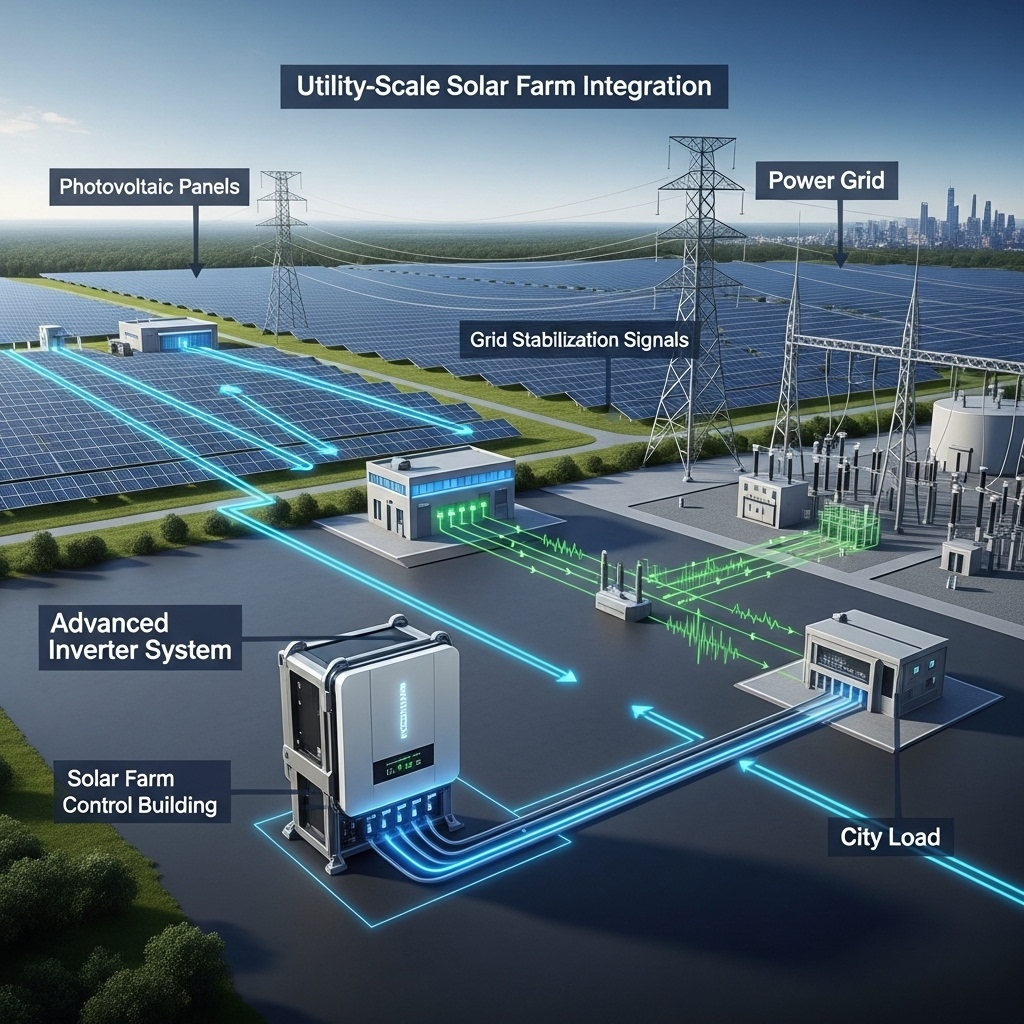

As solar energy becomes a larger part of our power generation mix, maintaining grid stability is a growing challenge. Traditional power grids relied on the physical inertia of large, spinning generators in conventional power plants to keep the system balanced. Utility-scale PV plants, which use inverters to convert DC power to AC, do not inherently possess this stabilizing quality. This raises a critical question: can advanced inverter topologies, specifically Modular Multilevel Converters (MMC) and Cascaded H-Bridge (CHB) converters, provide the stability needed for a renewable-dominated grid?
The Grid Stability Challenge with Large-Scale Solar
The transition from synchronous machines to inverter-based resources (IBRs) fundamentally changes how the grid operates. This shift requires a new approach to ensuring the network remains reliable under all conditions.
From Synchronous Machines to Inverter-Based Resources
Synchronous generators have spinning mass, which provides inertia. This inertia naturally resists changes in grid frequency, acting as a shock absorber during sudden shifts in supply or demand. PV inverters are power electronic devices and lack this physical inertia. As a result, grids with high levels of solar penetration can experience faster and more severe frequency deviations, a problem related to the Rate of Change of Frequency (RoCoF). According to a report from IRENA, stability protocols need to be redesigned as power systems move from synchronous machines to inverter-based generation. This redesign is essential to manage a system with fundamentally different physical characteristics.
Key Stability Issues in PV-Dominant Grids
High concentrations of solar power can introduce several stability concerns. These include voltage fluctuations caused by intermittent cloud cover, frequency instability from the lack of inertia, and challenges in 'riding through' grid faults without disconnecting. The IEA notes that at high shares of variable renewable energy, smart inverters can play an important role in facilitating integration by providing ancillary services that were once the exclusive domain of conventional power plants.
Understanding Advanced Inverter Topologies: MMC and CHB
MMC and CHB represent a significant step forward in inverter design. Their unique architectures offer capabilities far beyond those of traditional inverters, making them ideal candidates for addressing grid stability.
What is a Modular Multilevel Converter (MMC)?
An MMC is built from multiple, nearly identical sub-modules or cells connected in series. By selectively switching these cells on and off, the converter can generate a high-quality, stepped AC waveform that closely resembles a pure sine wave. This modularity is a key advantage, allowing MMCs to be easily scaled for high-voltage applications. Their design also results in very low harmonic distortion, reducing the need for bulky and expensive filters.
How Does a Cascaded H-Bridge (CHB) Converter Work?
A CHB topology also uses a series of connected cells, but in this case, each cell is a full H-bridge inverter. A significant benefit for solar applications is that each H-bridge can be connected to its own isolated DC source—such as a single panel or a small group of panels. This allows for distributed Maximum Power Point Tracking (MPPT), which maximizes energy yield from the entire array, even if some panels are shaded or mismatched.
MMC vs. CHB: A Comparative Look for PV Applications
While both topologies are modular, they have distinct features that make them suitable for different aspects of utility-scale PV. Understanding these differences helps in selecting the right technology for a specific project.
| Feature | Modular Multilevel Converter (MMC) | Cascaded H-Bridge (CHB) |
|---|---|---|
| Modularity | High; based on identical sub-modules | High; based on H-bridge cells |
| Voltage Scalability | Excellent; easily scales to high and medium voltage levels | Excellent; scales by adding more cells in series |
| DC Source Requirement | Typically requires a common DC bus | Requires isolated DC sources for each cell (ideal for PV) |
| Control Complexity | High, requires balancing voltages across all sub-modules | High, requires control of many individual cells |
| Fault Ride-Through | Good intrinsic capabilities | Excellent, with cell-level control |
How MMC and CHB Enhance Utility-Scale PV Stability
The true value of these advanced topologies lies in their ability to provide active grid support. They can be controlled to behave like synchronous generators, offering services that are critical for a stable grid.
Providing Synthetic Inertia and Fast Frequency Response
Through sophisticated control algorithms, both MMC and CHB inverters can emulate inertia. They can automatically inject or absorb active power in response to frequency deviations, slowing down the rate of change and giving the broader system time to respond. This 'synthetic inertia' is a critical function for preventing instability in low-inertia grids. This capability transforms renewable resources into active participants in grid stability.
Advanced Reactive Power and Voltage Control
MMC and CHB inverters offer fast and precise control over reactive power (Volt-VAR control). This allows them to manage grid voltage dynamically, injecting reactive power to boost voltage when it sags and absorbing it when it rises too high. This rapid response helps maintain voltage stability, especially on long transmission lines or in areas with high PV penetration where voltage fluctuations can be a problem.
Improving Fault Ride-Through and Grid Support
Modern grid codes require renewable energy plants to remain connected during grid disturbances and support the network's recovery. The modular nature of MMC and CHB inverters provides excellent fault ride-through capabilities. If some sub-modules fail, they can be bypassed without taking the entire inverter offline. Furthermore, their ability to provide grid-forming functions is a key enabler for system-wide resilience. As noted in an IRENA publication on grid codes, resources with active power controllability and storage with grid-forming inverters are an important enabler for VRE-based black-start plans.
Practical Implementation and Future Outlook
While the technical benefits are clear, bringing these technologies to the forefront of utility-scale PV involves addressing certain challenges and leveraging complementary technologies like energy storage.
System Integration and Control Challenges
The primary challenge lies in the complexity of the control systems. Coordinating hundreds or even thousands of individual sub-modules in real-time requires significant processing power and highly reliable communication networks. As the technology matures, standardized control platforms and advanced software are making this more manageable.
The Role of Energy Storage Integration
Pairing these advanced inverters with battery energy storage systems (BESS) unlocks their full potential. A U.S. Department of Energy report highlights that as more variable renewables are deployed, energy storage can help stabilize the electric grid. Integrating BESS allows the inverter to provide sustained power for frequency and voltage support, not just momentary responses. Optimizing this pairing requires a deep understanding of system performance. For example, the Ultimate Reference for Solar Storage Performance offers crucial data on how factors like C-rate and depth of discharge affect the system's ability to deliver these demanding grid services.
The Path to Widespread Adoption
The adoption of MMC and CHB in utility-scale solar is driven by evolving grid codes that increasingly mandate advanced grid-support functions. As the cost of power electronics continues to fall and the need for grid stability grows more acute, these topologies are moving from niche applications to mainstream solutions for large-scale renewable integration.
A Forward-Looking Perspective
MMC and CHB inverter topologies are powerful tools for building a stable, reliable grid powered predominantly by renewable energy. They provide the synthetic inertia, voltage control, and fault-response capabilities that were once exclusive to conventional power plants. By transforming PV plants from simple energy producers into active grid stabilizers, these technologies are not just enabling more solar power—they are making the entire grid more resilient and paving the way for a fully decarbonized energy future.
Frequently Asked Questions
Are MMC and CHB inverters commercially available for solar projects today?
While they are more established in high-voltage DC (HVDC) transmission and large motor drives, their application in utility-scale solar is an emerging and rapidly developing field. Several pilot projects are underway, and commercial offerings are becoming more common as grid stability requirements increase.
What is the main difference between a traditional string inverter and a CHB inverter?
A traditional string inverter connects to multiple solar panels in series (a string) and performs Maximum Power Point Tracking (MPPT) for the entire string. A CHB inverter uses multiple individual cells, each often connected to a smaller set of panels, allowing for distributed MPPT. This modularity improves energy harvest and provides a much higher quality voltage output.
Do these advanced inverters eliminate the need for battery storage?
Not entirely. While MMC and CHB inverters provide crucial grid-stabilizing functions like synthetic inertia and reactive power control, they cannot store large amounts of energy for long durations. Battery storage is still essential for energy shifting (e.g., storing solar energy for nighttime use) and providing sustained power during extended grid events. The two technologies are highly complementary.
