Salt Spray & Corrosion in Marine Use

The open water offers a sense of freedom, but it also presents a harsh reality for any electronic equipment. The same salt-laden air and constant moisture that define the marine environment are relentless adversaries to metal components. For solar panels, inverters, and energy storage systems, this corrosive atmosphere is a primary cause of premature failure, diminished performance, and safety concerns.

Understanding the dynamics of salt spray corrosion is not just an academic exercise; it is fundamental to building a reliable and long-lasting energy system for your boat, coastal home, or offshore application. This guide provides a detailed look into why corrosion occurs, how to identify equipment built to withstand it, and the practical steps you can take to protect your investment and ensure your energy independence.

The Science of Salt Spray Corrosion

Corrosion is a natural process, but in marine settings, it operates on an accelerated timeline. The combination of moisture, oxygen, and salt creates a highly conductive electrolyte that aggressively attacks metals.

What is Salt Spray Corrosion?

At its core, salt spray corrosion is an electrochemical reaction. When salt water settles on a metal surface, it creates a micro-galvanic cell, speeding up the process commonly known as rust. The chloride ions in salt are particularly aggressive; they penetrate the natural protective oxide layers that form on metals like aluminum, exposing the raw material underneath to rapid degradation.

This process can manifest in several ways, including uniform rust, pitting (small, localized holes), and one of the most insidious forms in a multi-component system: galvanic corrosion. Galvanic corrosion happens when two different metals are in electrical contact in the presence of an electrolyte. The less noble, or more reactive, metal will corrode preferentially to protect the more noble metal. This is why you must Stop galvanic corrosion: fasteners for portable solar at sea by carefully selecting compatible materials for every screw and bolt.

Why Marine Environments Are Uniquely Challenging

A marine environment is more than just salty air. It's a combination of factors that work together to break down materials:

• Constant Humidity: High moisture levels ensure that surfaces are frequently damp, providing the electrolyte needed for corrosion to occur.
• Salt Deposition: Wind carries salt spray far from the water's edge, depositing a corrosive film on all exposed surfaces.
• UV Radiation: Intense sunlight can degrade protective coatings like paints and plastics, creating openings for salt and moisture to penetrate.
• Physical Stress: The motion of a vessel and the force of wind and waves can cause micro-abrasions and stress points in materials, making them more susceptible to corrosion.

Protecting Your Equipment: Materials and Design Matter

The first line of defense against marine corrosion is built into the product itself. Thoughtful material selection and robust design are non-negotiable for equipment intended for marine use. From solar panel frames to battery enclosures, every component must be chosen with durability in mind.

Choosing the Right Materials

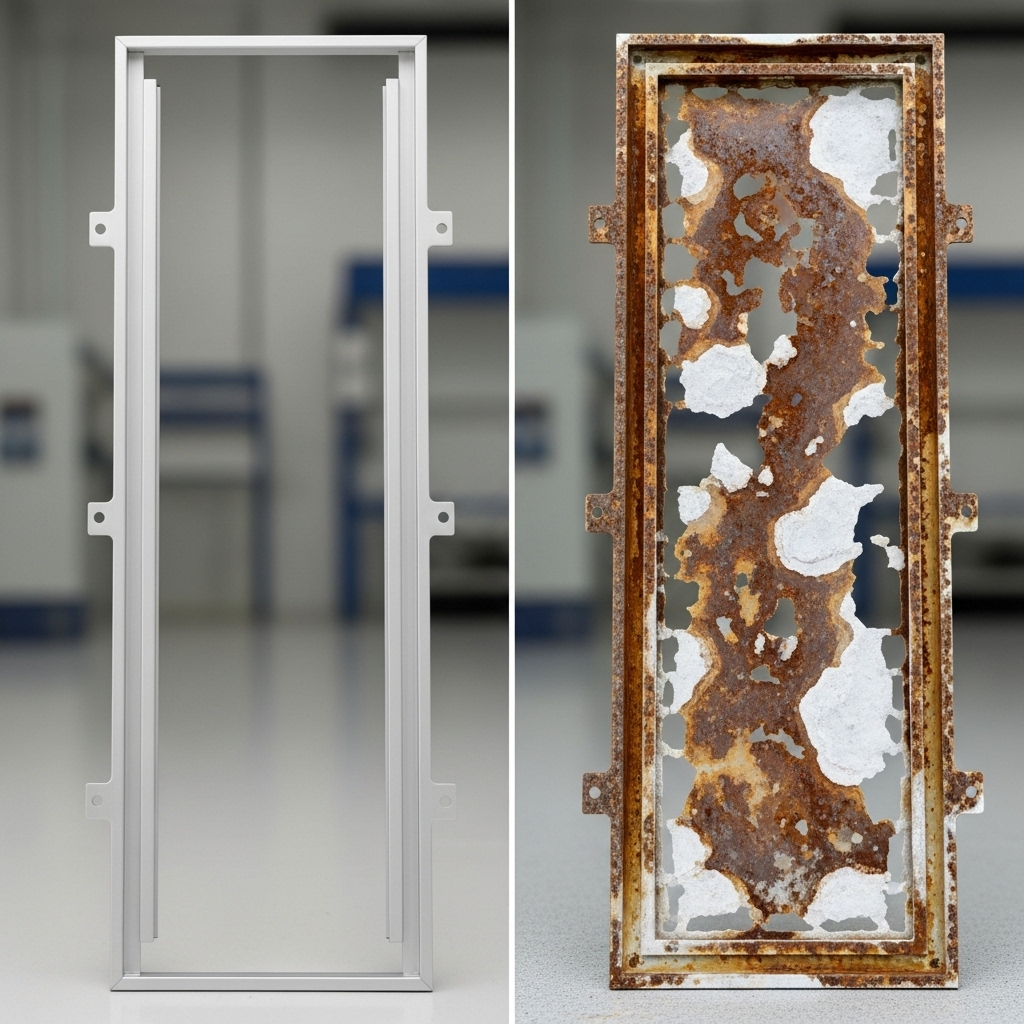

Not all metals are created equal when facing saltwater. Manufacturers have several options for building corrosion-resistant equipment. The debate over Stainless vs marine aluminum: frames for portable solar at sea is a perfect example, as each has its benefits. Marine-grade aluminum alloys and certain types of stainless steel are common choices. Additionally, specialized coatings can dramatically improve durability. You can learn more about the 7 coatings and alloys resist sea spray corrosion for portable PV that are leading the industry.

Material	Corrosion Resistance	Common Use	Considerations
Anodized Aluminum	Good to Excellent	Solar Panel Frames, Mounting Racks	Anodized layer provides a hard, protective shell. Scratches can compromise protection.
316 Stainless Steel	Excellent	Fasteners, Brackets, Critical Hardware	Higher resistance to pitting corrosion than 304 stainless steel due to molybdenum content.
Galvanized Steel	Good	Mounting Structures	A zinc coating acts as a sacrificial layer. Can be heavy.
UV-Resistant Polymers	Excellent	Junction Boxes, Enclosures, Cable Glands	Immune to galvanic corrosion but must be rated for UV stability to avoid becoming brittle.

The Critical Role of Enclosures and Housings

For complex electronics like inverters and battery systems, the enclosure is the most critical barrier. A well-designed housing prevents salt mist and moisture from ever reaching the sensitive components inside. This is where Ingress Protection (IP) ratings become essential. An IP rating consists of two numbers: the first indicates protection against solids (like dust and salt crystals), and the second indicates protection against liquids. For marine applications, a rating of IP65 or higher is recommended to ensure protection against water jets from any direction. For equipment that might face submersion, IP67 or IP68 is necessary.

This is particularly true for energy storage. As one analysis points out, it's a case of Myth vs reality: salt air won’t ruin LiFePO4, bad enclosures do. The lithium iron phosphate (LiFePO4) cells themselves are sealed and stable, but the battery management system (BMS) and terminals are vulnerable. Our high-performance LiFePO4 batteries and integrated Energy Storage Systems (ESS) are built with this principle at the core, utilizing robust, sealed enclosures to protect the entire system and deliver reliable power in harsh conditions.

Testing and Standards for Marine-Ready Equipment

How can you be sure a product will stand up to the marine environment? Reputable manufacturers validate their claims through standardized testing. These accelerated tests simulate years of harsh exposure in a matter of days or weeks, providing clear data on a product's durability.

Understanding Salt Spray Testing (ASTM B117)

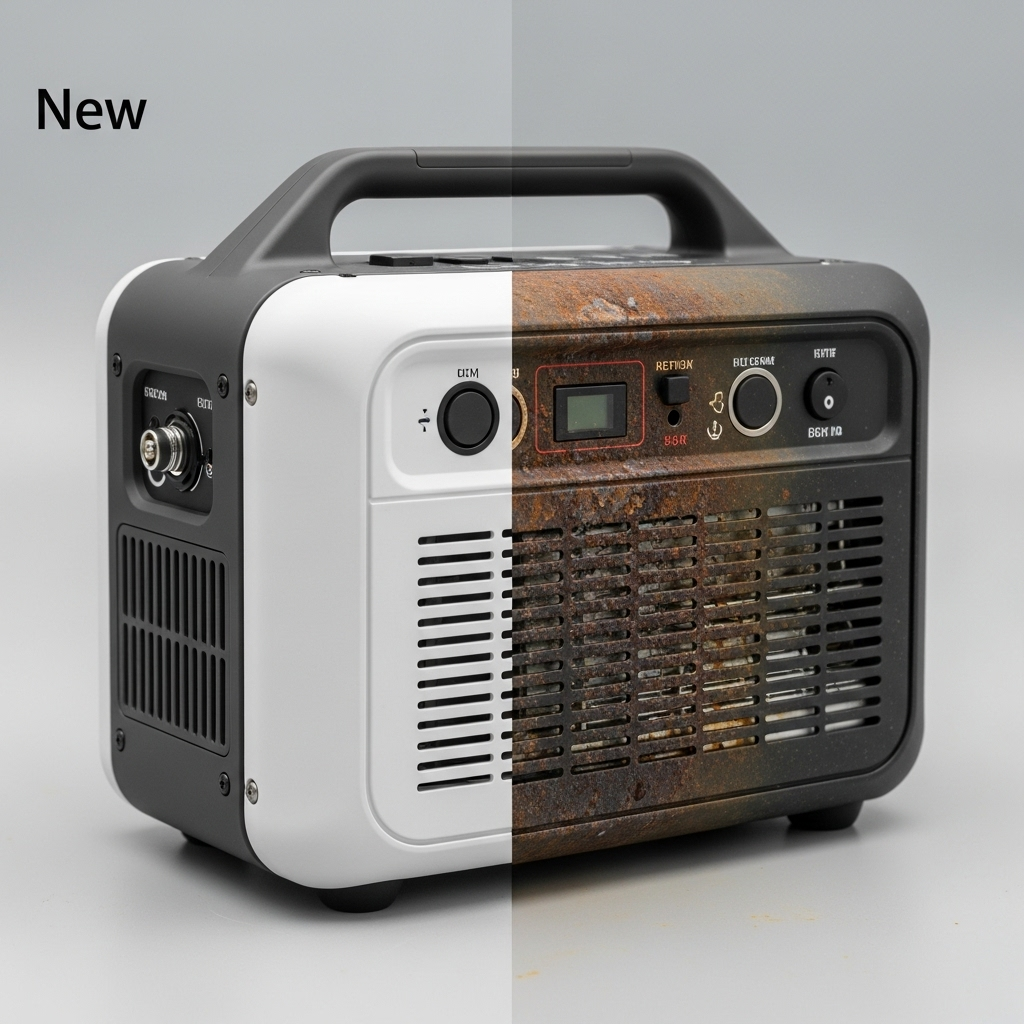

The most common and globally recognized standard is ASTM B117. In this test, a product is placed inside a sealed chamber and exposed to a continuous, dense salt fog at an elevated temperature (+35°C). The test runs for a specified number of hours—from 24 to over 1000—and technicians periodically inspect the item for signs of corrosion, such as rust, pitting, or coating failure. Passing a rigorous ASTM B117 test is a strong indicator of a product's ability to survive long-term in a high-salinity environment.

Key Certifications and Standards to Look For

Beyond a single test, several standards signal that a product is designed for durability. The IEC 60068-2-11 standard, for example, is another salt mist test used to verify the quality of a metallic material, with or without corrosion protection. When you see these certifications, you know the product has been subjected to independent, repeatable testing. You can learn more about the Which safety standards matter for marine portable solar? in our detailed article. For an in-depth look at how these standards apply, our Ultimate guide: IP67 ratings and ASTM B117 for mobile solar provides a complete overview.

Practical Strategies for Long-Term Reliability

Choosing the right equipment is the most important step, but proper installation and maintenance are essential for maximizing its lifespan. Many system failures are not due to a faulty product but to preventable mistakes.

Proactive Maintenance and Inspection

A simple yet effective routine can make a huge difference:

• Regular Freshwater Rinses: Periodically washing your solar panels and enclosures with fresh water removes accumulated salt deposits, stopping the corrosive process before it can cause significant damage.
• Visual Inspections: Regularly check for any bubbling paint, surface rust, or white crystalline deposits, especially around fasteners and seams. Catching these early allows for corrective action.
• Check Seals and Connections: Ensure that all junction box covers, cable glands, and enclosure seals are tight and free of cracks or degradation.

Common Mistakes to Avoid

Even the best equipment can be compromised by poor practices. Being aware of the 10 salt corrosion mistakes that kill portable solar on boats fast can save you significant time and money. Simple errors like using the wrong fasteners, failing to seal cable entries, or scratching a protective coating can create a weak point for corrosion to take hold. Learning How to shield portable solar from salt spray corrosion involves both buying right and installing right.

Ultimately, the question of Are your boat-ready solar panels truly corrosion-proof? comes down to a combination of quality manufacturing and diligent ownership. No material is completely "proof" against corrosion indefinitely, but high-quality, corrosion-resistant equipment can provide decades of reliable service.

Building a Resilient Marine Energy System

Achieving energy independence on the water requires a holistic approach. It's not enough to have a corrosion-resistant solar panel if the battery terminals corrode or the inverter fails due to moisture ingress. A truly resilient system is one where every component is selected for marine durability.

This is the philosophy behind our integrated solutions. We provide reliable and scalable energy systems, starting with high-performance LiFePO4 batteries housed in properly sealed, corrosion-resistant enclosures. Our complete off-grid solar solutions and ESS units are designed so that the solar panels, inverter, and storage work together seamlessly, with each component built to withstand the rigors of the marine environment.

Protecting your system from corrosion is the first step toward ensuring its long-term health. Environmental resilience directly impacts electrical performance. For instance, a corroded connection increases resistance, which reduces power output and can negatively affect the key metrics of system health. By preventing corrosion, you are safeguarding the very foundation of your system's performance, a topic explored further in our Ultimate Reference for Solar & Storage Performance.

Your Path to Energy Independence at Sea

Salt spray corrosion is a formidable challenge, but it is a manageable one. By arming yourself with knowledge, you can make informed decisions about the equipment you choose. Prioritize products from manufacturers who are transparent about their materials and provide proof of third-party testing like ASTM B117. Combine that with proper installation and a simple maintenance routine.

By doing so, you can build a robust and reliable solar and storage system that will power your marine adventures for years to come. You can achieve true energy independence, confident that your system is built to last, even in the face of the relentless sea.

Disclaimer: This article is for informational purposes only and does not constitute professional engineering or legal advice. Always consult with a qualified professional for your specific needs.
