Connector Wear & Replacement

Connectors are tiny parts with big impact in solar and energy storage systems. A worn plug can raise contact resistance, heat up, trip protection, and waste energy. This reference gathers field-proven checks, safe replacement steps, and lifecycle tactics to keep PV strings and ESS packs running reliably. It blends practical tips with standards-based methods and points to deeper reads for specific cases.

Why connector wear matters in PV and ESS

In PV arrays, DC current can run for years without interruption. In ESS racks, charge and discharge cycles drive thermal expansion. These conditions stress contacts. Small increases in milliohms cascade into heat rise, power loss, and in extreme cases, fire risk. Field O&M data also show that premature connector failure often aligns with high mating cycles, poor crimp quality, and harsh environments such as salt mist.

Global renewable rollouts heighten the value of robust balance-of-system hardware. Studies on solar deployment and O&M practices from IRENA and the IEA report that quality installation and monitoring reduce lifecycle costs and outages (see IRENA, Renewable Power Generation Costs in 2024; IEA, Integrating Solar and Wind). A simple practice like periodic connector inspection supports energy yield and safety.

Connector wear mechanisms and typical failure modes

Common connector families in solar and storage

• PV DC plugs (MC4-style) on modules, combiners, and portable panels.
• High-current DC power connectors for portable ESS and battery packs (APP-style and similar genderless plugs).
• Ring or fork lugs on busbars and battery terminals in rack ESS.

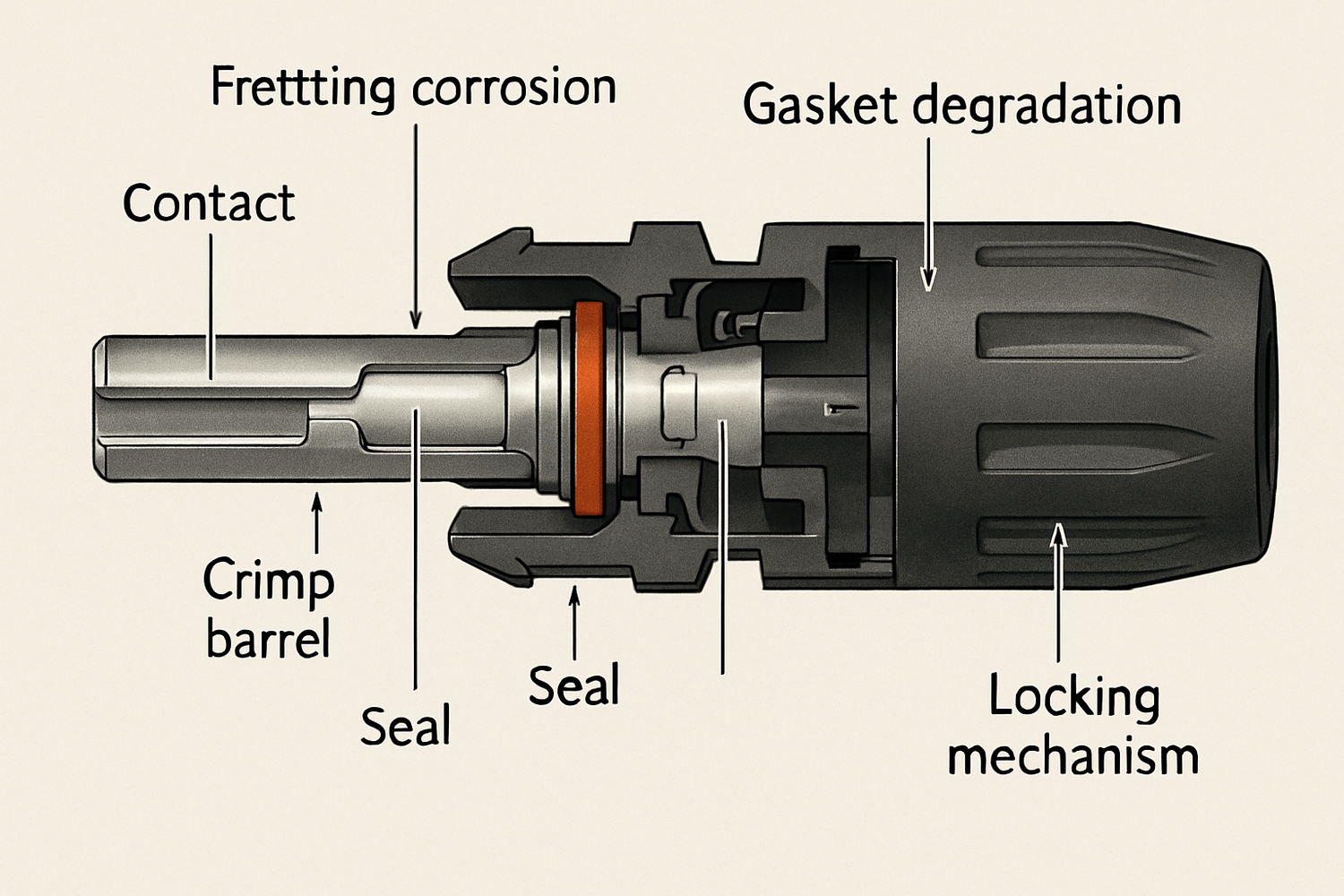

How wear develops

• Contact fretting and micro-motion: vibration and thermal cycling break oxide layers, raising resistance over time.
• Oxidation and corrosion: moisture ingress, salt mist, and pollutants attack plating. See Case Study: Salt-Mist Corrosion in APP Power Connectors.
• UV and heat: polymer housings embrittle, seals shrink, and strain relief fails.
• Poor termination: under-crimp, over-crimp, or mixed-metal solder joints crack or loosen. See Crimp vs Solder: Durable Terminations for LiFePO4 Packs.
• Overcurrent and derating gaps: connectors run hotter in high ambient or under direct sun. See Why Do Connectors Run Hot? Expert Answers and Fixes.

What “wear” looks like in the field

• Discoloration or sooting near the contact zone.
• Warped or brittle housings; cracked gland nuts.
• Loose latch fit; plugs that back out with slight tension.
• Green or white corrosion on metallic parts; sticky seals.
• Repeat arc-fault trips or localized hot spots on thermal scans.

For portable PV kits, start with the checklist in 9 Signs Your MC4 Connectors on Portables Need Replacement.

Diagnostics and troubleshooting you can trust

Non-invasive checks

• Visual inspection: cracks, discoloration, seal mis-seating, loose gland nuts.
• Tactile check: latch engagement and axial play; tug test on cable to confirm strain relief bite.
• Thermal scan under load: hot connectors indicate rising resistance. See Why Do Connectors Run Hot? Expert Answers and Fixes.

Electrical tests that pinpoint wear

• Voltage drop under load: measure mV across mated pair at known current. Use V = I × R to estimate contact resistance.
• Micro-ohm measurement (4-wire Kelvin): target low and stable values. Trend data over seasons.
• Insulation resistance: check housing and seal integrity with a suitable megohmmeter (within system ratings).

High contact resistance leads to efficiency loss and heat. Techniques in Stop Voltage Drop: Lower Contact Resistance Safely outline safe ways to bring values down.

Root-cause tips

• Localized heating on one side: suspect a poor crimp on that side.
• Both sides warm equally: check current derating and ambient temperature.
• Intermittent faults with movement: fretting or loose locking tabs.
• Ingress after storms: inspect seal compression and gland torque.

For a field workflow on portable rigs, see How to Diagnose Connector Wear in Portable Solar Rigs.

Lifecycle management: plan wear, avoid surprises

Mating cycles, failure rates, and recordkeeping

Mating cycles count. Repeated connect/disconnect wears plating and latches. Field evidence links higher failure rates to frequent cycling and contamination. See Field Data: Mating Cycles vs Failure Rates in PV Plugs for practical thresholds and inspection triggers.

• Log each mating cycle for portable kits.
• Record torque values, crimp die used, wire gauge, and installer ID.
• Assign connectors to strings and keep test histories.

Inspection intervals by environment

Harsh sites demand tighter schedules. This aligns with general O&M patterns in energy assets where routine monitoring and preventive maintenance cut risk and cost (IEA, IRENA).

Environment	Typical Interval	Focus Points
Dry inland	6–12 months	UV cracks, latch wear, torque of gland nuts
Coastal / salt-mist	3–6 months	Seal elasticity, green/white corrosion, contact resistance trend
Industrial pollution	3–6 months	Contaminant film on housings, IR hotspots, cleaning schedule
Portable rigs (frequent mating)	Monthly or every 50 cycles	Latch strength, plating wear, strain relief

For coastal cases, compare findings with Case Study: Salt-Mist Corrosion in APP Power Connectors.

Standards and compliance

PV DC connector work must respect the connector’s datasheet and the IEC framework. Replacement practices should meet the intent of IEC 62852 for PV connectors, including correct crimping, sealing, and IP rating retention. See Replacing PV Connectors to Meet IEC 62852 Safely.

How to replace a worn connector safely

Safety note and disclaimer: Work on energized DC circuits is dangerous. De-energize, lockout/tagout, verify absence of voltage, and wear suitable PPE. The steps below are practical information, not a substitute for local codes or a licensed electrician’s judgment.

Tools and setup

• Manufacturer-approved crimp tool and die for your connector series.
• Torque wrench or torque-limited spanner for gland nuts and terminals.
• Wire stripper with controlled strip length stop.
• Multimeter with low-resistance or 4-wire meter for contact checks.
• Heat gun (if heat-shrink backshells apply), cleaning swabs, isopropyl alcohol.
• New connector sets, seals, and the correct contact pins for the wire gauge.

Tool performance comparisons are summarized in Tool Test: Crimpers, Torque, and Gauges for Portable Solar.

Step-by-step: MC4-style PV connector

1. Isolate and verify: Open DC disconnects, cover modules, and confirm near-zero voltage at the work point.
2. Remove old plug: Release the latch with the proper unlock tool. Cut back the cable to bright copper, past any heat damage.
3. Prepare the cable: Strip to the datasheet length. Do not nick strands. Slide the gland nut and seal onto the cable in the correct order.
4. Crimp the contact: Insert strands fully into the contact barrel. Crimp with the specified die. Inspect for full hex imprint and no flaring.
5. Pull test: Apply a gentle tensile pull (example target 50–80 N for 4–6 mm², as per connector spec). No movement should occur.
6. Assemble: Insert the crimped contact into the housing until it clicks. Seat the seal. Tighten the gland nut with a torque tool to the manufacturer’s range.
7. Verify polarity and mate: Confirm male/female ends match system polarity. Mate the pair until full latch engagement.
8. Test: Measure voltage drop under a known load. Record contact resistance and IR image during commissioning.

These steps align with the methods in Replacing PV Connectors to Meet IEC 62852 Safely.

Step-by-step: High-current APP-style plug for ESS portables

1. Isolate the battery: Power down the pack, wait for capacitors to discharge, and verify with a meter.
2. Crimp contacts: Use the prescribed die for the contact size (e.g., 10 AWG, 8 AWG). A double-indent or hex crimp is typical.
3. Inspect and test: Check for full wire insertion, no stray strands, and perform a pull test suited to the wire size.
4. Insert into housing: Push each contact into the housing until the retention spring clicks in place.
5. Strain relief: Add a boot or clamp to prevent cable flex at the housing entrance.
6. Load check: Under moderate current, confirm the connector remains cool to touch and shows low mV drop.

Quality targets and typical values

Always defer to the datasheet. The table below lists common ranges seen in PV work for context only.

Parameter	Typical Range in PV Work	Notes
MC4 gland torque	~2.5–3.5 N·m	Set by connector brand and cable OD
Contact resistance (mated pair)	< 1 mΩ	Trend, not a single absolute cutoff
Crimp pull test (4–6 mm²)	≥ 50–80 N	Per terminal spec
Max conductor temp	85–105 °C	Depends on insulation rating
Ingress rating target	IP67/68	Verify seal compression

Claims around IP ratings can mislead. See Myth vs Reality: IP67 Ratings on Portable PV Connectors for seal limits and aging effects.

Design choices that slow wear

Terminations: crimp vs solder

A controlled crimp with the right die produces a gas-tight joint and stable resistance. Solder can wick, stiffen the conductor, and create a stress riser at the wire edge. For LiFePO4 packs, the evidence favors crimping, with solder reserved for specific, validated cases. See Crimp vs Solder: Durable Terminations for LiFePO4 Packs.

Current, temperature, and derating

• Size for lower temperature rise: use ample wire gauge and connectors with current headroom.
• Reduce direct sun on connectors; tuck under module frames where safe.
• Split current across more strings to keep each plug cooler.

Mechanical protection

• Strain relief that actually grips the jacket, not just the insulation.
• UV-stable housings and boots; avoid tight bend radii exiting the plug.
• Bulkhead connectors to avoid frequent mating on internal terminals.

Ingress control and myths

IP67/68 ratings apply under controlled lab conditions. Aging seals, dust, and cable od can change real protection. Combine proper torque, clean mating surfaces, and periodic seal checks. See Myth vs Reality: IP67 Ratings on Portable PV Connectors.

Looking ahead

Higher-power ESS portables push connectors toward higher currents with compact footprints. Materials, plating, and latch designs are improving. Keep an eye on 2025 Trends: High-Current Connectors for ESS Portables for compatible parts and safe derating practices.

Troubleshooting matrix: symptoms to actions

Symptom	Likely Cause	Test	Action
Warm connector at modest current	High contact resistance from poor crimp	mV drop and 4-wire resistance	Replace contact and re-crimp with validated die
Latch disengages under light pull	Worn latch or mixed-brand pairing	Fit test on matched pair	Replace both halves with matched set
Corrosion visible after rains	Seal damage or wrong cable OD	Ingress check, IR scan after spray	Re-terminate with correct seal and torque
Arc-fault trips during wind	Intermittent contact due to fretting	Wiggle test under watch, scope capture	Replace and improve strain relief
Repeated failures near coast	Salt-mist attack on plating	Visual and resistance trend	Upgrade to corrosion-resistant parts; shorten intervals

ANERN systems: design for reliability and serviceability

ANERN builds LiFePO4 batteries, integrated ESS, off-grid kits, and solar inverters for diverse sites. The focus is reliability and scalability to help customers reach energy independence. Connector choices and harness design follow the same philosophy.

• Pre-crimped, tested harnesses for PV and battery interconnects to ensure consistent terminations.
• Clear labeling and service loops so technicians can access connectors without undue stress on cables.
• Accessory packs with spare seals, matched contacts, and documentation for field swaps.

For a home system, an ANERN ESS pairs LiFePO4 storage with a hybrid inverter and rooftop PV. PV strings use matched MC4-style plugs, and battery racks use torque-documented lugs. Off-grid solutions for farms or cabins ship with ruggedized connectors and routing guidance to keep plugs shaded and strain-free. This reduces wear and simplifies Connector Replacement during scheduled Maintenance.

Real-world maintenance patterns that work

Routine, preventive, and corrective actions

• Routine monitoring: weekly visual scans after storms; quick thermal passes during sunny hours.
• Preventive maintenance: re-torque gland nuts seasonally; refresh desiccant in junction boxes where used.
• Troubleshooting and small repairs: walk strings if power is abnormally low; check each connector along the path.
• Major rehabilitation: after flooding or mudslides, expect replacement of multiple connectors, some cables, and possibly inverter-side terminals.

These steps mirror proven O&M patterns in distributed energy systems where early, small fixes avoid larger outages. Public resources from the U.S. Department of Energy on solar safety and O&M offer additional context (energy.gov/topics/solar-energy).

Case snapshot: coastal off-grid cabin

A cabin near the shoreline ran two PV strings into a small ESS. The site saw salt spray and strong winds. Failures began with thermal alarms at connectors near the array edge.

• Action: replaced MC4-style pairs with fresh seals; improved strain relief; added shade to connector runs.
• Outcome: contact resistance dropped by half; no hot spots in the next summer season.
• Process change: set quarterly inspections and rinses with fresh water after storms, guided by Salt-Mist Corrosion insights.

Compliance and safety checkpoints

• Work to IEC 62852 intent for PV connectors and follow local electrical codes.
• Use matched connector halves from the same family and rating; avoid mixing styles.
• Document torque, crimp die, wire gauge, and test results for each replacement.
• Verify polarity and insulation resistance before energizing.

Training notes for field teams

• Hands-on crimp practice on scrap wire until pull tests pass consistently.
• IR camera basics: emissivity setting, background reflections, and safe distances.
• Environmental awareness: UV exposure, salt mist, and temperature cycling inform inspection plans.

Cost and risk context

Connector reliability supports production and safety. IRENA reports continued declines in solar generation costs, which heightens the value of keeping output steady through effective O&M. IEA analysis on integrating variable renewables stresses system strength and quality balance-of-system parts for stable operation. Investing time in correct terminations and scheduled inspections pays back in avoided faults and service calls.

Key takeaways

• Connector Wear usually starts small. Look for early signs and track resistance over time.
• Good terminations beat later fixes. Use the right dies, torque tools, and matched parts.
• Lifecycle Management hinges on the site environment and mating cycles. Tune your intervals.
• Troubleshooting with voltage drop and thermal scans finds trouble fast and safely.
• How to replace a worn connector is a teachable skill. Practice, document, and improve as a team.

For deeper details on portable rigs and high-current designs, use these reads: How to Diagnose Connector Wear in Portable Solar Rigs, 9 Signs Your MC4 Connectors on Portables Need Replacement, Connector Lifecycle Roadmap for Off-Grid Solar Kits, and 2025 Trends: High-Current Connectors for ESS Portables.

Safety disclaimer: This content is for technical information only and not legal or compliance advice. Always follow local codes, manufacturer instructions, and engage qualified electricians for high-risk work.
